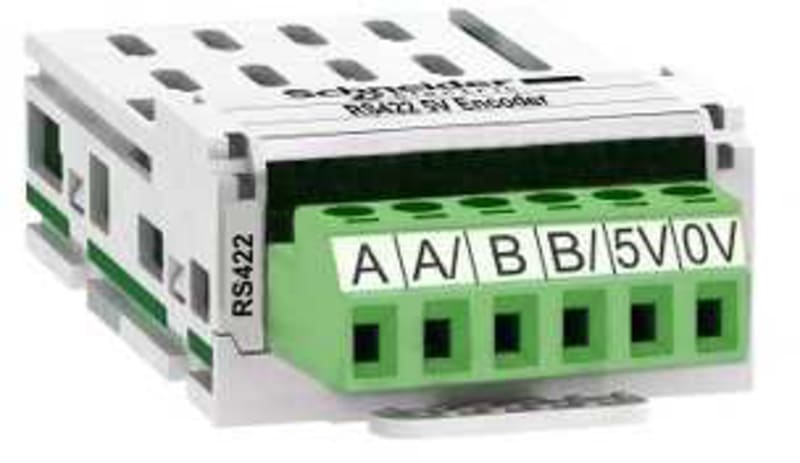

Schneider Electric speed monitoring module - RS422 - 5V VW3A3620

Schneider Electric VW3A3620 Speed control card for ATV320, cannot be used as Closed Loop.

Manufacturer part number (MPN)

VW3A3620

EAN / GTIN

3606480517259

Sales unit

pcs

Range of product

Altivar

Product or component type

Encoder interface module

Range compatibility

Altivar 32; Altivar Machine ATV320

[Us] rated supply voltage

5 V (voltage limits: 5…5.5 V)

Number of pulses per revolution

3600 for ATV32

Product compatibility

ATV32 (>= V1.8)

Protection type

Overload protection; Short-circuit protection

Maximum operating frequency

250 kHz

Input signal

TTL

Electrical connection

Terminal, connection capacity: 1.5 mm² (16 AWG), encoder, 200 mA

Product weight

0.3 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.700 cm

Package 1 Width

6.500 cm

Package 1 Length

9.000 cm

Package 1 Weight

55.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

96

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.071 kg

Country of origin

ID

Warranty (in months)

18

Type of accessory/spare p

HS Code

8537.10

• EAN 3606480517259
• SAP 1000740729
• Code 8403791
