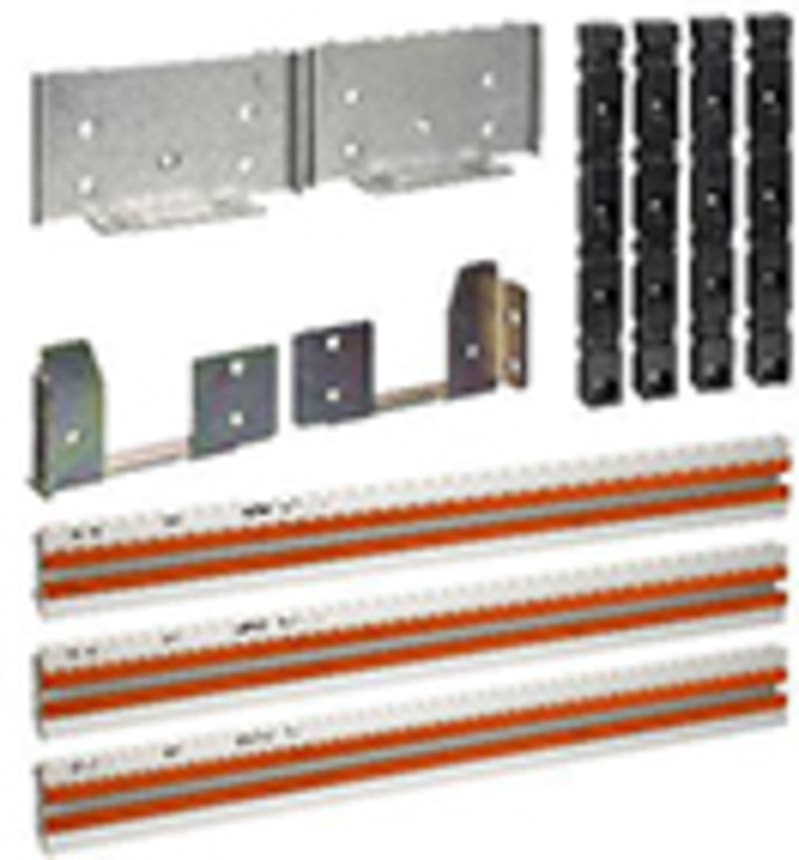

Connection Kit vert./hor. LGYE 2500A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04685 Connection Set for vertical/horizontal LGYE rails 2500A-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04685
- EAN / GTIN
- 3606481868091
- Sales unit
- pcs
- Rated current
- 2500 A
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connection
- Product name
- Linergy LGYE
- Accessory / separate part category
- Coupling accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy LGYE busbar
- Poles description
- 1P
- installation description
- Cubicle - width 650 mm
- Installed device
- Masterpact: fixed NW20...25 vertical installation - bottom connection; Masterpact: withdrawable NW20...25 vertical installation - bottom connection
- [Ie] rated operational current
- 2500 A
- Quantity per set
- Set of 1
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.5 cm
- Package 1 Width
- 14.8 cm
- Package 1 Length
- 23.0 cm
- Package 1 Weight
- 2.01 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 50
- Package 2 Height
- 40.0 cm
- Package 2 Width
- 80.0 cm
- Package 2 Length
- 120.0 cm
- Package 2 Weight
- 112.0 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- Yes
Standards & Compliance
- HS Code
- 7419.99
Cross References
- EAN 3606481868091
- SAP 1200547027
- Code 82879875
