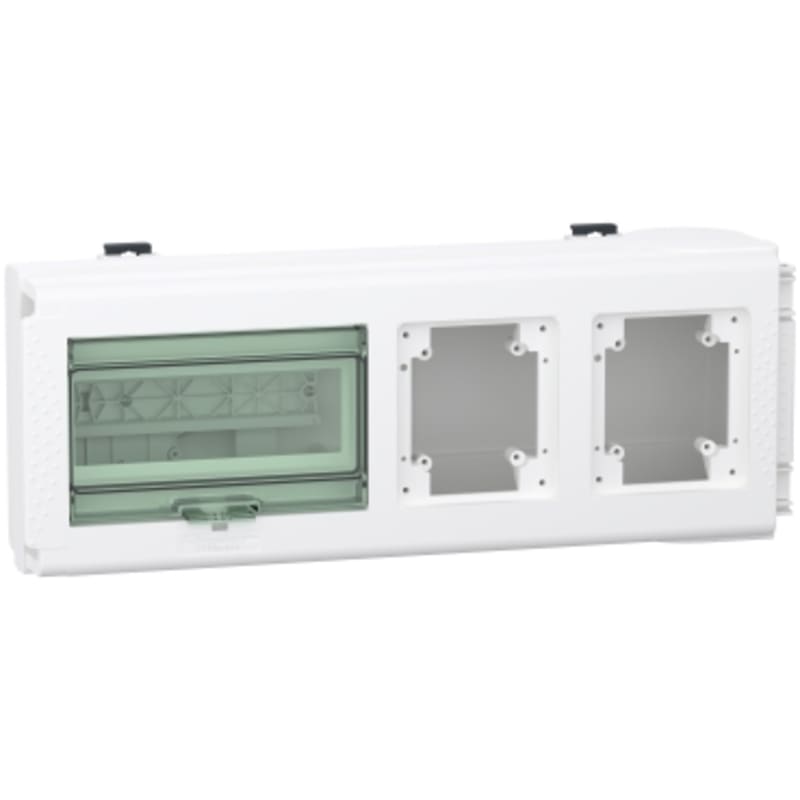

BOX 32A FOR Kaedra (KNB32CP)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KNB32CP Canalis KNB. Uttaksbokser for KNA rails.
Technical Specifications
- Manufacturer part number (MPN)
- KNB32CP
- EAN / GTIN
- 3606480006203
- Sales unit
- pcs
- Rated current
- 32 A
- Range of product
- Canalis
- Product name
- KN
- Product or component type
- Tap-off unit
- Product compatibility
- Modular device
- [Ie] rated operational current
- 32 A at 35 °C
- Tap-off unit socket description
- Free choice
- Tap-off unit 2nd socket description
- Free choice
- Tap-off unit polarity
- 3L+N+PE
- Provided equipment
- Blanking plate
- Colour
- White (RAL 9001)
- Device application
- Low power distribution; Power socket distribution
- [Ue] rated operational voltage
- 230...500 V depending on protective device
- [Uimp] rated impulse withstand voltage
- 6 kV
- [Ui] rated insulation voltage
- 400 V depending on protective device; 500 V depending on protective device
- Network frequency
- 50/60 Hz
- Protection type
- Without protection
- Tap-off unit disconnection mode
- By drawing out
- Standards
- IEC 60439-2; IEC 61439-6
- number of 18mm modules
- 8
- Width
- 434 mm
- Depth
- 95 mm
- Height
- 165 mm
- Product weight
- 2.7 kg
- Earthing system
- TT - busbar trunking; TN-S - busbar trunking; TN-C - busbar trunking; IT - busbar trunking; TT - tap-off unit; TN-S - tap-off unit; IT - tap-off unit
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 12.600 cm
- Package 1 Width
- 16.600 cm
- Package 1 Length
- 43.500 cm
- Package 1 Weight
- 1.412 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 46
- Package 2 Height
- 80.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 81.492 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- RAL-number
- 9001
- With locking
- No
- Protection
- None
- Number of conductors (without earthing)
- 4
- Phase selection
- Yes
- Number of poles
- 4
- Length
- 434 mm
- Degree of protection (IP)
- IP55
- Number of other socket outlets
- 2
- Branch off type
- Socket outlet
- Rated current AC 50 Hz
- 32 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480006203
- SAP 1000470805
- Code 8787974
Product Documentation
