Smartexit Activa 32M 3T IP40 LIFEPO4
Pricing
Request a quote
We reply within 24 hours
Product Description

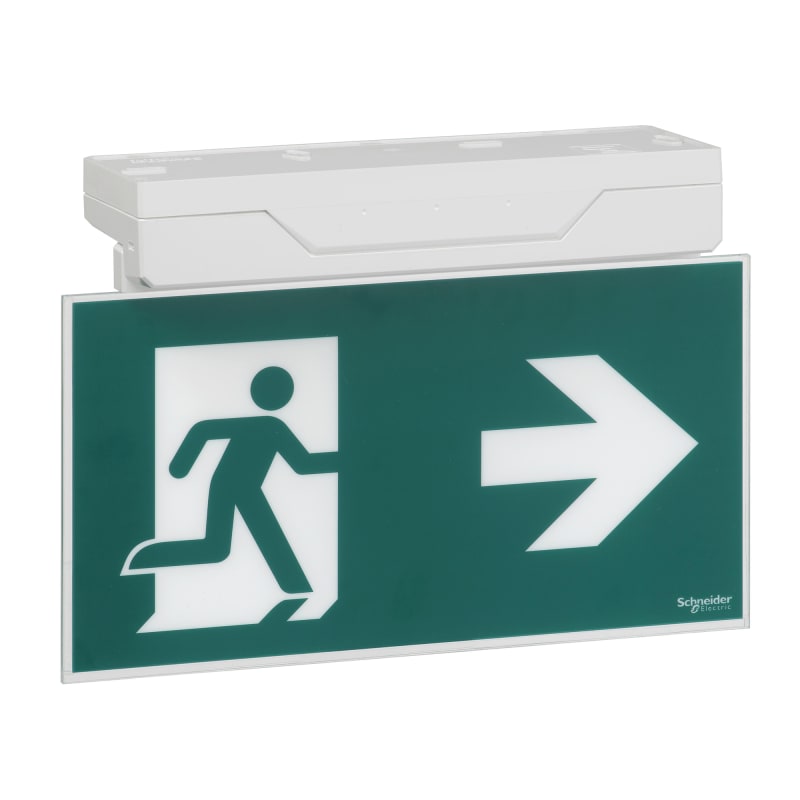

Schneider Electric OVA48407 Exiway Smartexit exit sign luminaire Activa, autotest, 32m, 3 t, IP40, LiFePO4, with piktogrammer.
Technical Specifications
- Manufacturer part number (MPN)
- OVA48407
- EAN / GTIN
- 3606481179494
- Sales unit
- pcs
- IP rating
- IP40
- Mounting method
- Wall surface mounting/ceiling surface mounting
- Function
- Escape route lighting/signage
- Suitable for labelling type
- Acrylic plate
- Type of indicator
- Single/double-sided
- Monitoring equipment
- Automatic self test
- Wiring system
- Continuous circuit/emergency circuit
- Power supply system
- Peripheral (individual battery)
- Battery technology
- Lithium-ion
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, opal
- Voltage type
- AC
- LED nominal current at constant current
- 120 mA
- Type of control gear
- LED operating device current-controlled
- Light distributor
- Diffuser lens/optic/panel
- Luminous flux in emergency mode
- 40 lm
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Degree of protection (IP)
- IP40
- Impact strength
- IK04
- Protection class according to IEC 61140
- II
- Max. system power
- 2.77 W
- Rated luminous flux according to IEC 62722-2-1
- 40 lm
- Luminous flux in standby mode
- 40 lm
- Recognition distance
- 32 m
- Width
- 230 mm
- Height/depth
- 45 mm
- Length
- 340 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Power consumption in emergency mode
- 2.77 W
- Emergency function monitoring system
- Automatic self test
- Type of lithium-ion battery
- Lithium iron phosphate (LiFePO4)
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8531.10
Cross References
- EAN 3606481179494
- SAP 1200449831
- Code 82502714
Product Documentation
