Automatic reclosing ARA IC60 1-2P

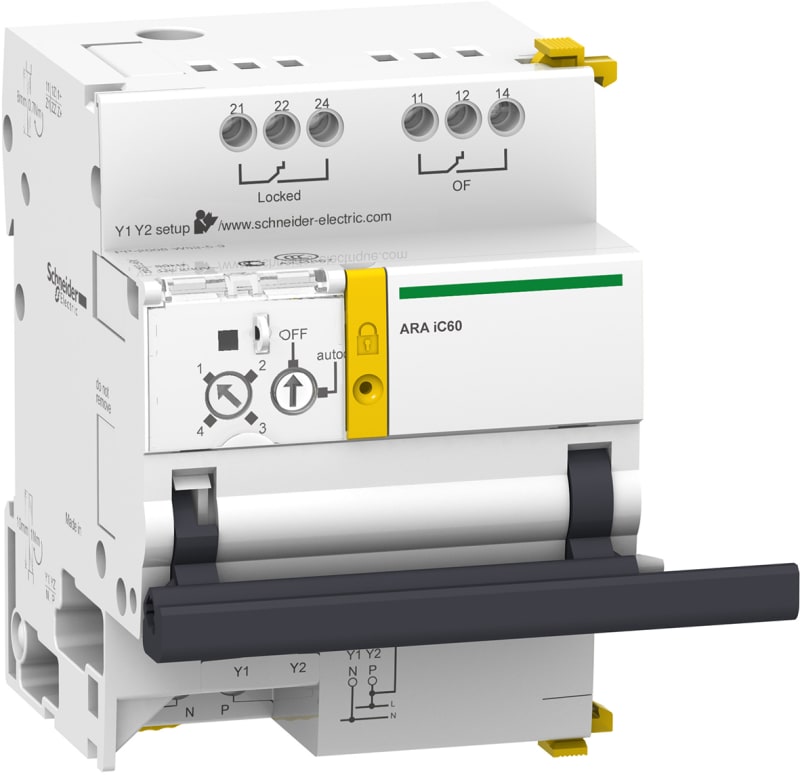

Schneider Electric A9C70132 Automatic reclosing ARA iC60 1-2P.

Manufacturer part number (MPN)

A9C70132

EAN / GTIN

3606480097980

Sales unit

pcs

Package quantity

14 pcs

Number of poles

2

range of product

Acti9

Product or component type

Automatic recloser auxiliary

Device short name

ARA iC60

Signal contacts composition

2 OF volt-free contacts

Signalling circuit voltage

24 V 10 mA AC/DC; 230 V 1 A AC

Control type

Inhibition of automatism maintained 230 V AC 50/60 Hz; Ultimate reclosing impulse 230 V AC 50/60 Hz

Input current

5 mA

Impulse duration

>= 200 ms control circuit

Response time

< 500 ms

[Us] rated supply voltage

230 V AC 50/60 Hz

Power consumption in W

2 W

[Ui] rated insulation voltage

400 V

[Uimp] rated impulse withstand voltage

6 kV

Value of setting

Program 1: 1 reclosing attemp, short cycle <10 s before reclosing /6 min check time; Program 2: 3 reclosing attemps, short cycle <10 s before reclosing /2 min check time; Program 2: 3 reclosing attemps, short cycle <1 min before reclosing /6 min check time; Program 2: 3 reclosing attemps, short cycle <3 min before reclosing /6 min check time; Program 3: 5 reclosing attemps, long fixed cycle <10 s before reclosing /2 min check time; Program 3: 5 reclosing attemps, long fixed cycle <1 min before reclosing /6 min check time; Program 3: 5 reclosing attemps, long fixed cycle <3 min before reclosing /6 min check time; Program 4: 5 reclosing attemps, long progressive cycle <10 s before reclosing /2 min check time; Program 4: 5 reclosing attemps, long progressive cycle <1 min before reclosing /6 min check time; Program 4: 5 reclosing attemps, long progressive cycle <3 min before reclosing /8 min check time; Program 4: 5 reclosing attemps, long progressive cycle <4 min before reclosing /10 min check time; Program 4: 5 reclosing attemps, long progressive cycle <5 min before reclosing /12 min check time

Local signalling

Flashing orange LED: not operational; Flashing green LED: normal operation; Flashing red LED: reclosing cycle in progress; Fixed red LED: automatic recloser locked

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

NO

9 mm pitches

7

Height

93 mm

Width

63 mm

Depth

75.5 mm

Product weight

440 g

Colour

White

Electrical durability

5000 cycles

Provision for padlocking

Padlockable

Wire stripping length

Power supply: 10 mm for bottom connection; Input: 10 mm for bottom connection; Output: 8 mm for top connection

Tightening torque

Power supply: 1 N.m; Input: 1 N.m; Output: 0.7 N.m

Range compatibility

Acti9 iC60

Product compatibility

2P iC60; 1P + N iC60; 1P iC60

IP degree of protection

IP20 conforming to IEC 60529

Pollution degree

3 conforming to IEC 60947

Overvoltage category

II

Tropicalisation

2

Relative humidity

93 % at 40 °C

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

14

Warranty (in months)

18

Function

Remote turn-on switch

Voltage type

AC

Rated voltage

230 V

Installed at the factory

No

Width in number of modular spacings

3.5

Rated switch current

1 A

Device fitting

Miniature circuit breaker (MCB)

Additional equipment

Remote turn-on switch

Voltage type for actuating

AC

Number of contacts as normally closed contact

2

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

2

Suitable for max. current main contact unit

63 A

Country of origin

Spain

HS Code

8536.50
