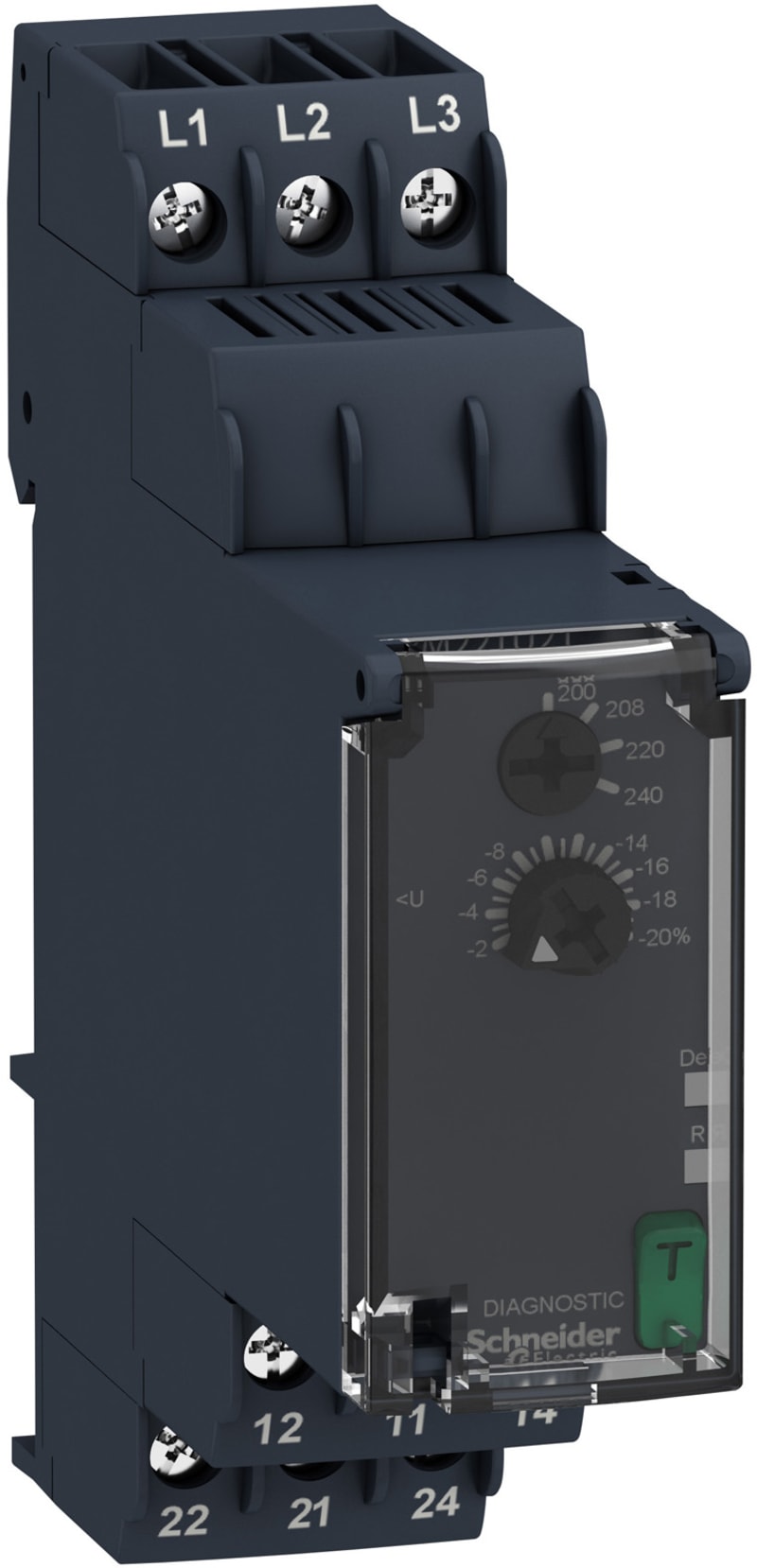

Schneider Electric Modular 3-phase control relay, 8 A, 2 CO, 200…240 V AC RM22TU21

Schneider Electric RM22TU21 Zelio control relay, undervoltage.

Manufacturer part number (MPN)

RM22TU21 EAN / GTIN: 3606480792168 Sales unit: pcs Package quantity: 40 pcs Range of product: Harmony Control Relays Relay type: Control relay Product or component type: 3-phase control relay Relay name: RM22TR Control type: With test button Relay monitored parameters: Undervoltage detection; Phase sequence; Phase failure detection Contacts type and composition: 2 C/O Supply voltage limits: 160…288 V AC supply voltage frequency: 50...60 Hz +/- 10 % Measurement range: 200...240 V voltage AC Voltage detection threshold: < 100 V AC Threshold adjustment voltage: 2...20 % of Un selected Setting accuracy of the switching threshold: +/- 10 % of the full scale Repeat accuracy: +/- 0.5 % for input and measurement circuit Measurement error: < 1 % over the whole range with voltage variation; < 0.05 %/°C with temperature variation Time delay type: Without Setting accuracy of time delay: 10 % Reset time: 1500 ms at maximum voltage Response time: <= 300 ms Output cont

HS Code

8536.49

• EAN 3606480792168
• SAP 1000713427
• Code 8679377
