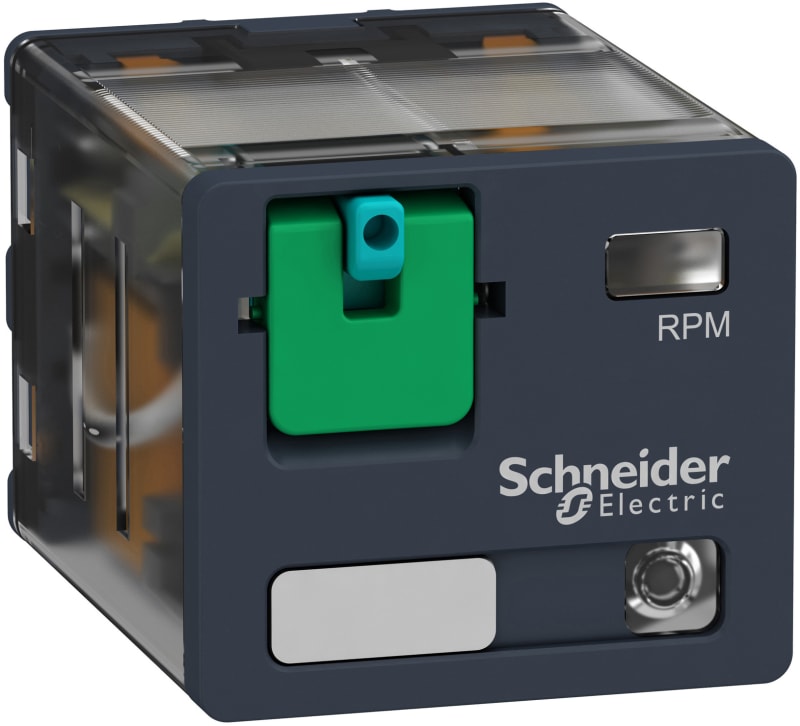

Schneider Electric Power plug-in relay, 15 A, 3 CO, with LED, 24 V DC RPM32BD

Schneider Electric RPM32BD Zelio Effektrele - 3CO LED 24VDC.

Manufacturer part number (MPN)

RPM32BD EAN / GTIN: 3389119402057 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Voltage: 24 V DC Range of product: Harmony Electromechanical Relays Series name: RPM series Product or component type: Plug-in relay Contacts type and composition: 3 C/O Relay type: Power relay status LED: With [Uc] control circuit voltage: 24 V DC minimum switching capacity: 170 mW at 10 mA, 17 V Release time: 20 ms at nominal voltage Ambient air temperature for operation: -40…55 °C [Ithe] conventional enclosed thermal current: 15 A at -40…55 °C Control type: Lockable test button [Ie] rated operational current: 15 A at 277 V (AC) conforming to UL; 15 A at 28 V (DC) conforming to UL; 15 A at 250 V (AC) NO conforming to IEC; 15 A at 28 V (DC) NO conforming to IEC; 7.5 A at 250 V (AC) NC conforming to IEC; 7.5 A at 28 V (DC) NC conforming to IEC Degree of protection (Housing only): IP40 conforming to IEC 60529 Rated operational voltage limits: 19.2...26.4 V DC [Ui] rated insulation voltage: 250 V conforming to IEC; 300 V conforming to CSA; 300 V conforming to UL Maximum switching voltage: 250 V conforming to IEC Drop-out voltage threshold: >= 0.1 Uc DC Average coil consumption: 1.5 W Average resistance: 320 Ohm at 20 °C +/- 10 % Maximum switching capacity: 3750 VA; 420 W Load current: 15 A at 250 V AC; 15 A at 28 V DC Operating time: 20 ms at nominal voltage Mechanical durability: 10000000 cycles Electrical durability: 100000 cycles for resistive load Safety reliability data: B10d = 100000 Operating rate: <= 1200 cycles/hour under load; <= 18000 cycles/hour no-load Utilisation coefficient: 20 % Dielectric strength: 1500 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with reinforced; 2000 V AC between poles with basic [Uimp] rated impulse withstand voltage: 4 kV during 1.2/50 µs Protection category: RT I Mounting support: Plug-in Operating position: Any position Test levels: Level A group mounting Device presentation: Complete product Contacts material: AgNi Shape of pin: Flat (faston type) Product weight: 0.054 kg Pollution degree: 3 Standards: UL 508; CSA C22.2 No 14; IEC 61810-1 Product certifications: EAC; UL; CSA Ambient air temperature for storage: -40…85 °C Vibration resistance: 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation; 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating Shock resistance: 15 gn for in operation; 30 gn for not operating Country of origin: CN Warranty (in months): 18

HS Code

8536.90

• EAN 3389119402057
• SAP 1000081419
• Code 8824640
