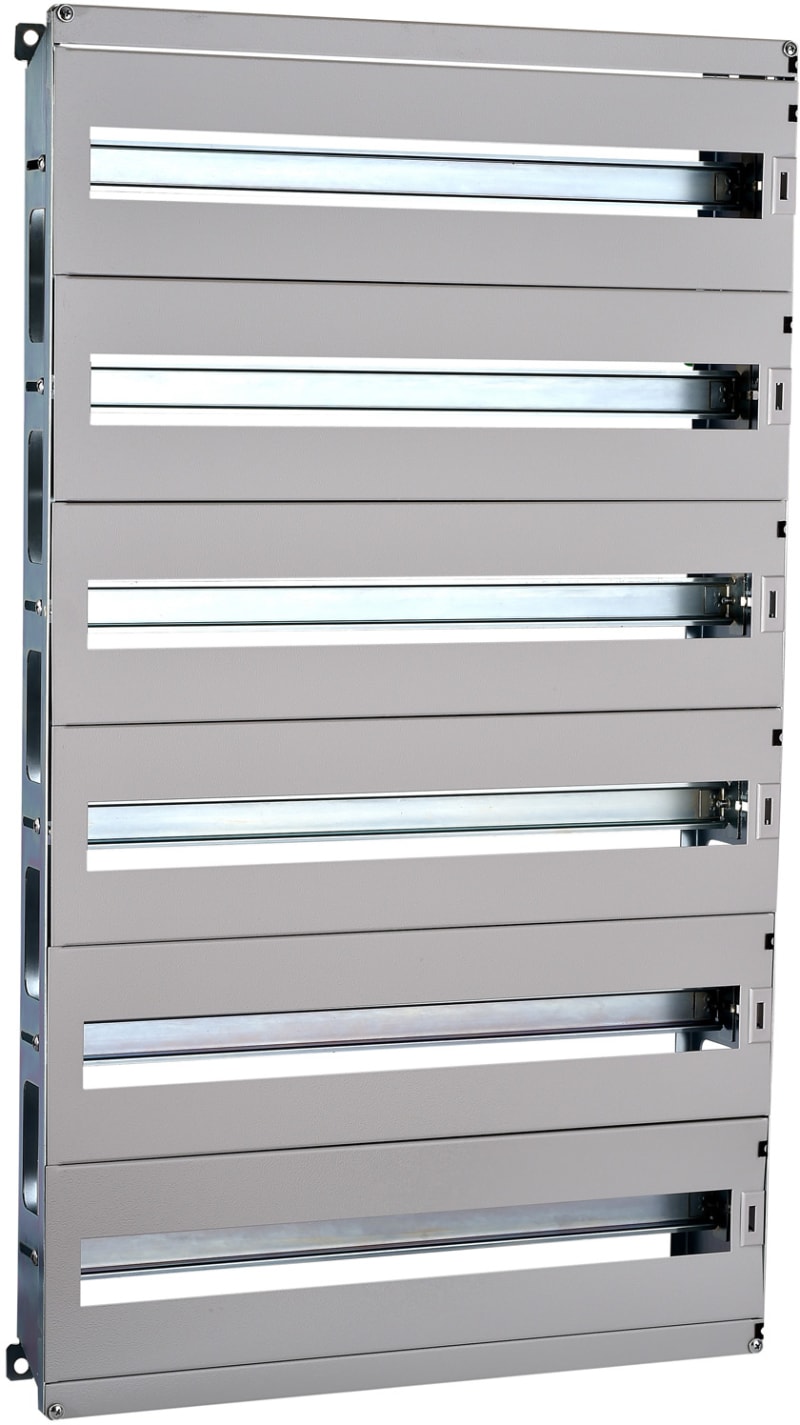

Modular frame 66M H700XW500
Pricing
Request a quote
We reply within 24 hours
Product Description
Modular frame 66 M H700XW500.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLM66 EAN / GTIN: 3606480162541 Sales unit: pcs Range: PanelSeT Accessory / separate part category: Mounting accessory Application: Multi-purpose; Modular distribution application Product or component type: Chassis Device short name: DLM For enclosure nominal dimensions: - Mounting location: Front of enclosure; Step slide Range compatibility: PanelSeT S3D; PanelSeT CRN Device composition: 1 chassis structure; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 3 front panels with 35 mm DIN rail; 1 plain front panel with mounting plate Quantity per set: Set of 1 material: Steel Colour: Front panel: grey (RAL 7035) Surface finish: Polyester powder Fixing mode: By fixing element - on front and back with supports location Adjustment: In height from 40 to 85 mm for DIN rail Number of horizontal rows: 3 Total number of 18 mm modules: 66 Type of front plate: Plain and cut-out plates Number of cut-out: 3 cut-outs Height: 653 mm Width: 455 mm Depth: 101.5 mm Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 12.000 cm Package 1 Width: 46.500 cm Package 1 Length: 66.500 cm Package 1 Weight: 6.410 kg Unit Type of Package 2: PAM Number of Units in Package 2: 30 Package 2 Height: 130.000 cm Package 2 Width: 100.000 cm Package 2 Length: 120.000 cm Package 2 Weight: 205.000 kg Country of origin: ES Warranty (in months): 18 Type of covering: With notch Number of DIN-rails: 3 Number of modular spacings per DIN-rail: 22
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606480162541
- SAP 1000470576
- Code 8932084
Product Documentation
More from Schneider Electric
Schneider Electric
Push-button flush black with text (ZB4FL232)
Schneider Electric
Battery cable for FDP 252
FFS00703954
Schneider Electric
Schneider Electric variable speed drive, ATV930, 4kW, 400/480V, with braking unit, IP21 ATV930U40N4
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 1P+N, 40A, A-SI type, instantaneous, 30MA, 230VAC A9Y84640
Schneider Electric
Schneider Electric Actassi - plinth raiser - depth 800 mm NSYAEBP2F68
Schneider Electric
1000X420X900 Sok 7035 PLAZ(T)
NSYZHPLA104G
Schneider Electric
Schneider Electric Switch disconnector ComPacT NSX630NA DC EP, 4 poles, fixed, 500A rating, 1500V C634500D3S
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 2P, 63A, A-SI type, 30MA, double terminal A9Z31263
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYDLM66?
- NSYDLM66 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYDLM66.
- What is the HS code for NSYDLM66?
- The customs tariff (HS) code for NSYDLM66 is 9403.99.
- Who manufactures NSYDLM66?
- NSYDLM66 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYDLM66?
- Yes — the NSYDLM66 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYDLM66?
- The minimum order quantity is 1.
- Is NSYDLM66 available?
- Yes — NSYDLM66 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
