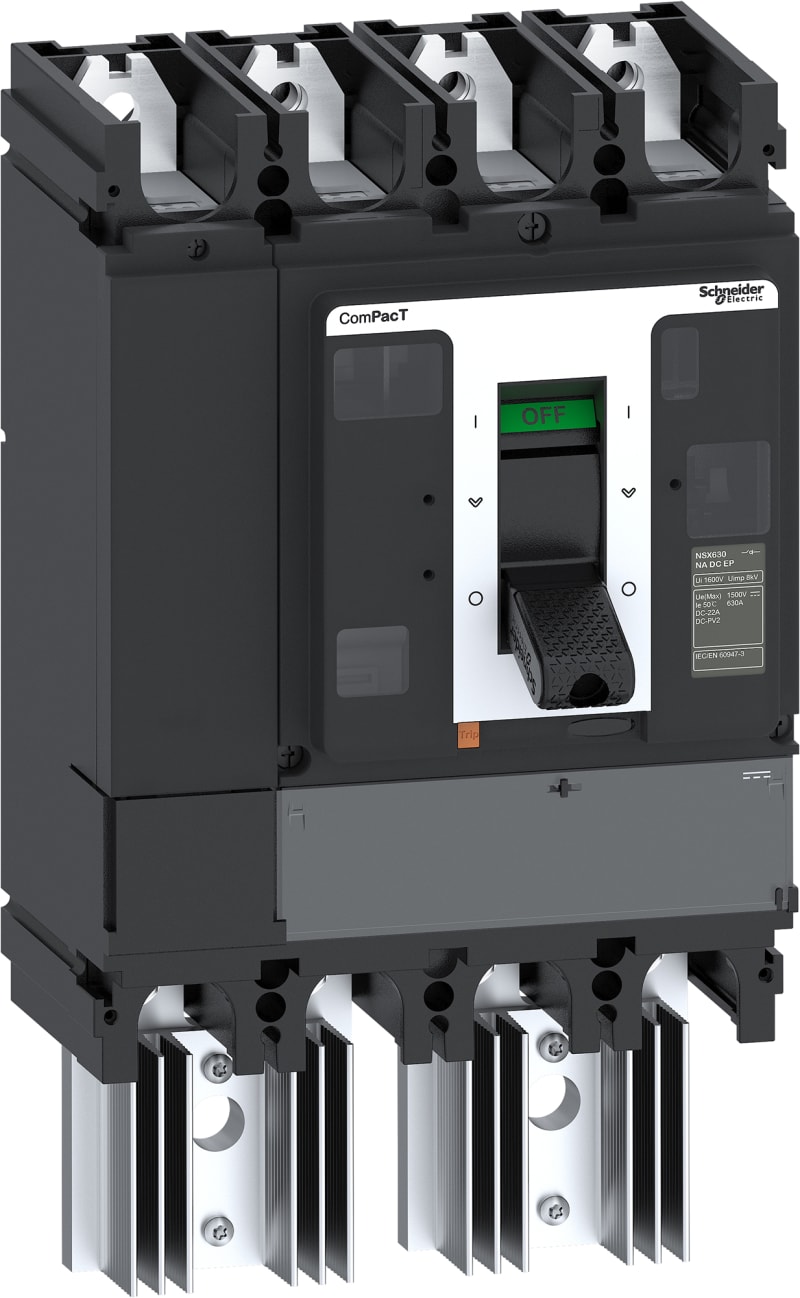

Schneider Electric Switch disconnector ComPacT NSX630NA DC EP, 4 poles, fixed, 500A rating, 1500V C634500D3S
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C634500D3S Load-break switch NSX630 NA DC EP 4P 500A - 1500V DC.
Technical Specifications
- Manufacturer part number (MPN)
- C634500D3S
- EAN / GTIN
- 3606481988713
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Rated current
- 500 A
- Number of poles
- 4P
- Range
- ComPacT
- Product name
- ComPacT NSX DC EP
- Device short name
- NSX 630 DC EP
- Product or component type
- Switch disconnector
- Device application
- Photovoltaic; Marine application
- Poles description
- 4P
- [Ith] conventional free air thermal current
- 500 A at 40 °C
- [Ie] rated operational current
- DC-22A: 500 A DC 1500 V; DC-PV2: 500 A DC 1500 V
- [Ue] rated operational voltage
- 1500 V DC
- Network type
- DC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Utilisation category
- DC-22A; DC-PV2
- Breaking capacity code
- NA
- Contact position indicator
- Yes
- Visible break
- No
- mounting mode
- Fixed
- [Icw] rated short-time withstand current
- 7.56 kA during 1 s
- [Icm] rated short-circuit making capacity
- 7.56 kA switch-disconnector alone
- Control type
- Toggle
- [Ui] rated insulation voltage
- 1600 V DC
- [Uimp] rated impulse withstand voltage
- 8 kV
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 45 mm
- Mechanical durability
- 8000 cycles
- Electrical durability
- 3000 cycles 1500 V DC In
- Width (W)
- 185 mm
- Height (H)
- 255 mm
- Depth (D)
- 110 mm
- Product weight
- 8.1 kg
- Standards
- EN/IEC 60947-1; EN/IEC 60947-3
- Product certifications
- CE; CCC
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60664-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481988713
- SAP 1200722370
- Code 83837180
Product Documentation
More from Schneider Electric
Schneider Electric

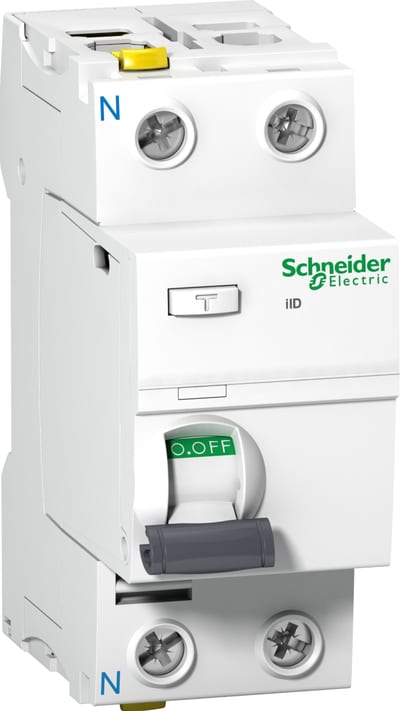

Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 2P, 63A, A-SI type, 30MA, double terminal A9Z31263
Schneider Electric

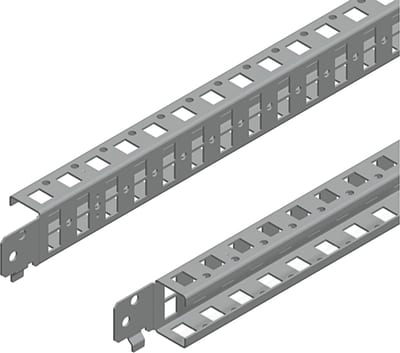

Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W1200MM, 1 row, set of 2 NSYSQCR40120
Schneider Electric

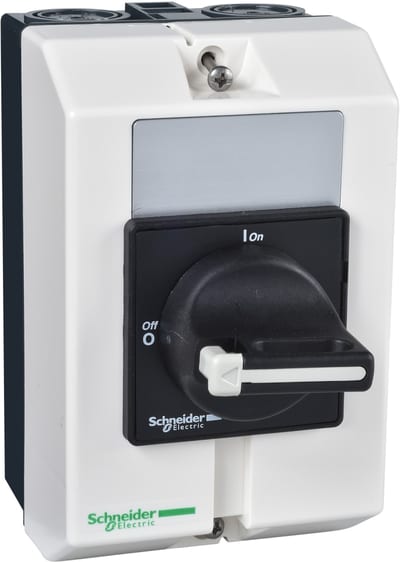

Schneider Electric TeSys Vario enclosed, main switch disconnector, 25A, IP65 VBF1GE
Schneider Electric

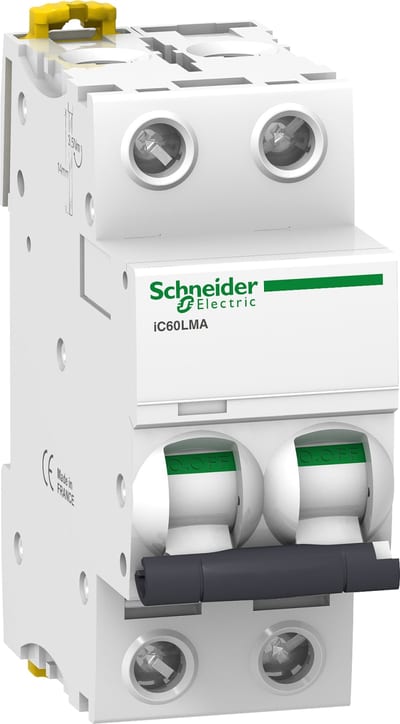

Schneider Electric IC60L - miniature circuit breaker - 2P - 25A - MA curve A9F90225
Schneider Electric

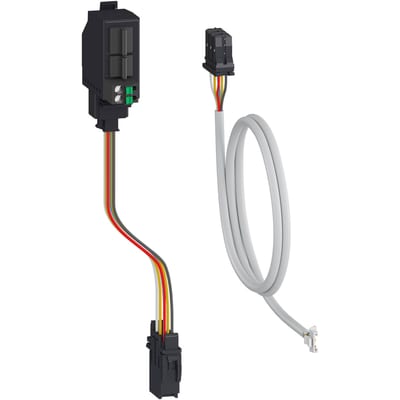

Schneider Electric ULP port module kit, MasterPact MTZ2/MTZ3 drawout, spare part LV850062SP
Schneider Electric

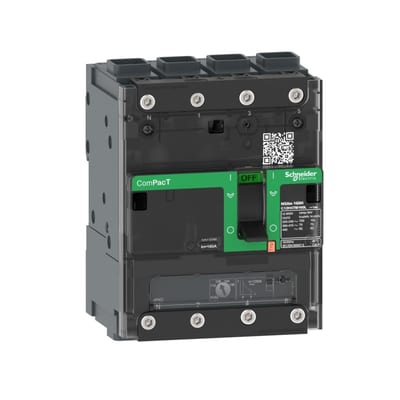

Schneider Electric Circuit breaker, ComPacT NSXm 63B, 25KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 32A, EverLink lugs C11B4TM032L
Schneider Electric

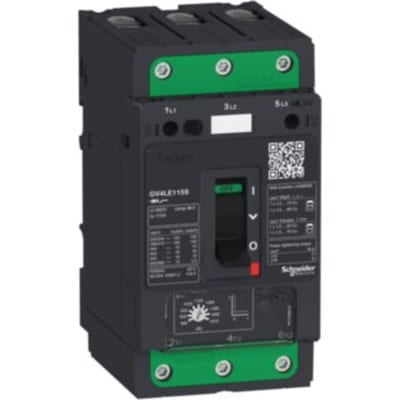

Schneider Electric Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50KA, magnetic, EverLink terminals GV4LE115N
Schneider Electric

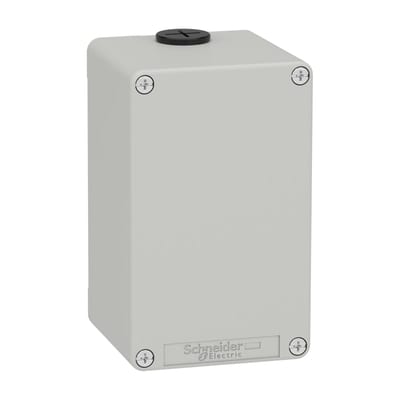

Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M20, undrilled, 80 x 130 x 77, UL cULus XAPD24
