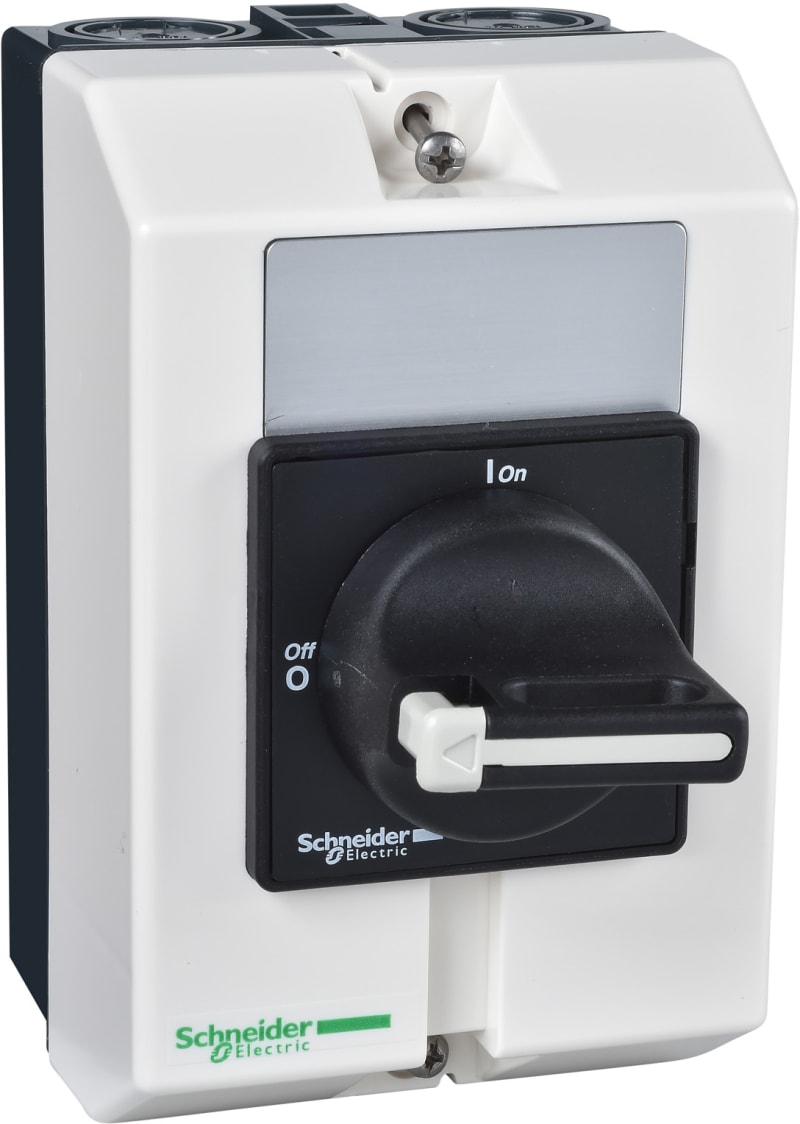

Schneider Electric TeSys Vario enclosed, main switch disconnector, 25A, IP65 VBF1GE

Schneider Electric VBF1GE Safety switch 25A.

Manufacturer part number (MPN)

VBF1GE

EAN / GTIN

3389110166569

HS code

8536.90

Sales unit

pcs

Package quantity

7 pcs

Rated current

25 A

Range

TeSys

Product name

TeSys VARIO

Device short name

VBF

Device application

Preventive maintenance

Product or component type

Enclosed switch-disconnector

Performance level

High performance

Poles description

3P

Control type

Rotary handle

Handle colour

Black

Handle front plate colour

Black

Rotary handle padlocking

1 to 3 padlocks 4…8 mm

Marking

0 - 1

[Ue] rated operational voltage

690 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ithe] conventional enclosed thermal current

25 A

[Ie] rated operational current

21.8 A (AC-23A) at 400 V

Rated operational power in W

11 kW at 400 V (AC-23); 7.5 kW at 400 V (AC-3)

Intermittent duty class

30

Making capacity ( I rms)

320 A at 400 V AC-21A; 320 A at 400 V AC-22A; 320 A at 400 V AC-23A

[Icm] rated short-circuit making capacity

1 kA at 400 V at Ipeak

[Icw] rated short-time withstand Rms current

384 A at 400 V duration: 1 s

Rated conditional short-circuit current

10 kA at 400 V - associated fuse 35 A aM; 10 kA at 400 V - associated fuse 35 A gG

Breaking capacity

250 A at 400 V (AC-21A); 250 A at 400 V (AC-22A); 250 A at 400 V (AC-23A)

Mechanical durability

100000 cycles

Electrical durability

100000 cycles AC-21; 30000 cycles DC-1...5

Environmental characteristic

Standard environment

Suitability for isolation

Yes

Connections - terminals

Screw clamp terminals10 mm² - solid; Screw clamp terminals6 mm² - flexible - with cable end

Tightening torque

2.1 N.m - on screw clamp terminals

Fire resistance

960 °C conforming to IEC 60595-2-1

handle front plate dimension

60 x 60 mm

Height

146 mm

Width

90 mm

Depth

131 mm

Product weight

0.5 kg

Standards

IEC 60204; IEC 60947-4-1

Protective treatment

TC

IP degree of protection

IP65 conforming to IEC 60529

Mechanical robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Ambient air temperature for operation

-20…50 °C

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110166569
• SAP 1000070963
• Code 8764626
