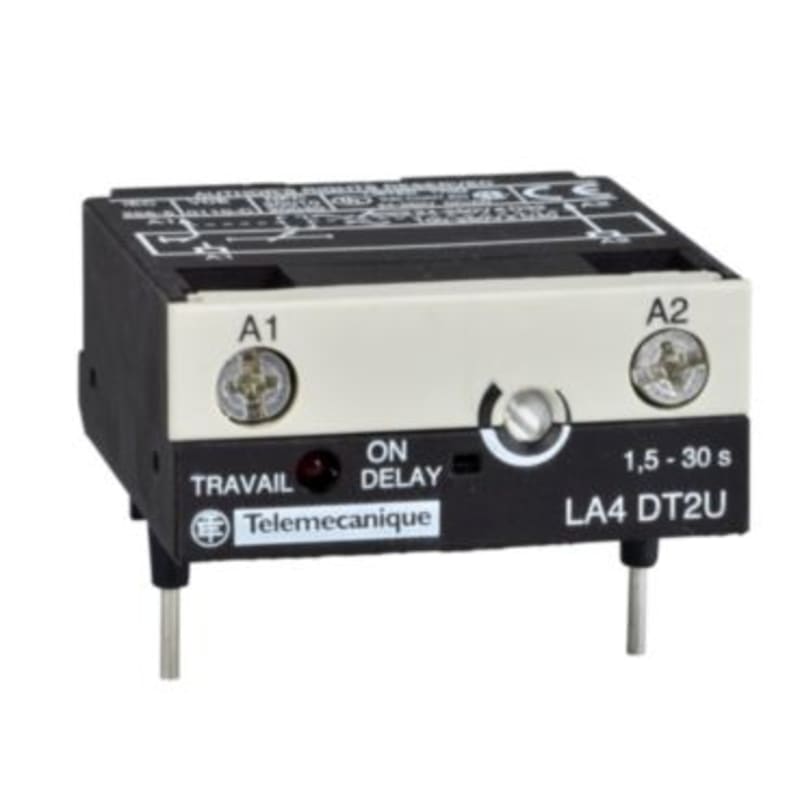

Schneider Electric electronic timer module - type on delay - 1.5....30 s - 24....250 V DC/AC LA4DT2U

Schneider Electric LA4DT2U Tidsblokk 1,5-30S Delayed.Innk.

Manufacturer part number (MPN)

LA4DT2U

EAN / GTIN

3389110236460

Sales unit

pcs

Package quantity

70 pcs

Range

TeSys

Product or component type

Serial timer modules

Device short name

LA4DT

Poles description

3P

Product compatibility

LC1D09...D38; LC1D80...D150; LC1D40A...D80A

Mounting location

Top

[Uc] control circuit voltage

24...250 V AC 50/60 Hz; 24...250 V DC

Control circuit voltage limits

By mechanical contact: 0.8...1.1 Uc

[Ui] rated insulation voltage

250 V conforming to IEC 60947-1

Connections - terminals

Control circuit: connector 1 cable(s) 1…2.5 mm²flexible with cable end; Control circuit: connector 1 cable(s) 1…2.5 mm²solid with cable end; Control circuit: connector 1 cable(s) 1…2.5 mm²flexible without cable end; Control circuit: connector 1 cable(s) 1…2.5 mm²solid without cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²flexible with cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²solid with cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²flexible without cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²solid without cable end

Tightening torque

1.7 N.m

Electrical durability

30 Mcycles

Timer type

On delay

Time delay range

1.5...30 s

Reset time

150 ms during time delay; 50 ms after time delay

Local signalling

Illuminates during time delay by LED

[Ures] residual voltage

3.3 V

Product weight

0.04 kg

Standards

IEC 60255-5

Product certifications

CSA; UL

IP degree of protection

IP2X conforming to IEC 60529

Ambient air temperature for operation

-25…55 °C

Permissible ambient air temperature around the device

-25…70 °C

Ambient air temperature for storage

-40…80 °C

Protection type

Built-in by varistor

Heat dissipation

2 W

Immunity to microbreaks

10 ms during time delay; 2 ms after time delay

Number of Units in Package 1

1

Number of Units in Package 2

70

Country of origin

TN

Warranty (in months)

18

Switching function

Operating delayed

Setting time

1.5–30 s

Number of contacts as normally open contact

1

Operating principle

Electronic

HS Code

8536.49

• EAN 3389110236460
• SAP 1000005715
• Code 833046
