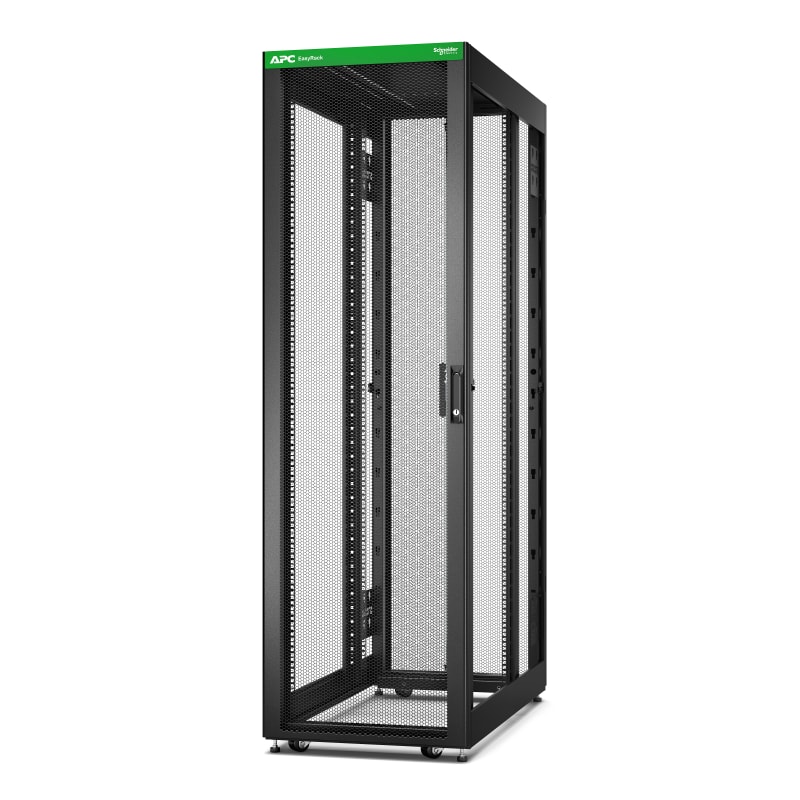

Schneider Electric APC Easy Rack, 42U, Black, with Roof, Castors, Feet, 4 Brackets, and Bottom, No Side Panels, 1991H x 600W x 1200D mm ER6220
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ER6220 EasyRack600/42U/1200 with wheel,feet, lock, 4 brackets, without side panel and bottom. Black.
Technical Specifications
- Manufacturer part number (MPN)
- ER6220 EAN / GTIN: 0731304433262 Sales unit: pcs Product or component type: Rack enclosure Number of rack unit: 42U Provided equipment: Baying hardware; Key(s); Doors; Leveling feet; Mounting hardware; Pre-installed casters Height: 1991 mm Width: 600 mm Depth: 1200 mm Product weight: 77.6 kg Colour: Black mounting mode: Not rack-mountable Maximum mounting depth: 1041.4 mm minimum mounting depth: 190.5 mm Rack width: 19" Marking: 18 gauge front door; 19 gauge rear door; 16 gauge post; 14 gauge EIA mounting rail Permanent permissible load: 1199.8 kg static; 599.6 kg dynamic Standards: UL 2416; UL 60950-1; EIA-310E Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 212 cm Package 1 Width: 65 cm Package 1 Length: 125 cm Package 1 Weight: 85 kg Country of origin: CN Warranty (in months): 60 Mounting level: None Model: With permanent frame Type of profile rail: None Number of doors: 2 Type of ventilation: Passive Number of height units: 42 Max. load capacity: 1200 kg With roof plate: Yes With earthing: Yes With front door: Yes With sidewall: No Demountable: No material: Steel Surface finishing: Powder coating RAL-number: 9005 Degree of protection (IP): IP20
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 0731304433262
- SAP 1200566354
- Code 82961743
Product Documentation
