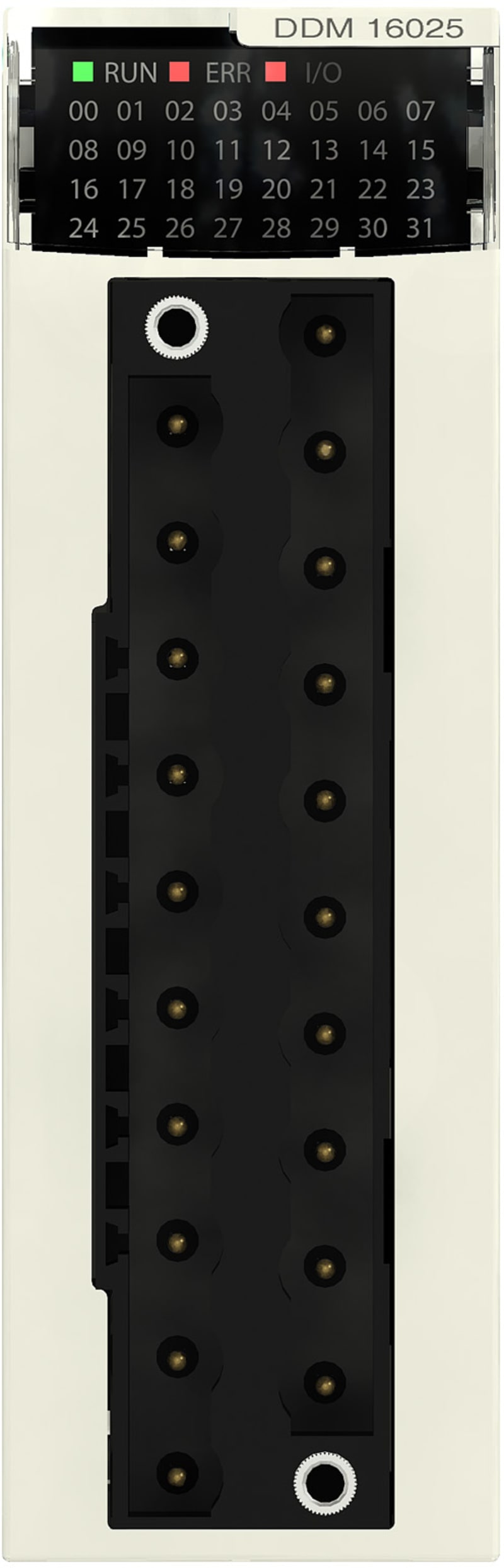

Schneider Electric discrete I/O module X80 - 8 inputs - 24 V DC - 8 outputs - relay BMXDDM16025

Schneider Electric BMXDDM16025 M340 8 in digital, 24VDC,8ut relay, FTB.

Manufacturer part number (MPN)

BMXDDM16025 EAN / GTIN: 3595863910612 HS code: 8536.90 Sales unit: pcs Package quantity: 15 pcs Voltage: 24 V DC Range of product: Modicon X80 Product or component type: Discrete I/O module Discrete input number: 8 Input impedance: 6800 Ohm Paralleling of inputs: No minimum switching current: 1 mA 5 V DC Response time on output: <= 8 ms deactivation; <= 10 ms activation Insulation resistance: > 10 MOhm 500 V DC DC typical response time: 4 ms DC maximum response time: 7 ms Switching frequency: 1 Hz Maximum switching voltage: 125 V DC; 264 V AC MTBF reliability: 940000 H Protection type: 1 external fuse per group of input channel0.5 A fast blow; reverse polarity protection on input; 1 external fuse per output channel or group of output channel fast blow Voltage detection threshold: 18 V DC sensor OK Product weight: 0.135 kg IP degree of protection: IP20 Protective treatment: Standard version Directives: 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility Dielectric strength: 1500 V AC at 50/60 Hz 1 minute, primary/secondary; 2830 V AC at 50/60 Hz 1 minute, output relay; 500 V DC 1 minute, between group of I/O Relative humidity: 5…95 % at 55 °C without condensation Country of origin: FR Warranty (in months): 18

HS Code

8536.90

• EAN 3595863910612
• SAP 1000087585
• Code 8889220
