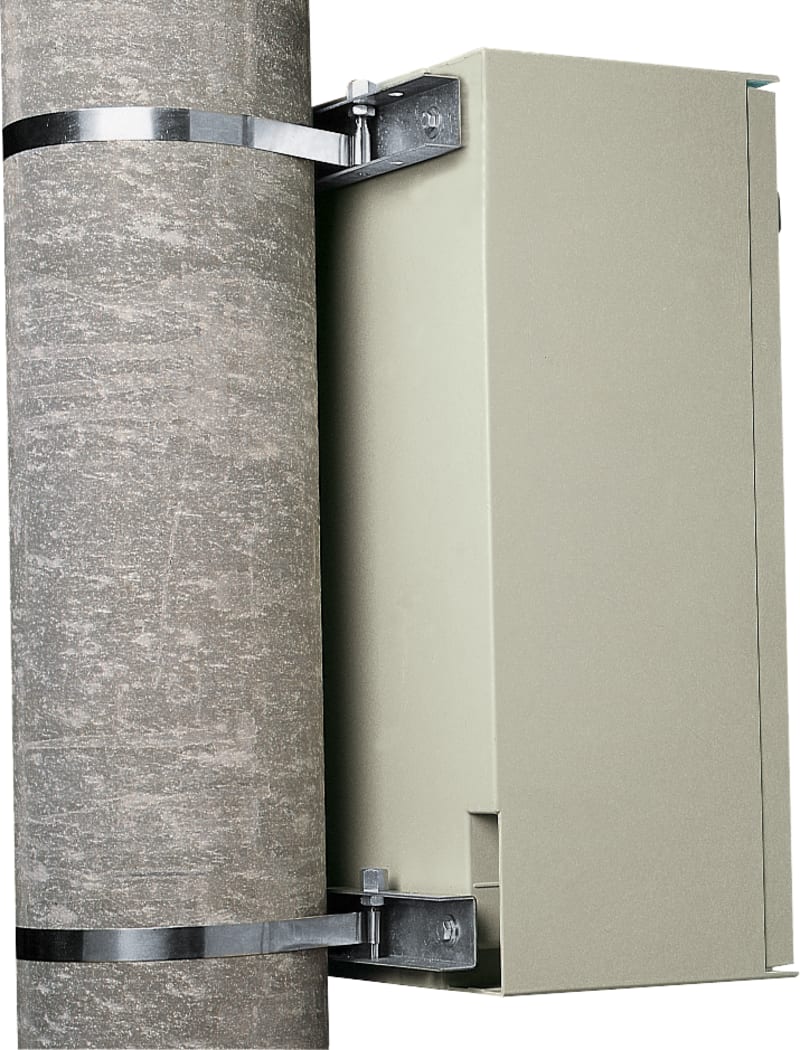

Schneider Electric NSYSFP600 Post fixing device galvanized steel post diam. max 215mm load 100kg for PLM86
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYSFP600 Post fixing device galvanized steel post diam. max 215mm load 100kg for PLM86 is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Package quantity: 5 pcs; Range: PanelSeT; Product or component type: Post fixing device; Device application: Multi-purpose; Enclosure nominal dimensions: - H: 847 mm W: 636 mm D: 300 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFP600
- EAN / GTIN
- 3606480192531
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Fixing accessory
- Product or component type
- Post fixing device
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 847 mm W: 636 mm D: 300 mm
- Mounting location
- Rear of enclosure; Outdoor installations on a post
- Range compatibility
- PanelSeT PLM PLM
- Device composition
- fixing elements; 2 support rail; 2 strip
- Material
- Galvanised steel
- Fixing mode
- By fixing element - on a post location
- Permanent permissible load
- 100 kg
- Height
- 45 mm
- Width
- 595 mm
- Depth
- 32.5 mm
- Diameter
- 215 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 11.000 cm
- Package 1 Length
- 60.000 cm
- Package 1 Weight
- 3.300 kg
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 5
- Package 2 Height
- 25.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 50.000 cm
- Package 2 Weight
- 16.500 kg
- Unit Type of Package 3
- PAM
- Number of Units in Package 3
- 60
- Package 3 Height
- 50.000 cm
- Package 3 Width
- 100.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 211.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Spare part
- No
- Accessory
- Yes
- Type of accessory/spare part
- Mounting post
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480192531
- SAP 1000470208
- Code 8786534
