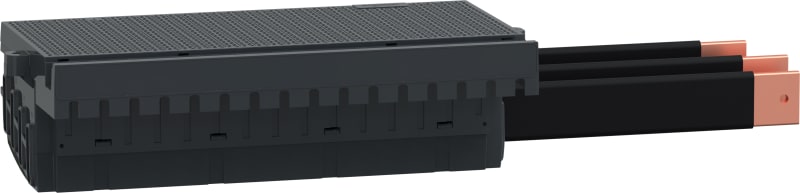

SSbl.-LGY FC-with connection LGYE/LGY BS-NSXM-3P

Schneider Electric LVS04412 Busbarblokk-Linergy FC(Polypact)-with connection for LGYE and LGY BS-for NSXm-3P-PrismaSeT P.

Manufacturer part number (MPN)

LVS04412

EAN / GTIN

3606481866004

Sales unit

pcs

Number of poles

3

Range

Linergy

Range of product

Linergy

Product or component type

Device feeder

Product name

Linergy FC

Range compatibility

PrismaSeT PrismaSeT P cubicle; ComPact ComPact NSXm circuit breaker

Accessory / separate part category

Connection accessory

Provided equipment

Prefabricated flexible connection to Linergy busbars

Poles description

3P

Installed device

ComPact: fixed NSXm without earth leakage protection - vertical installation

Number of devices

5 (3P)

Installation direction

Horizontal

installation description

Cubicle - width 650 mm

Mounting support

Mounting plate

[Ui] rated insulation voltage

800 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

600 A at 35 °C

[Ue] rated operational voltage

690 V

[Ipk] rated peak withstand current

18 kA

I²t on activation

4500000 A².s

Permissible current

575 A at 40 °C: IP31; 525 A at 50 °C: IP31; 500 A at 40 °C: IP55; 450 A at 50 °C: IP55

Standards

IEC 61439-1; IEC 61439-2

Product certifications

KEMA; ASTA

Quantity per set

Set of 1

Length

480 mm

Height

132 mm

Depth

235 mm

Colour

Black

Connections - terminals

Supply: flexible bars (phase) ; Outgoer: plug in (phase) , 5 outgoers

Number of Units in Package 1

1

Number of Units in Package 2

14

Warranty (in months)

18

Insulated

Yes

Number of phases

3

Cross section

95 mm²

Rated permanent current Iu

600 A

Conditioned rated short-circuit current Iq

50 kA

Rated surge voltage

8 kV

Rated short-time withstand current lcw

18 kA

Suitable for devices with auxiliary switch

No

Suitable for devices with N-conductor

No

Suitable for number of devices

5

Max. rated operation voltage Ue

690 V

Module width

27 mm

Country of origin

France

HS Code

8544.42
