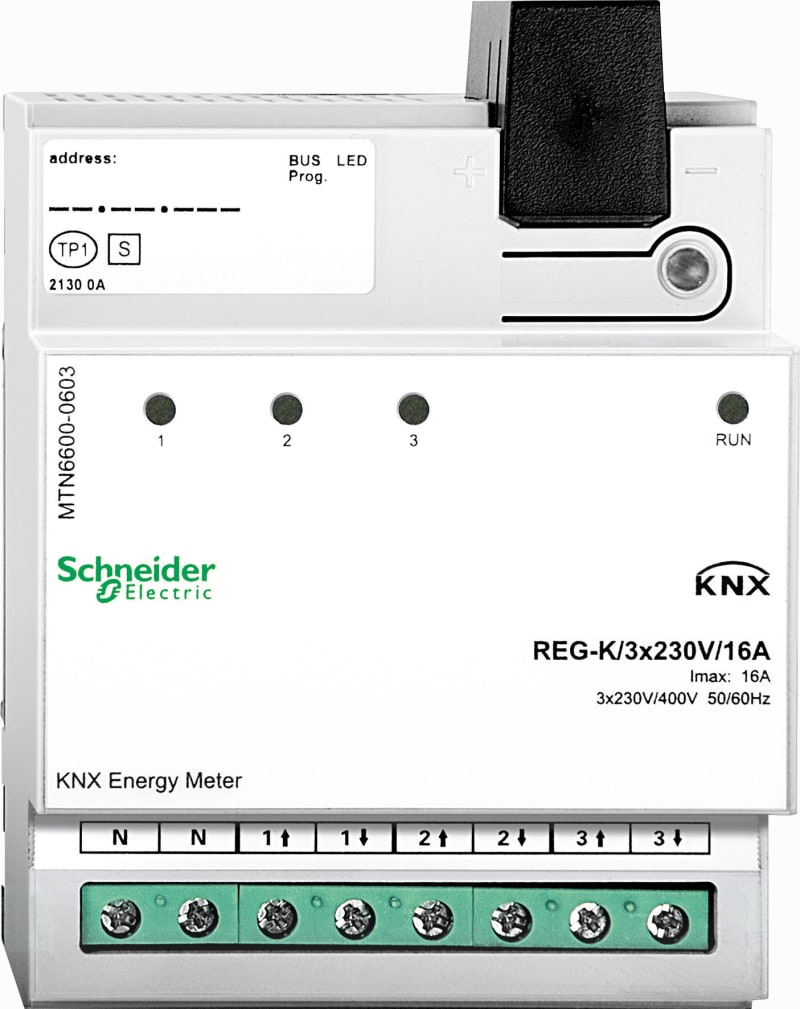

Schneider Electric Energy meter, Merten KNX, 3 channel, 230 VAC, 16A, white, Supply KNX 12.5 mA MTN6600-0603

Schneider Electric Merten KNX - Energy meter - 3 x 230 V - 16 A.

Manufacturer part number (MPN)

MTN6600-0603

EAN / GTIN

3606480512261

Sales unit

pcs

Package quantity

10 pcs

Range of product

KNX

Product or component type

Energy meter

Bus type

KNX

Number of channels

3

Colour

White (RAL 9003)

Colour tint

White

Range

KNX

Power supply input current

12.5 mA

Type of measurement

Power; Current; Energy consumption

Function available

Energy management; Alarm threshold; Adjustable tolerance

[Us] rated supply voltage

24 V DC, <12.5 mA

Input voltage

230 V AC 50/60 Hz

Input current

16 A by channel

Accuracy class

Class 1 active energy conforming to IEC 61557-12

Measurement accuracy

Power: +/- 10 %; Current: +/- 10 %

Input type

Current transformer 0...20 mA

18 mm pitches

4

Mounting support

DIN rail

Control type

Manually operated: program mode

Local signalling

Green LED for RUN; Red LED for program mode; Green and red LED for channel status

Connections - terminals

bus terminal for KNX bus; 2.5 mm² screw terminals for input

Height

90 mm

Width

72 mm

Depth

65 mm

Material

Plastic

Main colour tint

White

IP degree of protection

IP20

Ambient air temperature for operation

-5…45 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Warranty (in months)

18

Model

Energy meter

Connection type

Direct

S0 impulse interface

None

Other bus systems

None

Country of origin

Germany

HS Code

9030.33
