SIDEPLATER-2 PCS-IP55-L.KOMB.-PRISMASET P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08756 Side Plates-2 pcs-IP55-for frames with forkjellig depth-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08756
- EAN / GTIN
- 3606481877864
- Sales unit
- pcs
- IP rating
- IP55
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Side panel
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure; Indoor enclosure
- installation description
- Cubicle - width 400 mm, depth 400 mm; Cubicle - width 650 mm, depth 400 mm; Cubicle - width 800 mm, depth 400 mm
- Kit composition
- 2 side panel; quarter-turn fasteners
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 400 mm
- Height
- 2000 mm
- Product weight
- 23.0 kg
- Quantity per set
- Set of 2
- IP degree of protection
- IP55 for enclosure
- IK degree of protection
- IK10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Warranty (in months)
- 18
- Suitable as side panel
- Yes
- Suitable as rear panel
- No
- Suitable for enclosure building depth
- 400 mm
- Surface finishing
- Powder coating
- RAL-number
- 9003
- With cable entry
- No
- Number of height units
- 40
- With lock
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481877864
- SAP 1200547360
- Code 82880720
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Analogue input cartridge, Modicon M221, 2 temperature inputs, I/O extension TMC2TI2
Schneider Electric
Schneider Electric Complete pilot light, Harmony XB6, rectangular yellow, plastic, 16mm, integral LED, 12...24V XB6DV5BB
Schneider Electric
Schneider Electric undervoltage release (spring) MN - 110...130 V AC 50/60Hz - 125 V DC LV426803
Schneider Electric
Anti-rotasjonsplate for flush
ZB5FAZ902
Schneider Electric

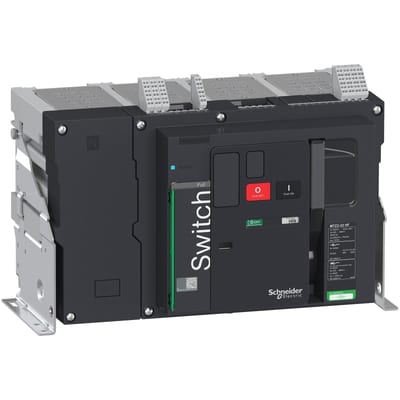

Schneider Electric switch disconnector Masterpact MTZ2 32 HF, 3200 A, 4 poles, fixed LV848091
