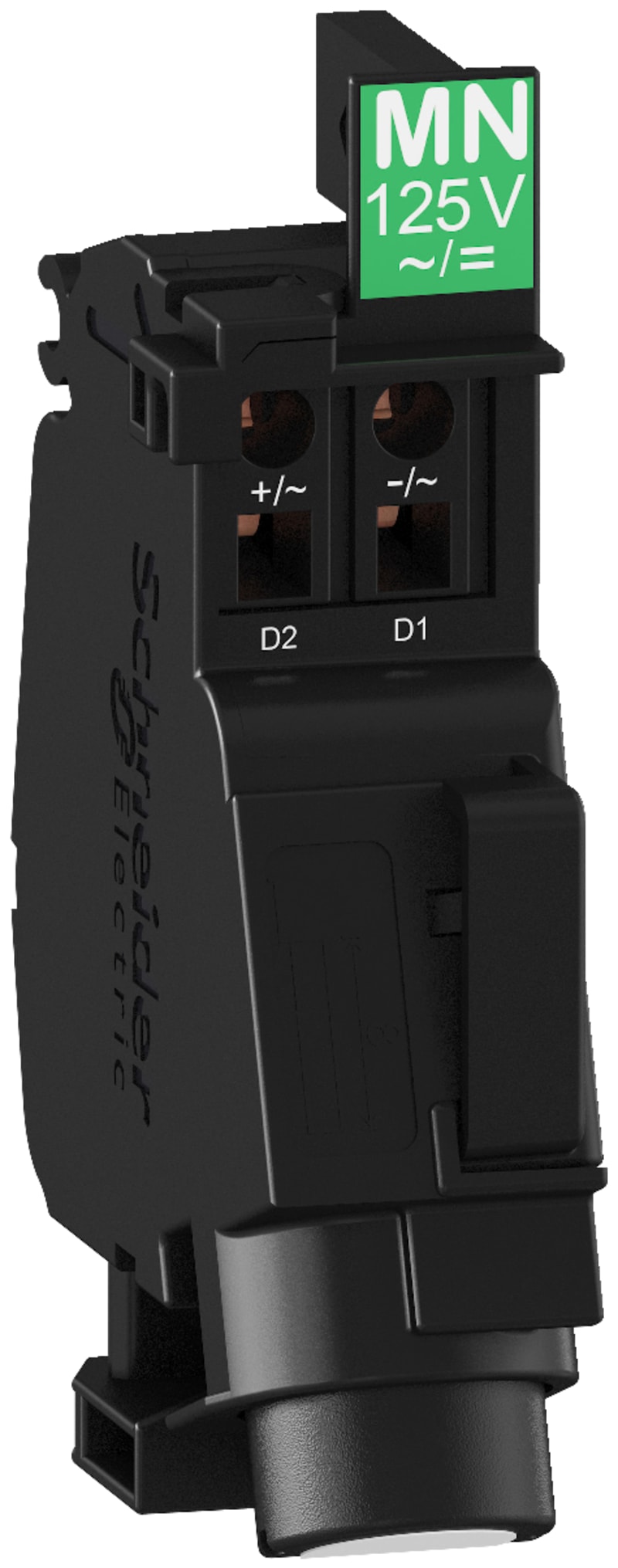

Schneider Electric undervoltage release (spring) MN - 110...130 V AC 50/60Hz - 125 V DC LV426803
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV426803 Undervoltage coil MN 110-130VAC/DC for ComPact NSXm circuit breaker.
Technical Specifications
- Manufacturer part number (MPN)
- LV426803
- EAN / GTIN
- 3606485412801
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 120 pcs
- Range
- ComPact
- Range of product
- ComPacT NSXm
- Device short name
- MN
- Product or component type
- Voltage release
- Device application
- Control
- Voltage release type
- Opening coil; Undervoltage release
- Control type
- Standard
- [Uc] control circuit voltage
- 110...130 V AC 50/60 Hz; 125 V DC
- Range compatibility
- ComPact ComPacT NSXm; ComPact ComPact NSXm; PowerPact PowerPact B
- Operating threshold
- 0.35...0.7 x Un opening; 0.85 x Un closing
- Response time
- < 50 ms
- Auxiliary connection terminal
- Spring
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606485412801
- SAP 1200323519
- Code 82306192
Product Documentation
