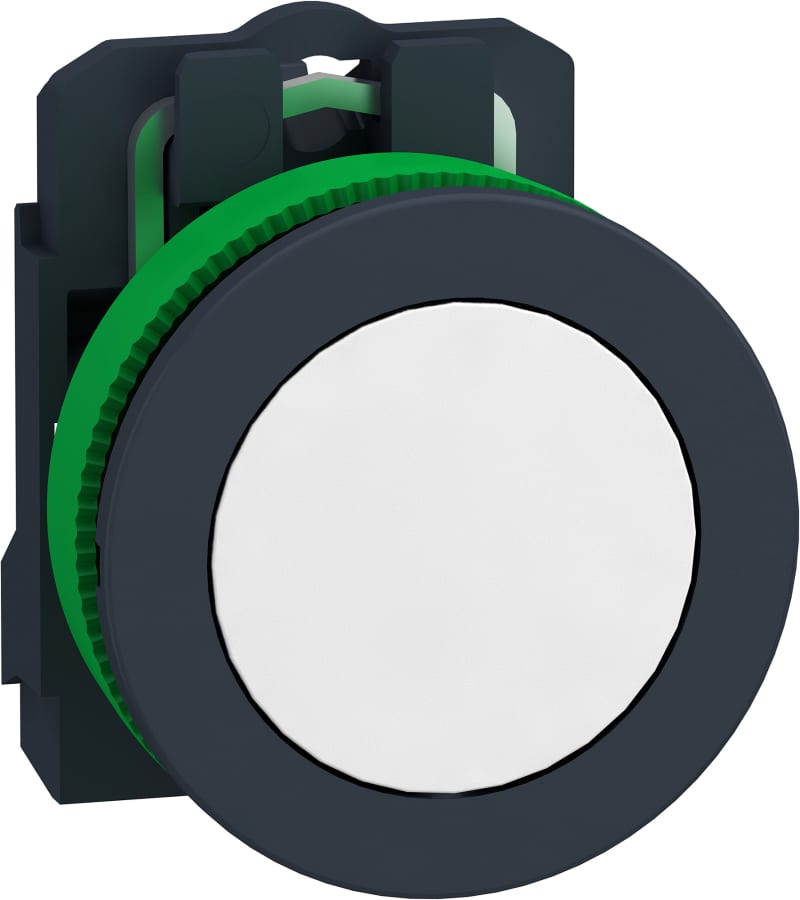

Schneider Electric Push button flush mounted, Harmony XB5, plastic, white, 30mm, spring return, unmarked, 1NO XB5FA11

Schneider Electric XB5FA11 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Push-button flush with spring return and plan push surface in white colour 1xNO.

Manufacturer part number (MPN)

XB5FA11

EAN / GTIN

3606481360441

Sales unit

pcs

Contact configuration

1 NO

Range of product

Harmony XB5

Product or component type

Push-button

Device short name

XB5F

Product compatibility

ZBYF2101; ZBYF4101; ZBYF6101; ZBYF6102; ZBZF32; ZBZF33; ZB4FBZ007

Bezel material

Plastic; Dark grey plastic

Head type

Built-in-flush

Fixing collar material

Plastic

Mounting diameter

30.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

White flush, unmarked

Contacts type and composition

1 NO

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1

Height

42 mm

Width

36.6 mm

Depth

55 mm

Terminals description ISO n°1

(21-22)NC

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Contacts usage

Standard contacts

Positive opening

Without

Operating travel

2.6 mm (NC changing electrical state)

Operating force

3.5 N NC changing electrical state

Mechanical durability

10000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4

Device presentation

Complete product

Customizable

No

GCR BRIDGE

XB5FACUST01

Compatibility code

XB5

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K; Type 13 conforming to UL 50 E; Type 12 conforming to UL 50 E; Type 4 conforming to UL 50 E; Type 4X conforming to UL 50 E

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 50102

Standards

IEC 60947-1; UL 508; JIS C8201-5-1; IEC 60947-5-4; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-1; ISO 22196:2011; ISO 21702

Product certifications

UL listed; CSA

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6; 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Number of Units in Package 1

1

Warranty (in months)

18

Hole diameter

30.5 mm

Colour button

White

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Type of button

Flat

Colour front ring

Black

Type of electric connection

Screw connection

Degree of protection (IP)

IP66

Material front ring

Plastic

With front ring

Yes

Transparent

No

Construction type lens

Round

Switching function latching

No

Number of contacts as normally open contact

1

Country of origin

France

HS Code

8531.80
