Schneider Electric

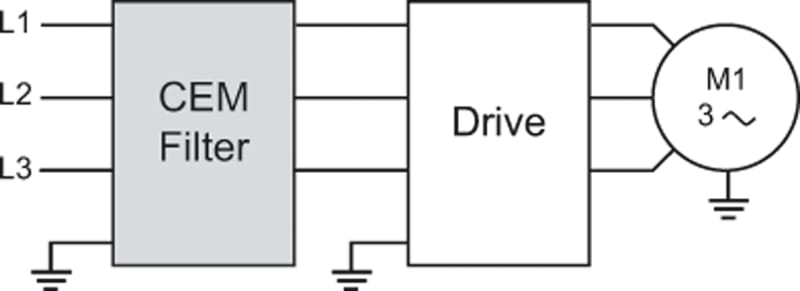

EMC additional filter IP20 10A
Part numberVW3A4702EAN / GTIN3606480736513HS code8548.90
Drives & Controllers
Drive Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A4702 EMC additional filter IP20 10A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A4702
- EAN / GTIN
- 3606480736513
- Sales unit
- pcs
- IP rating
- IP20
- Rated current
- 10 A
- Range of product
- Altivar
- Product or component type
- EMC input filter
- Range compatibility
- Altivar Process ATV600; Altivar Process ATV900
- Product compatibility
- Variable speed drive ATV630 wall mount, motor: 3 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 4 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 5.5 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 2.2 kW, 200...240 V; Variable speed drive ATV630 wall mount, motor: 3 kW, 200...240 V; Variable speed drive ATV650 wall mount, motor: 3 kW, 380...480 V; Variable speed drive ATV650 wall mount, motor: 4 kW, 380...480 V; Variable speed drive ATV650 wall mount, motor: 5.5 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 3 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 4 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 5.5 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 2.2 kW, 200...240 V; Variable speed drive ATV930 wall mount, motor: 3 kW, 200...240 V; Variable speed drive ATV950 wall mount, motor: 3 kW, 380...480 V; Variable speed drive ATV950 wall mount, motor: 4 kW, 380...480 V; Variable speed drive ATV950 wall mount, motor: 5.5 kW, 380...480 V
- Product specific application
- Radio interference input filter
- [In] rated current
- 15 A
- Thermal losses
- 2.25 W
- Network number of phases
- Three phase
- Electrical connection
- Terminal 4 mm² 12 AWG
- Maximum motor cable length
- 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V; 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V; 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V; 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V; 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V; 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V
- maximum earth leakage current
- 7.6 mA at 400 V 50 Hz TN; 7.6 mA at 400 V 50 Hz TT
- power supply voltage
- 200…240 V; 380…480 V
- Tolerance
- 10 %
- Mechanical robustness
- Shocks class 3M4 conforming to IEC 60721-3-3; Vibrations class 3M4 conforming to IEC 60721-3-3
- Width
- 75 mm
- Height
- 240 mm
- Depth
- 140 mm
- Product weight
- 2.4 kg
- IP degree of protection
- IP20mounting side by side; IP21with kit VW3A47902
- Relative humidity
- 5…95 % without condensation conforming to IEC 61800-5-1
- Ambient air temperature for operation
- -10…50 °C (without current derating); 50…60 °C (with current derating 1.5 % per °C)
- Ambient air temperature for storage
- -40…70 °C
- Operating altitude
- 0...1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m
- Standards
- IEC 61800-3
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480736513
- SAP 1000708125
- Code 8667375
