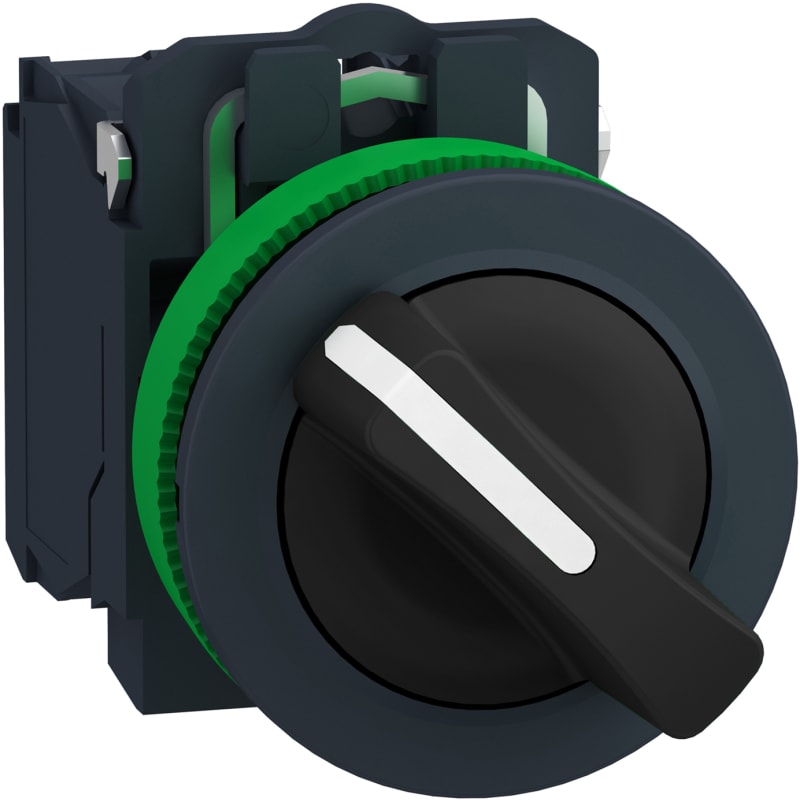

Schneider Electric Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, 2 positions, spring return right to left, 1 NO XB5FD41

Schneider Electric XB5FD41 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Selector switch flush with 2 positions with spring return from H for V 1xNO.

Manufacturer part number (MPN)

XB5FD41

EAN / GTIN

3606481360571

Sales unit

pcs

Contact configuration

1 NO

Range of product

Harmony XB5

Product or component type

Selector switch

Device short name

XB5F

Bezel material

Dark grey plastic

Head type

Built-in-flush

Mounting diameter

30.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

Right to left spring return

Operator profile

Black standard handle, unmarked

Operator position information

2 positions 90°

Contacts type and composition

1 NO

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Height

42 mm

Width

36.6 mm

Depth

73 mm

Terminals description ISO n°1

(13-14)NO

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Contacts usage

Standard contacts

Positive opening

Without

Mechanical durability

1000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4

Device presentation

Complete product

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 50102

Standards

IEC 60947-1; UL 508; JIS C8201-5-1; IEC 60947-5-4; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-1; ISO 21702; ISO 22196:2011

Product certifications

UL listed; CSA

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Warranty (in months)

18

Hole diameter

30.5 mm

Colour button

Black

Number of switch positions

2

Suitable for lighting

No

Spring-return

Yes

Colour front ring

Black

Type of electric connection

Screw connection

Degree of protection (IP)

IP66

With light source

No

Material front ring

Plastic

With front ring

Yes

Switching function latching

No

Number of contacts as normally open contact

1

Country of origin

France

HS Code

8536.50
