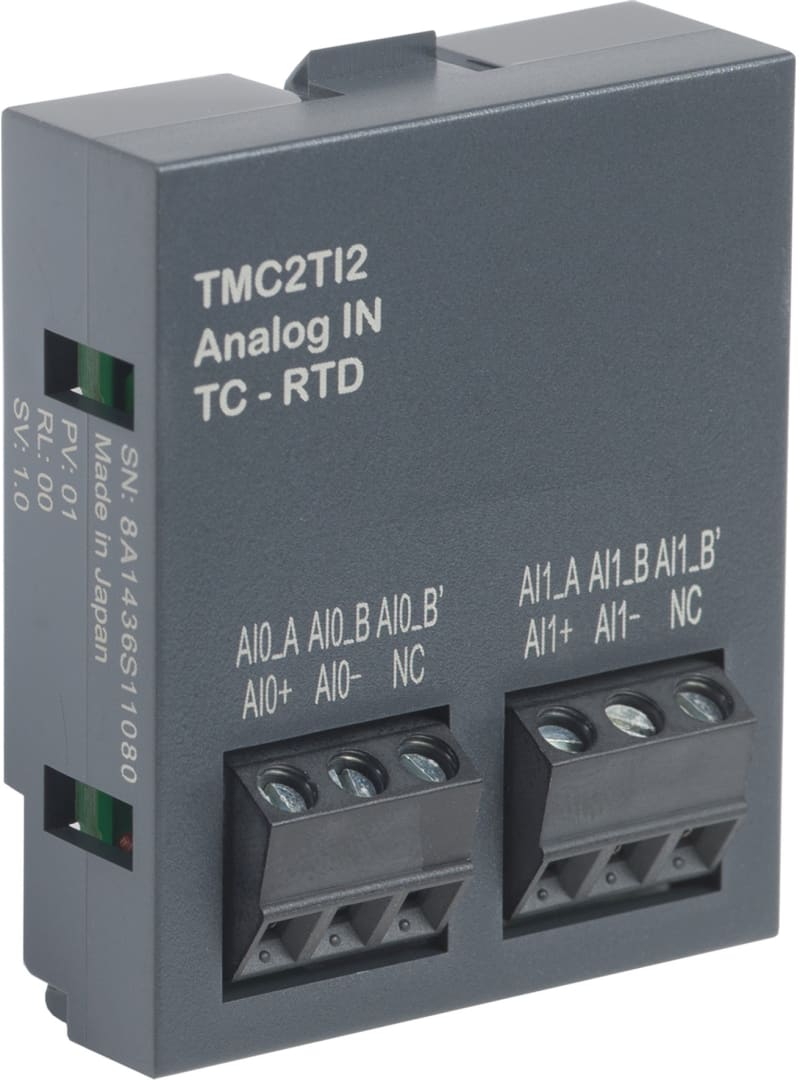

Schneider Electric Analogue input cartridge, Modicon M221, 2 temperature inputs, I/O extension TMC2TI2

Schneider Electric TMC2TI2 Accessories Modicon PLS - M221 cassette - 2 temperaturinnganger.

Manufacturer part number (MPN)

TMC2TI2 EAN / GTIN: 3606480649158 Sales unit: pcs Package quantity: 75 pcs Range of product: Modicon M221 Product or component type: Analogue input cartridge Product compatibility: Modicon M221C Analogue input number: 2 Analogue input type: thermocouple - 200...1000 °C with thermocouple J; thermocouple - 200...1300 °C with thermocouple K; thermocouple 0...1760 °C with thermocouple R; thermocouple 0...1760 °C with thermocouple S; thermocouple 0...1820 °C with thermocouple B; thermocouple - 200...400 °C with thermocouple T; thermocouple - 200...1300 °C with thermocouple N; thermocouple - 200...800 °C with thermocouple E; thermocouple 0...2315 °C with thermocouple C; Ni 100/Ni 1000 temperature probe - 60...180 °C; Pt 100 temperature probe - 200...850 °C; Pt 1000 temperature probe - 200...600 °C Analogue input resolution: 14 bits LSB value: 0.1 °C Sampling duration: 125 ms, analogue input type: thermocouple; 250 ms, analogue input type: temperature probe Absolute accuracy error: +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe; +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C; +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C; +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C; +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C; +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C; +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C; +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C; +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C; +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C; +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C; +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C; +/- 0.1 % of full scale at 25 °C for thermocouple R, S 200...1760 °C; +/- 0.1 % of full scale at 25 °C for thermocouple C 0...2315 °C Temperature drift: +/- 0.02 %FS/°C Repeat accuracy: +/- 0.5 %FS Non-linearity: +/- 0.01 %FS Cross talk: <= 1 LSB Type of cable: Twisted shielded pairs cable Electrical connection: 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs Maximum cable distance between devices: Twisted shielded pairs cable: <30 m for input Insulation: Non-insulated between analogue input and internal logic Height: 41 mm Depth: 15 mm Width: 35 mm Product weight: 0.015 kg Input impedance: >= 1 MOhm Immunity to microbreaks: 10 ms Number of Units in Package 1: 1 Number of Units in Package 2: 75 Number of Units in Package 3: 3600 Country of origin: JP Warranty (in months): 18 Power consumption: 1.1 W Number of analogue inputs: 2 Analogue inputs configurable: No Analogue outputs configurable: No Input, current: Yes Input, voltage: Yes Input, resistor: Yes Input, resistance thermometer: No Input, thermocouple: Yes Input signal, configurable: No Resolution of the analogue inputs: 14 Bit Output, current: No Output, voltage: No Output signal configurable: No Resolution of the analogue outputs: 12 Bit Type of electric connection: Screw connection Suitable for safety functions: No SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): No Explosion safety category for gas: None Explosion safety category for dust: None

HS Code

8536.90

• EAN 3606480649158
• SAP 1000601534
• Code 8233087
