Schneider Electric LVS08712 PrismaSeT P Corner Kit Linergy LGYE IP30
Pricing
Request a quote
We reply within 24 hours
Product Description

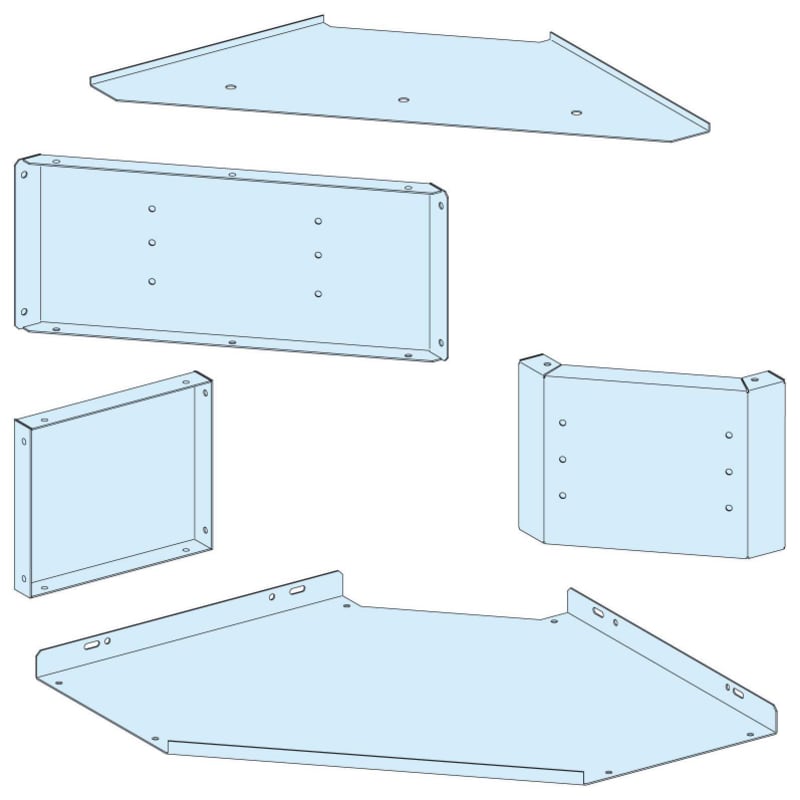

Schneider Electric LVS08712 is a right-angle corner kit for joining PrismaSeT P cubicles carrying Linergy LGYE horizontal busbars, rated IP30 for side-by-side installation. The kit measures 475 mm wide by 475 mm deep by 260 mm high, weighs 16 kg and is finished in matt-textured RAL 9003 white with electrophoresis and polyester-epoxy powder protection. It suits IP55 enclosures.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08712
- EAN / GTIN
- 3606481884077
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Right-angle kit
- Accessory / separate part category
- Enclosure accessory
- Range compatibility
- PrismaSeT PrismaSeT P framework; Linergy Linergy LGYE busbar
- Product compatibility
- IP55 enclosure
- IP degree of protection
- IP30
- Mounting location
- Side by side
- installation description
- Cubicle
- Cubicle-device connection
- Linergy LGYE horizontal busbar
- Quantity per set
- Set of 1
- Height
- 260 mm
- Product weight
- 16 kg
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Warranty (in months)
- 18
- Model
- Mounting angle
- Width
- 475 mm
- Depth
- 475 mm
- RAL-number
- 9003
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481884077
- SAP 1200547337
- Code 82880305
