Mounting Plate Metal 300X800
Pricing
Request a quote
We reply within 24 hours
Product Description

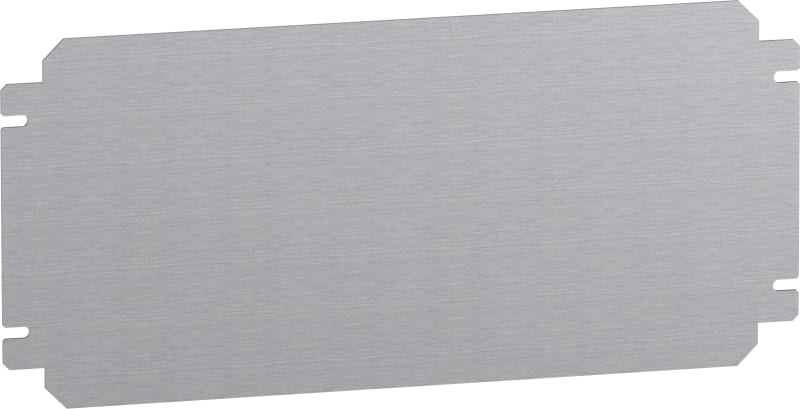

Schneider Electric NSYMM38SB Mounting plate metal 300x800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMM38SB
- EAN / GTIN
- 3606480520648
- Sales unit
- pcs
- Package quantity
- 80 pcs
- Dimensions
- 300×800 mm
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Bottom of enclosure
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT SBM SBM
- Device composition
- 1 mounting plate
- Material
- Galvanised steel
- Surface finish
- Metallic
- Fixing mode
- By 2 screws - screw type Ø5 mm self-tapping screws - bottom of enclosure location
- Permanent permissible load
- 12 kg back of the enclosure
- Height
- Nominal: 275 mm
- Width
- Nominal: 785 mm; Fixing centers: 764 mm
- Surface and useful surface
- Nominal: 240000 mm²
- thickness
- 2 mm
- Product weight
- 3.352 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Perforated
- Yes
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606480520648
- SAP 1000501758
- Code 8322872
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric thermal overload relays, TeSys Deca, 60...100A, class 20 LR9D5567
Schneider Electric
Schneider Electric additionnal EMC filter S1 S2 M3 - 3-Phase supply - 7 A VW3A31402
Schneider Electric
Mounting Plate 300X300
NSYMF33
Schneider Electric
Bremsemodstand 690V 60kW
VW3A7106
Schneider Electric
Display Micrologic X reserve
LV850054SP
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 3 poles, MicroLogic 2.2 trip unit 160A C25V32D160
Schneider Electric
Schneider Electric Contactor, TeSys Deca Advanced, 3P(3NO), AC-3/3E, <=440V, 18A, 24...60V AC/DC coil, snap-in terminals LC1D18ABNE
Schneider Electric

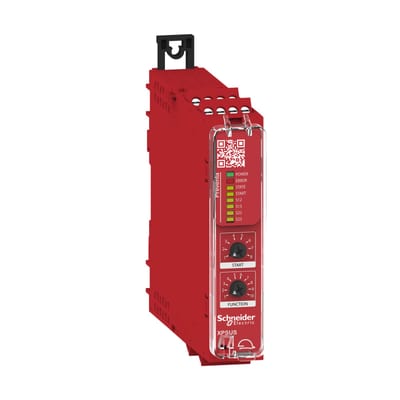

Schneider Electric XPSUS32AP Preventa Safety Relay Cat.4 48-240 V AC/DC
