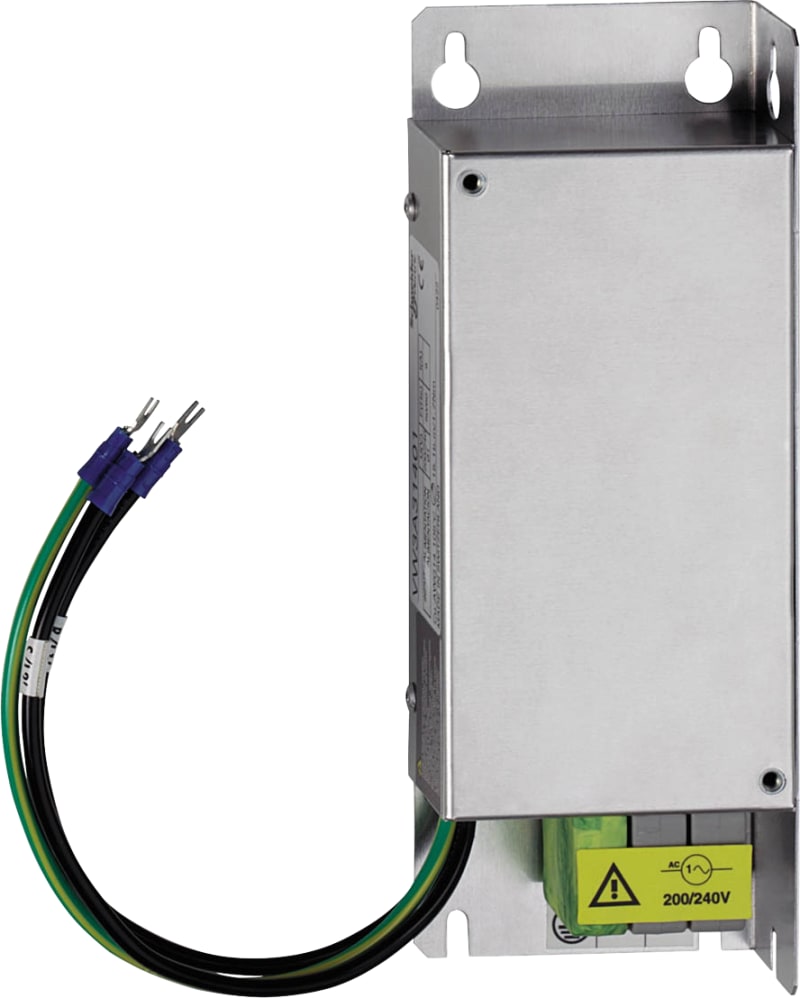

Schneider Electric additionnal EMC filter S1 S2 M3 - 3-Phase supply - 7 A VW3A31402

Schneider Electric VW3A31402 EMC filter ATV31, 3 X 230V, 7A.

Manufacturer part number (MPN)

VW3A31402

EAN / GTIN

3389110689020

Sales unit

pcs

Package quantity

7 pcs

Voltage

230 V

Range of product

Altivar

Product or component type

EMC input filter

Range compatibility

Lexium 05; Altivar 312 Solar; Altivar 312; Altivar Machine ATV320

Product compatibility

ATV312H018M3; ATV312H037M3; ATV312H055M3; ATV312H075M3; LXM05AD10M3X; LXM05BD10M3X; Variable speed drive ATV320...C motor: 0.18 kW, 200...240 V three phase; Variable speed drive ATV320...C motor: 0.37 kW, 200...240 V three phase; Variable speed drive ATV320...C motor: 0.55 kW, 200...240 V three phase; Variable speed drive ATV320...C motor: 0.75 kW, 200...240 V three phase

Product specific application

Radio interference input filter

[In] rated current

7 A

Thermal losses

2.6 W for ATV31H018M3X

Network number of phases

Three phase

maximum earth leakage current

7 mA 50 Hz

power supply voltage

200…240 V

Tolerance

10 %

Product weight

0.65 kg; 0.55 kg

IP degree of protection

IP20; IP41 (upper part)

Relative humidity

0…93 % conforming to IEC 68-2-3

Ambient air temperature for operation

-10…50 °C

Ambient air temperature for storage

-25…70 °C

Operating altitude

<= 1000 m without current derating; 1000...3000 m with current derating 1 % per 100 m

Vibration resistance

1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Standards

IEC 61800-3

Country of origin

TH

Warranty (in months)

18

Type of accessory/spare part

Filter

Accessory

Yes

Spare part

No

HS Code

8548.90

• EAN 3389110689020
• SAP 1000473329
• Code 8724022
