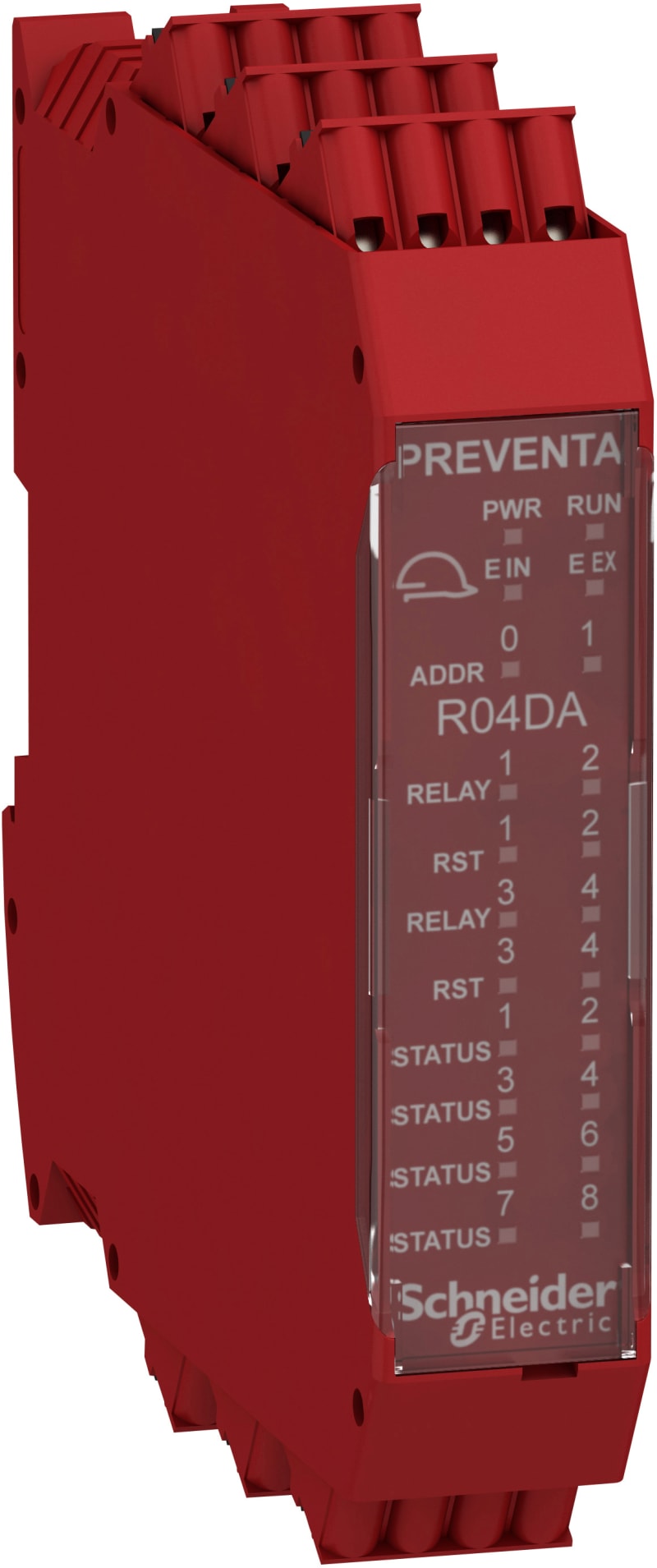

Schneider Electric 4 safety RO expansion with diag. out with backplane connection with spring term XPSMCMRO0004DAG

Schneider Electric XPSMCMRO0004DAG Safety Expansion Module with 4 sikkerhetsrelayoutput spring terminals +connector f/external.

Manufacturer part number (MPN)

XPSMCMRO0004DAG EAN / GTIN: 3606480748868 Sales unit: pcs Range of product: Preventa Safety automation Product or component type: Safe relay output module Device short name: XPSMCM Electrical connection: Spring terminal [Us] rated supply voltage: 24 V - 20...20 % DC Number of outputs: 4 relay Discrete output number: 8 solid state at 125 mA (diagnostics) Function of module: Monitoring safety actuators for relay output Maximum power dissipation in W: 3 W Integrated connection type: Backplane expansion bus Switching voltage: 10 V DC Associated fuse rating: 3.5 A, slow-blow Safety level: Can reach category 4 conforming to ISO 13849-1; Can reach PL = e conforming to ISO 13849-1; Can reach SIL 3 conforming to IEC 61508; SILCL 3 conforming to IEC 62061 Quality labels: CE Output type: Relay, 4 NO circuit(s), volt-free Quantity per set: 1 Switching time: 12 ms Maximum switching voltage: 400 V AC; 250 V DC minimum switching current: 20 mA Maximum switching current: 6 A Number of terminal blocks: 6 Local signalling: 1 LED green with PWR marking for power ON; 1 LED green with RUN marking for RUN (status); 1 LED red with E IN marking for internal error; 1 LED red with E EX marking for external error; 2 LEDs orange with ADDR marking for node address; 4 LEDs green/red with RELAY K1...K4 marking for relay contact; 4 LEDs yellow with RST marking for requires reset; 8 LEDs yellow with STATUS marking for diagnostics output Connections - terminals: 1 spring clamp terminals, removable terminal block; 2 spring clamp terminals, removable terminal block Cable cross section: 0.2…2.5 mm² - 24 AWG...14 AWG flexible cablewithout cable end; 0.25…2.5 mm² - 23 AWG...14 AWG flexible cablewith cable end, with bezel; 0.25…2.5 mm² - 23 AWG...14 AWG flexible cablewith cable end, without bezel; 0.2…2.5 mm² - 24 AWG...14 AWG solid cablewithout cable end; 0.5…1 mm² - 20 AWG...18 AWG flexible cablewith cable end, with double bezel Mounting support: Omega 35 mm DIN rail conforming to EN 50022 Width: 22.5 mm Height: 99 mm Depth: 114.5 mm Product weight: 0.33 kg Standards: ISO 13849-1; IEC 62061; IEC 61800-5-1; IEC 61508 Product certifications: TÜV; RCM; cULus IP degree of protection: IP20 Ambient air temperature for operation: -10…55 °C Ambient air temperature for storage: -20…85 °C Relative humidity: 10…95 % Pollution degree: 2 [Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 61800-5-1 Safety reliability data: B10d = 300000 utilisation category AC-15 230 V, , <3 A conforming to ISO 13849-1; B10d = 750000 utilisation category AC-15 230 V, , <1 A conforming to ISO 13849-1; B10d = 10000000 utilisation category DC-13 24 V, , <2 A conforming to ISO 13849-1 Insulation: 250 V AC between power supply and housing conforming to IEC 61800-5-1 Overvoltage category: II Electromagnetic compatibility: Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 Vibration resistance: +/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1 Shock resistance: 10 gn for 16 ms (1000 shocks on each axis) conforming to IEC 61496-1 Electrical durability: 20000000 cycles Mechanical durability: 20000000 cycles service life: 20 year(s) Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 4.5 cm Package 1 Width: 12.8 cm Package 1 Length: 16.2 cm Package 1 Weight: 312.0 g Unit Type of Package 2: S01 Number of Units in Package 2: 6 Package 2 Height: 15.0 cm Package 2 Width: 15.0 cm Package 2 Length: 40.0 cm Package 2 Weight: 2.114 kg Warranty (in months): 18 Supply voltage DC: 24 V Voltage type (supply voltage): DC Type of electric connection: Spring clamp connection SIL according to IEC 61508: 3 Performance level according to EN ISO 13849-1: Level e Country of origin: Italy

HS Code

8536.90

• EAN 3606480748868
• SAP 1200319920
• Code 82302096
