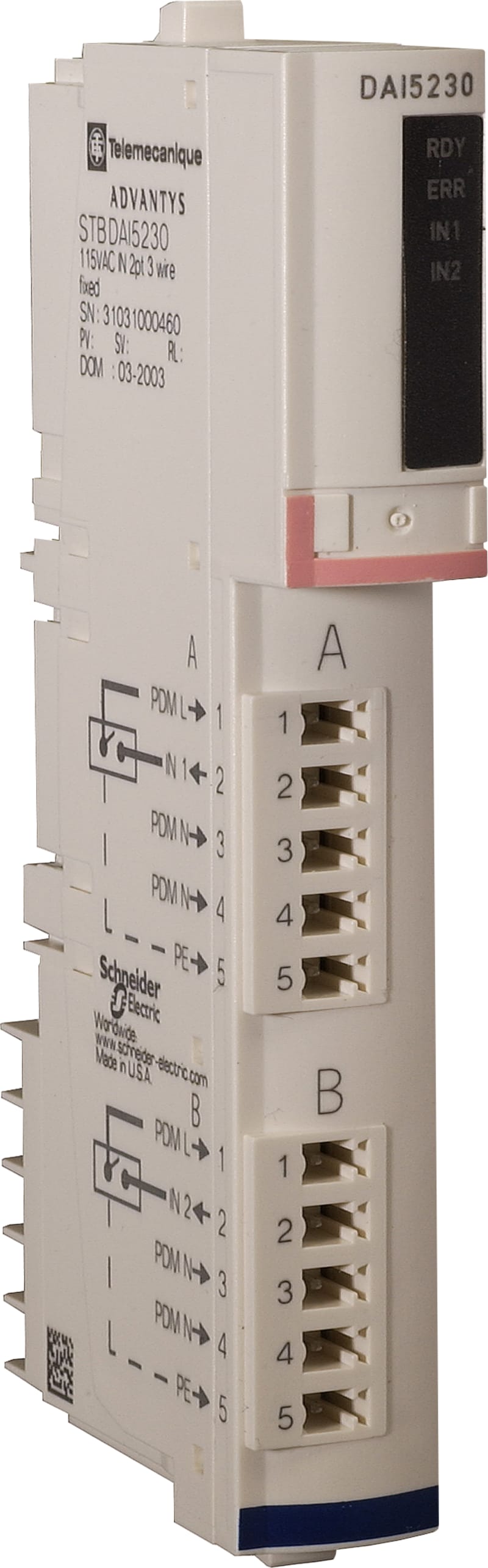

Schneider Electric standard digital input kit - Modicon STB - 115 V AC - 2 I STBDAI5230K

Schneider Electric STBDAI5230K STB kit 2 in 115VAC.

Manufacturer part number (MPN)

STBDAI5230K

EAN / GTIN

3595863989427

Sales unit

pcs

Voltage

115 V AC

Range of product

Modicon STB distributed I/O solution

Product or component type

Standard digital input kit

Kit composition

STBXTS2110, 5-terminal spring clamp connector; STBXBA2000 base; STBXTS1110, 5-terminal screw type connector; STBDAI5230 module

Product compatibility

I/O base STBXBA2000; Power distribution module STBPDT2100/2105

Discrete input number

2

Discrete input voltage

0...20 V for type 1; 74...132 V for type 1

Discrete input compatibility

2 type 1 at 115 V AC

Voltage state 1 guaranteed

At state 1: 74...132 V

Voltage state 0 guaranteed

0...20 V at state 0

Current state 1 guaranteed

>= 4 mA

Current state 0 guaranteed

<= 2 mA

Discrete input frequency

50 Hz (47…63 Hz); 60 Hz

Response time on input

1.5 ms (off to on); 1.5 ms (on to off)

Protection type

Input protection by resistor limited

Input protection type

Power protection integrated fuse on PDM time lag 10 A; Input protection resistor-limited

Current supplied by sensor

<= 60 mA per channel

Power supply type

Power distribution module

Typical current consumption

40 mA at 5 V DC for logic bus

Electrical connection

Screw terminal

Isolation between channels and bus

1780 Vrms for 1 minute

Local signalling

1 LED (green) for module status (RDY); 1 LED per channel (green) for channel status (IN1 to IN2); LED (red) for module error (ERR)

Overvoltage category

II

Height

18.4 mm

Width

125 mm

Depth

65.1 mm

Product weight

0.12 kg

IP degree of protection

IP20

Marking

CE

Product certifications

CSA; FM Class 1 Division 2; UL

Standards

EN/IEC 61131-2 type 1

Ambient air temperature for operation

0…60 °C (without derating)

Ambient air temperature for storage

-40…85 °C without derating

Relative humidity

95 % at 60 °C without condensation

Operating altitude

<= 2000 m

Pollution degree

2

Vibration resistance

3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail; +/- 3.5 mm (f = 10…58 Hz)

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Number of Units in Package 1

1

Number of Units in Package 2

28

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

AC/DC

Number of digital inputs

2

Digital inputs configurable

No

Digital outputs configurable

No

Input current at signal 1

2.5 mA

Type of voltage (input voltage)

AC/DC

Type of digital output

None

Type of output voltage

AC/DC

Short-circuit protection, outputs available

No

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

Yes

Supporting protocol for CAN

Yes

Supporting protocol for INTERBUS

Yes

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

Yes

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Screw connection

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
