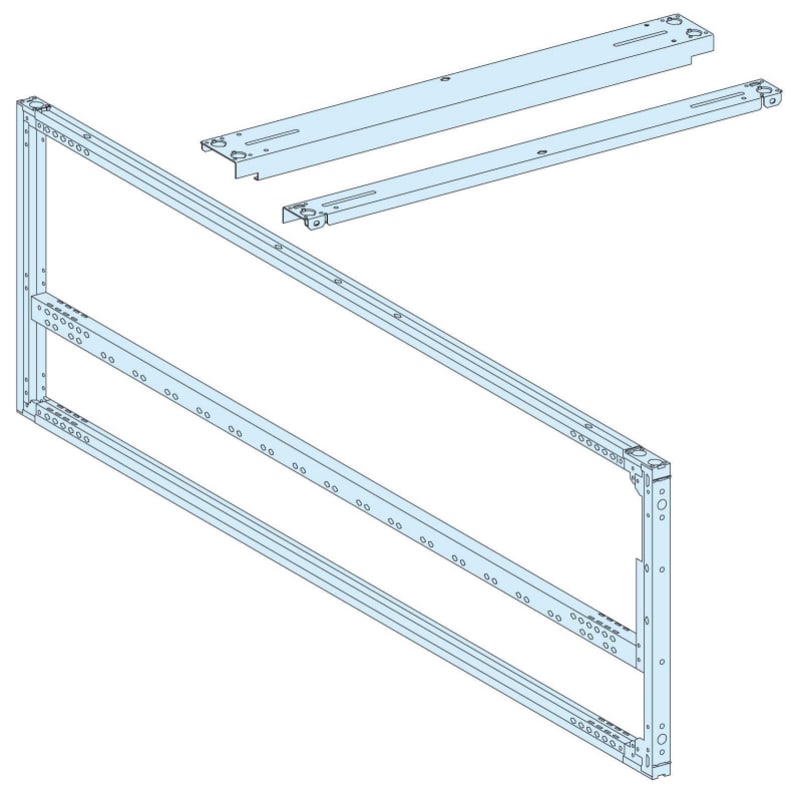

Schneider Electric PrismaSet P Framework, W = 300 mm, D = 600 mm LVS08603
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08603 Frame PrismaSeT P width 300mm-depth 600mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08603
- EAN / GTIN
- 3606481879264
- Sales unit
- pcs
- Width
- 300 mm
- Depth
- 600 mm
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Framework
- Range compatibility
- PrismaSeT PrismaSeT P duct
- Provided equipment
- Four cross-pieces; Mounting hardware; Side-by-side combination kit; Two frames
- Additional information
- Can be combined side by side and back to back
- Enclosure/cubicle description
- Duct - width 300 mm
- Quantity per set
- Set of 1
- Height
- 2000 mm
- Product weight
- 21.94 kg
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Standards
- IEC 62208
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481879264
- SAP 1200547305
- Code 82880498
Product Documentation
