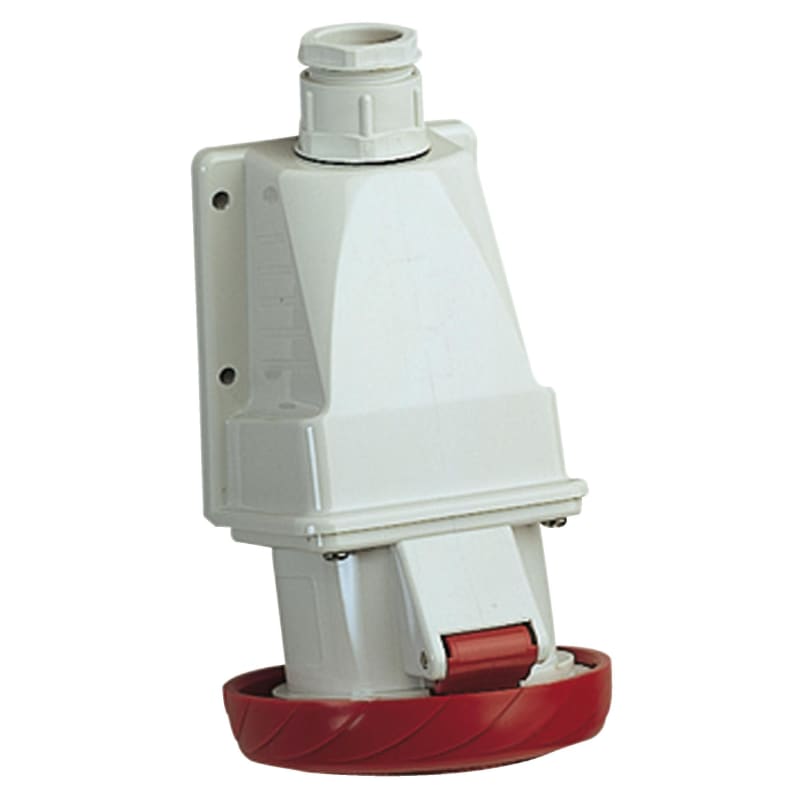

Walloutlet, 32A 4PJ 400V IP67 C
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKF32W7C4 PratiKa socket outlet for container - 32 A - 3P+E - 400.440 V AC - IP 67.
Technical Specifications
- Manufacturer part number (MPN)
- PKF32W7C4
- EAN / GTIN
- 3303432448950
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 400 V
- IP rating
- IP67
- Rated current
- 32 A
- Range of product
- PratiKa
- Product or component type
- Socket for container
- Device short name
- PratiKa socket
- Plug, socket category
- Low voltage
- Poles description
- 3P + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Wall-mounted
- [In] rated current
- 32 A
- [Ue] rated operational voltage
- 400...440 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 3 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Product weight
- 0.38 kg
- Height
- 191 mm
- Width
- 106 mm
- Depth
- 148 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Red
- Standards
- EN 60309-1; EN 60309-2
- IP degree of protection
- IP67 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s )
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303432448950
- SAP 1200500534
- Code 82623551
Product Documentation
