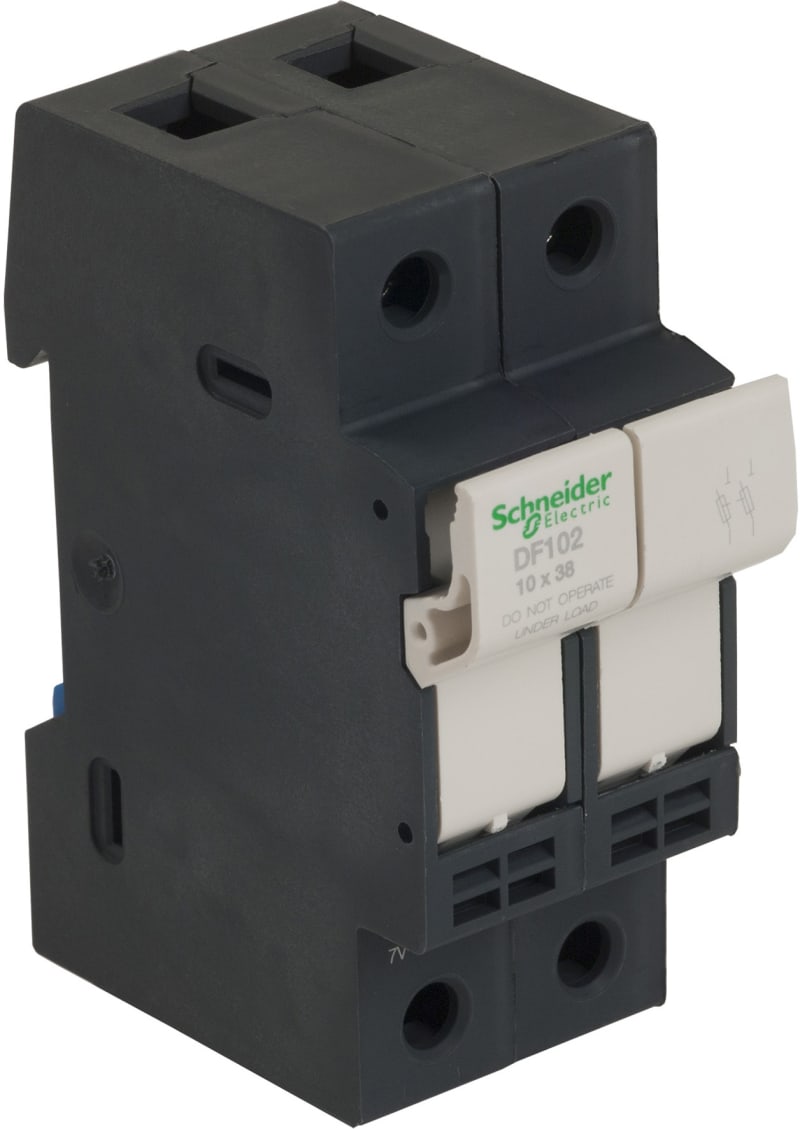

Schneider Electric Fuse carrier TeSys DF, 2P 32A, fuse size 10X38 mm DF102
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric DF102 Fuse holder 10x38 2P 32A.
Technical Specifications
- Manufacturer part number (MPN)
- DF102
- EAN / GTIN
- 3389119407236
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Rated current
- 32 A
- Number of poles
- 2P
- Range
- TeSys
- Product name
- TeSys DF
- Product or component type
- Fuse carrier
- Device short name
- DF10
- Product compatibility
- DF2CA fuse cartridge; DF2CN fuse cartridge
- Poles description
- 2P
- Fuse size
- 10 x 38 mm
- Fuse type
- 0…32 A, aM; 0…32 A, gG
- Control type
- Toggle padlockable
- Utilisation category
- AC-20B conforming to IEC 60947-3; DC-20B conforming to IEC 60947-3
- [Ue] rated operational voltage
- 690 V AC; 690 V DC
- [Ie] rated operational current
- 32 A at 400 V AC
- [Ith] conventional free air thermal current
- 32 A 20 °C
- [Ui] rated insulation voltage
- 690 V AC
- [Uimp] rated impulse withstand voltage
- 6 kV
- Overvoltage category
- III
- Short-circuit withstand
- 120 kA 400 V conforming to IEC 60947-3; 120 kA 500 V conforming to IEC 60947-3
- Power dissipation in W
- 3 W maximum power dissipation by fuse
- Standards
- EN/IEC 60947-3; EN/IEC 60269-2; UL 4248-1; CSA C22.2 No 4248-1; EN 45545-2: R22 HL2
- Product certifications
- IEC; UL recognized; CSA; CCC; EAC; DNV-GL
- Mounting support
- 35 mm symmetrical DIN rail
- Mounting position
- Vertical (tolerance: +/- 23°)
- Connections - terminals
- Screw clamp terminals 1 cable(s) 1…16 mm²rigid; Screw clamp terminals 2 cable(s) 1…6 mm²rigid; Screw clamp terminals 1 cable(s) 1…16 mm²flexible with or without; Screw clamp terminals 2 cable(s) 1…6 mm²flexible with or without
- Tightening torque
- 2.2 N.m - with screwdriver PZ2; 2.2 N.m - with screwdriver flat Ø 5.5 mm
- Height
- 79.5 mm
- Width
- 35 mm
- Depth
- 61 mm
- Product weight
- 0.085 kg
- Quantity per set
- Set of 6
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C with derating above 20°C
- Operating altitude
- 0...2000 m
- IP degree of protection
- IP20
- Pollution degree
- 3
- Fire resistance
- 960 °C conforming to IEC 60695-2-1
- Compatibility code
- DF10
- Country of origin
- FR
- Warranty (in months)
- 18
