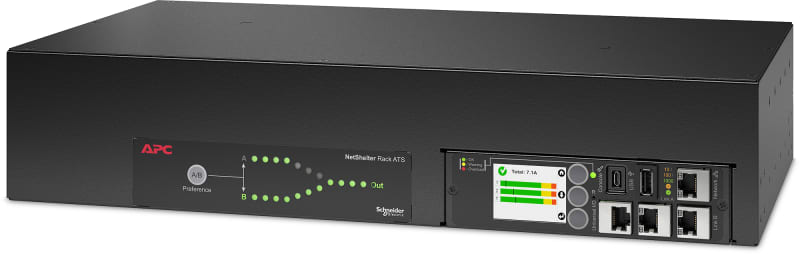

Schneider Electric APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz AP4424A

Schneider Electric AP4424A APC Automatic Transfer Switch 2U, 32A, 230V, Rack, in: 2x IEC 309, out: 16x C13 2x C19, 50/60 Hz.

Manufacturer part number (MPN)

AP4424A EAN / GTIN: 0731304432456 HS code: 8536.90 Sales unit: pcs minimum order quantity: 100 Voltage: 230 V Rated current: 32 A Main Input Voltage: 230 V AC 1 phase Product or component type: Automatic transfer switch Main Output Voltage: 230 V AC 1 phase Input Connection Type: IEC 60320 IEC 60309 32 A 2P + E; IEC 60320 Number of rack unit: 2U Cable length: 2.43 m Number of cables: 2 Provided equipment: Mounting hardware; Rack mounting brackets Colour: Black Height: 88 mm Width: 432 mm Depth: 236 mm Product weight: 6.94 kg Mounting location: Front; Rear Mounting preference: No preference mounting mode: Rack-mounted Mounting position: Horizontal Network frequency: 50/60 Hz permissible voltage: 207…253 V Load capacity: 7400 VA Max current draw: 32 A number of power socket outlets: 18 Protection type: Circuit breaker Product certifications: EN 55022 class A; FCC part 15 class A Standards: EN 55022 class A; FCC part 15 class A Ambient air temperature for operation: -5…45 °C Relative humidity: 5…95 % Operating altitude: 0...10000 ft Ambient air temperature for storage: -25…65 °C Storage Relative Humidity: 5…95 % Country of origin: PH Warranty (in months): 24

HS Code

8536.90

• EAN 0731304432456
• SAP 1200625168
• Code 83034956
