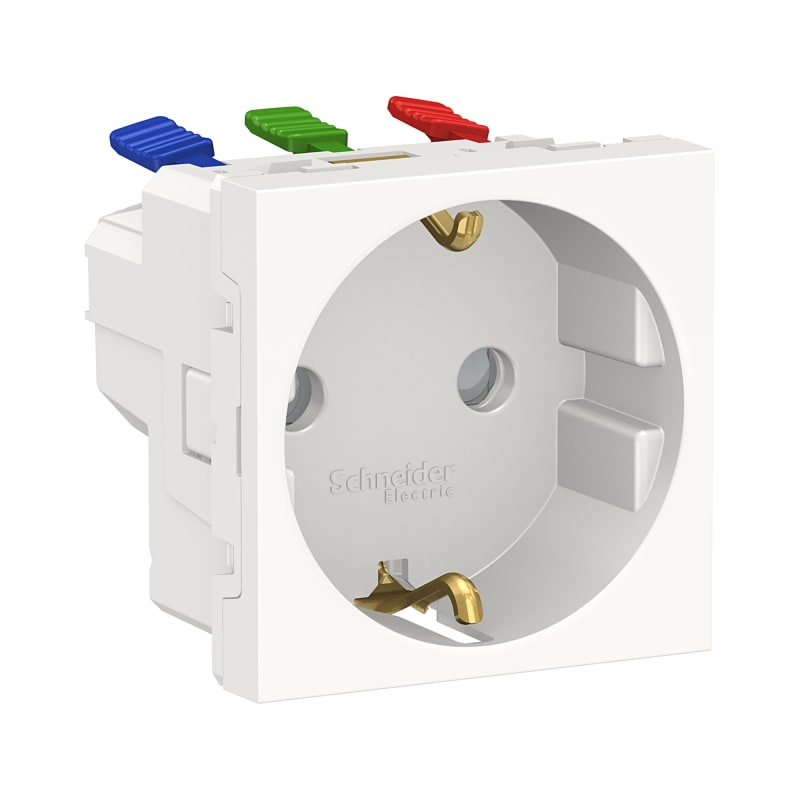

Socket outlet 2P+E (NU305718)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NU305718 Socket outlet 2P+E -16A - barnesikring quick-connect terminal white.
Technical Specifications
- Manufacturer part number (MPN)
- NU305718
- EAN / GTIN
- 3606489454197
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Nominal current
- 16 A
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with central cover plate
- Colour
- White
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Number of units
- 1
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- With signal lamp
- No
- Number of socket outlets
- 1
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- Yes
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- None
- Insulated mounting
- No
- Material
- Plastic
- Type of fastening
- Snap mounting (engagement)
- Imprint/indication
- None
- RAL-number (similar)
- 9003
- Impact strength
- IK04
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- No
- Suitable for degree of protection (IP)
- IP21
- Device width
- 45 mm
- Device height
- 45 mm
- Device depth
- 42 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- Number of modules (module system)
- 2
- IFTTT support available
- No
- Number of active contacts (round)
- 2
- Protective earth pin round
- Yes
- Min. depth of built-in installation box
- 40 mm
- With Wi-Fi signal repeater
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- With built-in bluetooth speaker
- No
- Number of loop throughs
- 1
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489454197
- SAP 1200495912
- Code 82624827
Product Documentation
