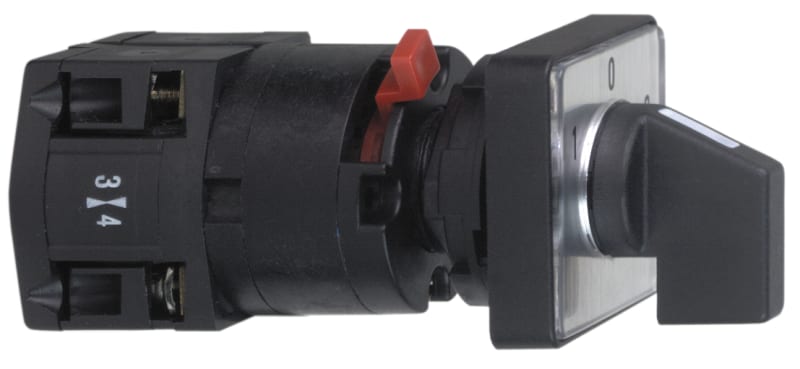

Step Switch 4 Steps 1-Pole

Schneider Electric K10D004NCH Cam Switch 4 steps 1-pole.

Manufacturer part number (MPN)

K10D004NCH

EAN / GTIN

3389110076622

Sales unit

pcs

Package quantity

65 pcs

Number of poles

1P

Range of product

Harmony K

Product or component type

Complete cam switch

Component name

K10

[Ith] conventional free air thermal current

10 A

Product mounting

Front mounting

fixing mode

Ø 16 or 22 mm hole

Cam switch head type

With front plate 30 x 30 mm

Type of operator

Black handle

Rotary handle padlocking

Without

Presentation of legend

With metallic legend, 1 - 2 - 3 - 4 black marking

Cam switch function

Stepping switch

Return

Without

Off position

Without Off position

Poles description

1P

Switching positions

Right: 270° - 330° - 30° - 90°

IP degree of protection

Contact block: IP20; Operating head: IP65 conforming to IEC 60529

Number of steps

4

Switching angle

60 °

[Ui] rated insulation voltage

440 V (pollution degree 3) conforming to IEC 60947-1

Rated operational power in W

370 W AC-23A, 110/120 V 1 phase; 750 W AC-23A, 220/240 V 1 phase

Rated power in hp

0.33 hp at 110/120 V AC, 1 phase; 0.75 hp at 220/240 V AC, 1 phase

[Ie] rated operational current AC

10 A at 400 V AC-1; 10 A at 400 V AC-21A; 3 A at 240 V AC-15; 6 A at 120 V AC-15

[Ie] rated operational current DC

10 A at 24 V resistive load; 0.3 A at 220 V resistive load; 0.7 A at 110 V resistive load

Electrical durability

100000000 cycles

Short-circuit protection

10 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Contact operation

Slow-break

Electrical connection

Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm²

Mechanical durability

1000000 cycles

CAD overall width

30 mm

CAD overall height

30 mm

CAD overall depth

88 mm

Product weight

0.045 kg

Standards

CENELEC EN 50013; EN/IEC 60947-3; EN/IEC 60947-5-1

Product certifications

CULus

Protective treatment

TC

Ambient air temperature for operation

-20…55 °C

Ambient air temperature for storage

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

Number of Units in Package 1

1

Number of Units in Package 2

65

Country of origin

AT

Warranty (in months)

18

Model

Level switch

Rated permanent current Iu

10 A

Rated operation current Ie at AC-3, 400 V

2 A

With zero (off) position

No

With retraction in 0-position

No

Degree of protection (IP), front side

IP65/IP67

Type of electrical connection of main circuit

Screw connection

Type of control element

Short rotary handle

Suitable for floor mounting

No

Suitable for front mounting

Yes

Suitable for distribution board installation

No

Suitable for intermediate mounting

No

Complete device in housing

Yes

HS Code

8536.50
