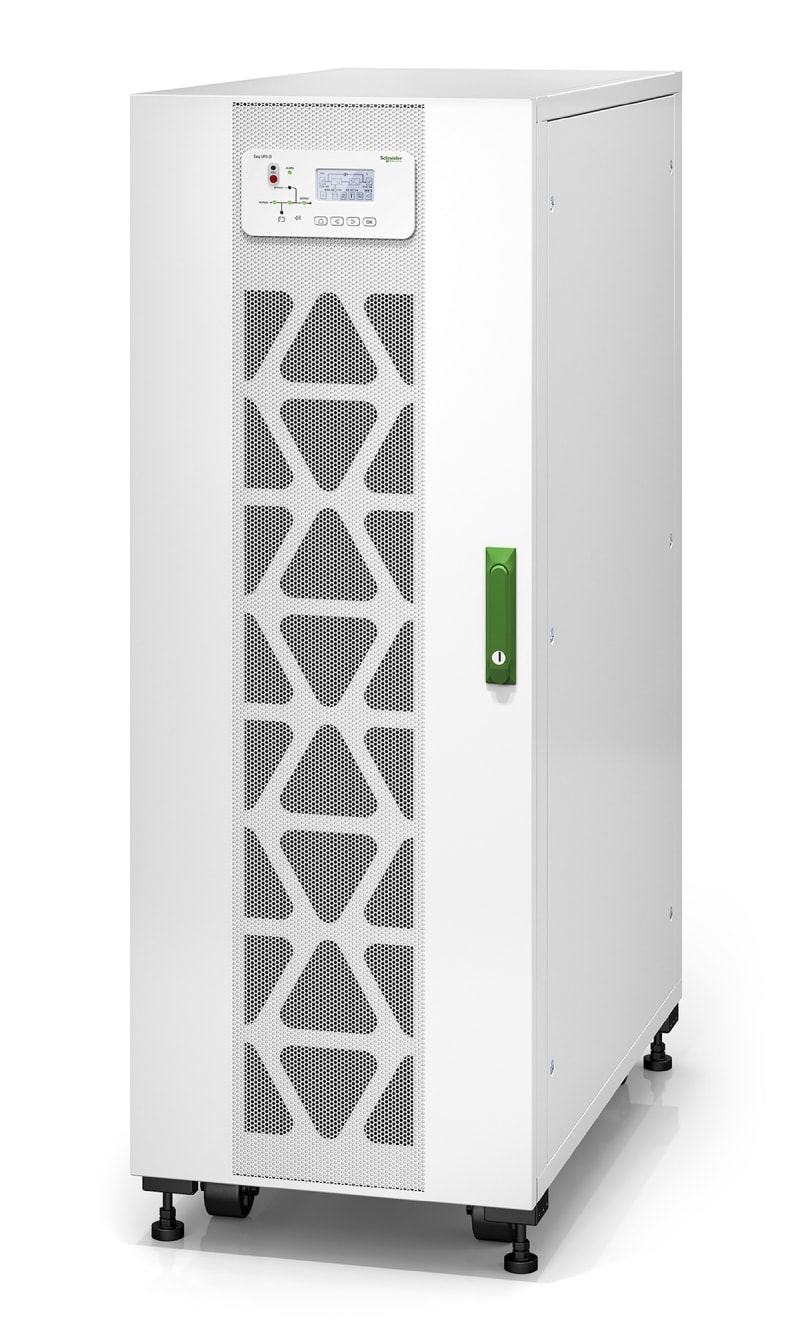

3-Phase Easy UPS 30KVA 400V 3:3 Tower

Schneider Electric E3SUPS30KHB Easy UPS 3S 30kVA 400V 3:3 for internal batteries, Modbus, potential-free relay.

Manufacturer part number (MPN)

E3SUPS30KHB

EAN / GTIN

0731304340812

Sales unit

pcs

Voltage

400 V

Presentation

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.

Main input voltage

400 V AC 3 phases; 380 V AC 3 phases; 415 V AC 3 phases

Other input voltage

380 V; 415 V

Maximum input current

55 A

Input harmonic distortion

Less than 3 % for full load

Load power factor

0.9 leading to 0.9 lagging

Cos phi

0.99

Efficiency at full load

304...477 V

Input frequency

45...65 Hz

Output voltage

400 V AC 3 phases; 380 V AC 3 phases; 415 V AC 3 phases

Other output voltage

380 V; 415 V

Rated power in W

30 kW

Rated power in VA

30 kVA

Harmonic distortion

Less than 3 %

Maximum configurable power in VA

30 kVA

Maximum configurable power in W

30 kW

Output harmonic distortion

< 3% linear load

Output voltage tolerance

+/- 1.5 %

UPS topology

Double conversion online

Output frequency

50 Hz sync to mains; 60 Hz sync to mains

Efficiency

View Efficiency Graph

Maximum short-circuit current

10 kA

Battery type

Lead-acid internal

UPS connectivity

Optional network management card 3

Color

White (RAL 9003)

Height

140 cm

Width

50 cm

Depth

96.9 cm

Product weight

152 kg

USB compatible

Yes

Provided equipment

Dust filter; Installation guide

Range of product

Easy UPS 3S

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; EAC; RCM

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…40 °C

Storage altitude

0…15240 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

63 dBA

Heat dissipation

1410 W

Operating altitude

0...3333 ft

Battery voltage

240 V

Included battery module

0

Empty battery slot

4

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

164.000 cm

Package 1 Width

68.300 cm

Package 1 Length

111.400 cm

Package 1 Weight

189.999 kg

Country of origin

CN

Warranty (in months)

12

HS Code

8504.40
