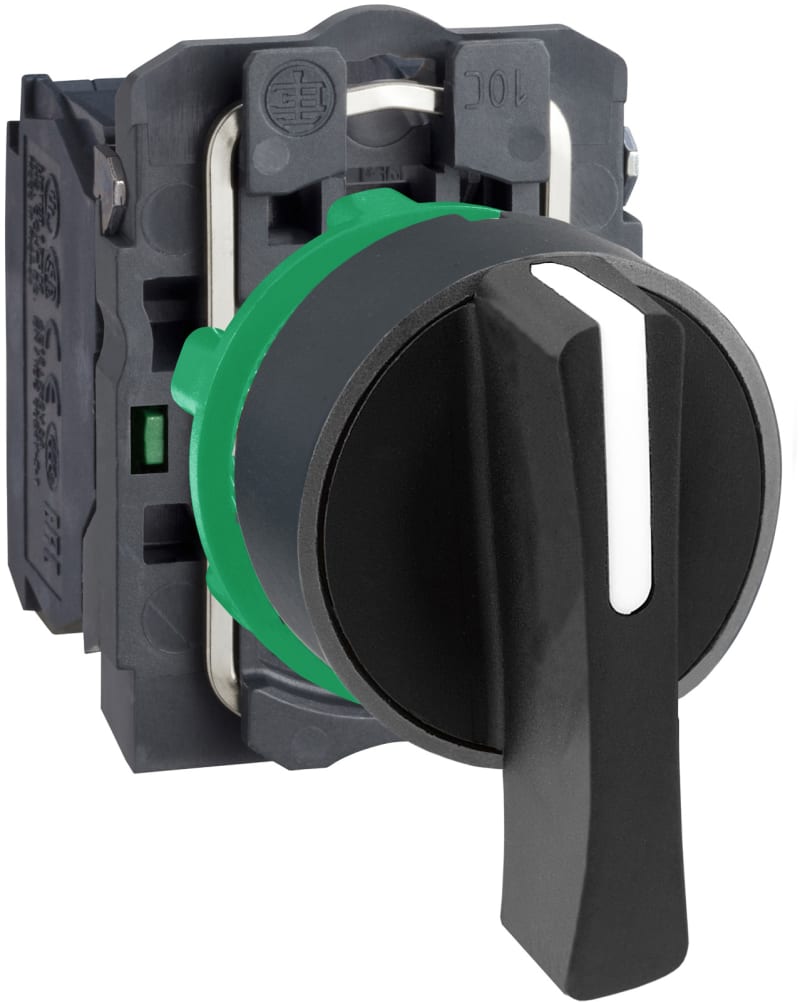

Selector switch 3 Fixed positions 2NO Long

Schneider Electric XB5AJ33 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. 22mm, selector switches and switches - complete in plastic.

Manufacturer part number (MPN)

XB5AJ33

EAN / GTIN

3389110903522

Sales unit

pcs

Package quantity

5 pcs

Contact configuration

2 NO

Range of product

Harmony XB5

Product or component type

Selector switch

Device short name

XB5

Bezel material

Dark grey plastic

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

stay put

Operator profile

Black long handle

Operator position information

3 positions +/- 45°

Contacts type and composition

2 NO

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Height

48 mm

Width

30 mm

Depth

70 mm

Terminals description ISO n°1

(13-14)NO

Product weight

0.053 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Contacts usage

Standard contacts

Positive opening

Without

Torque value

0.14 N.m NO changing electrical state

Mechanical durability

1000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4

Device presentation

Complete product

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

IP degree of protection

IP67 conforming to IEC 60529; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK04 conforming to IEC 50102

Standards

UL 508; JIS C8201-5-1; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-4; JIS C8201-1

Product certifications

BV; UL; CSA; DNV; LROS (Lloyds register of shipping)

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

150

Number of Units in Package 3

1200

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Black

Number of switch positions

3

Suitable for lighting

No

Spring-return

No

Colour front ring

Black

Type of electric connection

Screw connection

Degree of protection (IP)

IP67/IP69K

With light source

No

Material front ring

Plastic

With front ring

Yes

Type of control element

Long rotary handle

Switching function latching

Yes

Number of contacts as normally open contact

2

HS Code

8536.50
