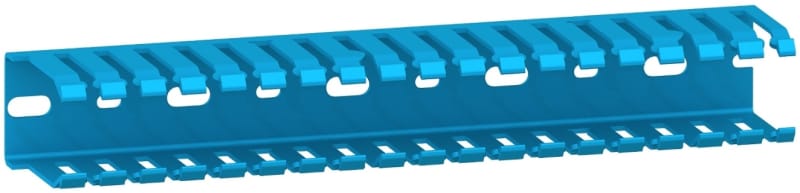

Schneider Electric Cable duct - 90 x 60 mm - without cover - blue AK2GA69
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AK2GA69 Cable Trunking.
Technical Specifications
- Manufacturer part number (MPN)
- AK2GA69
- EAN / GTIN
- 3389110570564
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Product or component type
- Cable duct
- Accessory / separate part category
- Cabling accessories
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLA; PanelSeT PLS; PanelSeT PLM
- Device composition
- Without cover
- Quantity per set
- Set of 8
- Colour
- Blue (RAL 5000)
- fixing mode
- Clip-on support; By screws
- Material
- PVC (polyvinyl chloride)
- Height
- 90 mm
- Length
- 2000 mm
- Width
- 60 mm
- Product weight
- 1.2 kg
- Total number of wires
- 400
- Ambient air temperature for operation
- -5…60 °C
- Flame retardance
- V-0 conforming to UL 94
- Fire resistance
- 960 °C conforming to IEC 60695-2-1/1
- Standards
- NF C 68-102; VDE 0506; VDE 0660; DIN 43659
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.600 cm
- Package 1 Width
- 14.500 cm
- Package 1 Length
- 200.000 cm
- Package 1 Weight
- 1.075 kg
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 8
- Package 2 Height
- 14.000 cm
- Package 2 Width
- 18.000 cm
- Package 2 Length
- 200.500 cm
- Package 2 Weight
- 8.600 kg
- Unit Type of Package 3
- PAL
- Number of Units in Package 3
- 304
- Package 3 Height
- 103.000 cm
- Package 3 Width
- 120.000 cm
- Package 3 Length
- 201.000 cm
- Package 3 Weight
- 663.200 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Halogen free
- No
- Flexible
- No
- Type of side wall
- Slotted
- RAL-number
- 5000
- Self-extinguishing
- Yes
- Type of fastening
- Bottom perforation
- Usable cross section
- 1.5 mm²
- With cover
- No
