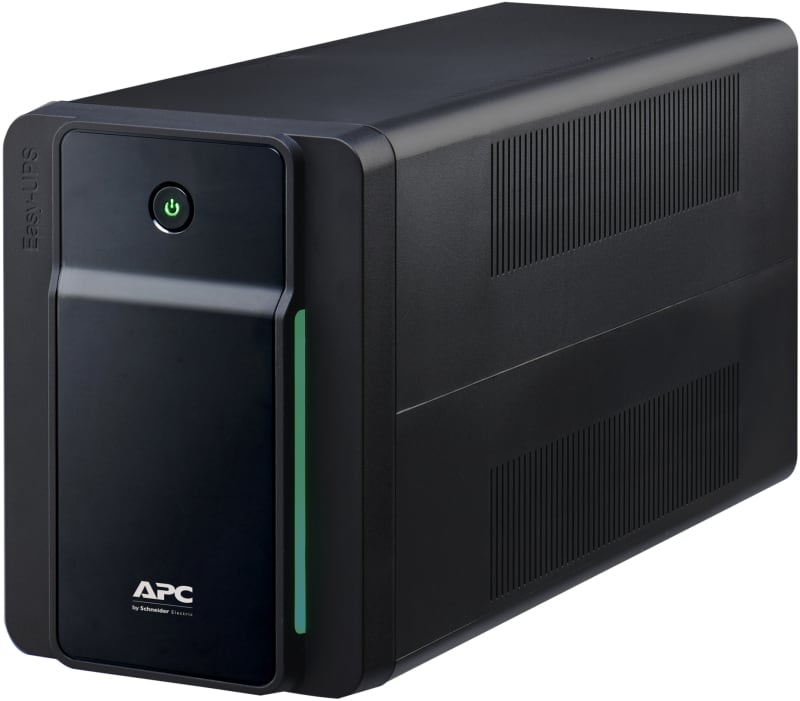

Schneider Electric APC Easy UPS BVX2200LI-GR 2200 VA Tower 230 V 4× Schuko
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BVX2200LI-GR is an APC Easy UPS BVX tower rated 2200 VA / 1200 W at 230 V, with four CEE 7/3 Schuko outputs and automatic voltage regulation (AVR). Line-interactive topology with stepped-approximation waveform and 6 ms typical transfer time; full-load runtime 1 min at 1200 W; internal 9.0 Ah lead-acid battery. LED status display; floor-mount tower, 12.2 kg, 190 × 140 × 390 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BVX2200LI-GR
- EAN / GTIN
- 0731304404620
- Sales unit
- pcs
- Main input voltage
- 230 V AC 1 phase
- Input connection
- CEE 7/7
- Cos phi
- 0.54
- Efficiency at full load
- 140...300 V 230 V AC
- Input frequency
- 50/60 Hz +/- 5 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Rated power in W
- 1200 W
- Rated power in VA
- 2200 VA
- Output connection
- 4 CEE 7/3
- Type of USB power supply
- None
- Maximum configurable power in VA
- 2200 VA
- Maximum configurable power in W
- 1200 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Stepped approximation to a sinewave
- Full load runtime
- 00:01:00 1200 W
- Half load runtime
- 00:08:30 600 W
- Output frequency
- 50/60 Hz +/- 1 Hz sync to mains
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery capacity
- 9.0 Ah
- Battery type
- Lead-acid internal included
- Control panel
- LED Status display with on line : on battery
- Surge energy rating
- 273 J
- Cable length
- 1.2 m
- Number of cables
- 1
- Color
- Black
- Height
- 190 mm
- Width
- 140 mm
- Depth
- 390 mm
- Product weight
- 12.2 kg
- Mounting support
- Floor
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- No
- Provided equipment
- User manual
- Max runtime
- 240 min
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Easy UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; CB
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…40 °C
- Storage altitude
- 0…3000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 40 dBA
- Operating altitude
- 0...3000 m
- Battery voltage
- 24 V
- Battery graph comment
- Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 8 h
- Battery life
- 2…3 year(s)
- Number of Units in Package 1
- 1
- SCC14
- 10731304404627
- Warranty (in months)
- 24
- Country of origin
- China
