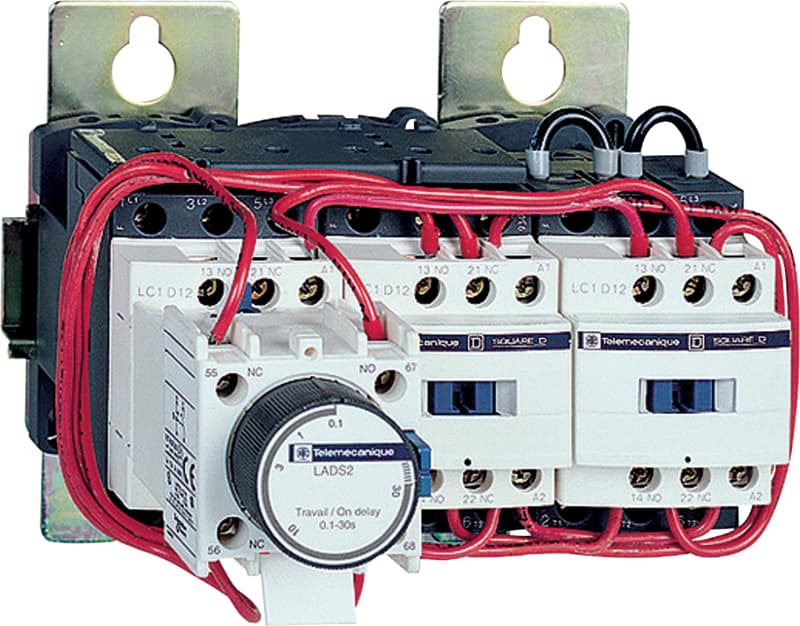

Schneider Electric TeSys D - star delta starter - 3 x 3P (3 NO) - 80 A - 220 V AC coil LC3D80M7

Schneider Electric LC3D80M7 Star-/Delta 80A 220VAC.

Manufacturer part number (MPN)

LC3D80M7 EAN / GTIN: 3389110094367 Sales unit: pcs Range: TeSys Product name: TeSys Deca Product or component type: Star delta starter Device short name: LC3D Contactor application: Motor control Utilisation category: AC-3 Device presentation: Pre-wired Poles description: 3 x 3P power pole contact composition: 3 x 3 NO [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit Motor power kW: 37 kW at 220/230 V AC 50/60 Hz; 75 kW at 380/400 V AC 50/60 Hz; 75 kW at 415 V AC 50/60 Hz; 75 kW at 440 V AC 50/60 Hz Control circuit type: AC at 50/60 Hz [Uc] control circuit voltage: 220 V AC 50/60 Hz Auxiliary contact composition: 1 NC for KM2 line contactor; 1 NO for KM3 delta contactor [Uimp] rated impulse withstand voltage: 8 kV conforming to IEC 60947 Overvoltage category: III [Ui] rated insulation voltage: Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Signalling circuit: 600 V CSA certified; Signalling circuit: 600 V UL certified; Power circuit: 1000 V conforming to IEC 60947-4-1; Signalling circuit: 1000 V conforming to IEC 60947-1 Electrical durability: 10 Mcycles 80 A AC-3 at Ue <= 440 V Mounting support: Plate Standards: UL 508; IEC 60947-4-1; EN 60947-5-1; IEC 60947-5-1; CSA C22.2 No 14; EN 60947-4-1 Product certifications: DNV; GOST; GL; UL; LROS (Lloyds register of shipping); CCC; CSA; BV; RINA Connections - terminals: Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 4…50 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 4…25 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 4…50 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 4…16 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 4…50 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 4…25 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end Tightening torque: Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 12 N.m - on screw clamp terminals - with screwdriver flat Ø 6...8 mm Mechanical durability: 4 Mcycles Maximum operating rate: 30 cyc/h 60 °C Starting time: 30 s Coil technology: Without built-in suppressor module Control circuit voltage limits: Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <55 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <55 °C) Inrush power in VA: 140 VA 60 Hz cos phi 0.75 (at 20 °C); 160 VA 50 Hz cos phi 0.75 (at 20 °C) Hold-in power consumption in VA: 13 VA 60 Hz cos phi 0.3 (at 20 °C); 15 VA 50 Hz cos phi 0.3 (at 20 °C) Heat dissipation: 4…5 W at 50/60 Hz Auxiliary contacts type: Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC; Mirror contact conforming to IEC 60947-4-1 3 x 1 NC Signalling circuit frequency: 25...400 Hz minimum switching current: 5 mA for signalling circuit minimum switching voltage: 17 V for signalling circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact Width: 311 mm Height: 143 mm Depth: 183 mm Product weight: 5.2 kg Insulation resistance: > 10 MOhm for signalling circuit IP degree of protection: IP20 front face conforming to IEC 60529 Protective treatment: TH conforming to IEC 60068-2-30 Pollution degree: 3 Ambient air temperature for storage: -60…80 °C Ambient air temperature for operation: -40…60 °C; 60…70 °C with derating Operating altitude: 3000 m Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Vibrations contactor open: 2 Gn, 5...300 Hz; Shocks contactor open: 8 Gn for 11 ms; Vibrations contactor closed: 3 Gn, 5...300 Hz; Shocks contactor closed: 10 Gn for 11 ms Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 28.500 cm Package 1 Width: 23.500 cm Package 1 Length: 40.500 cm Package 1 Weight: 6.266 kg Unit Type of Package 2: P06 Number of Units in Package 2: 6 Package 2 Height: 75.000 cm Package 2 Width: 60.000 cm Package 2 Length: 80.000 cm Package 2 Weight: 45.596 kg Warranty (in months): 18 Function: Star-delta contactor Rated operation power at AC-3, 400 V: 75 kW Number of normally open contacts as main contact: 3 Number of auxiliary contacts as normally closed contact: 1 Rated operation current Ie at AC-3, 400 V: 80 A Suitable for rail mounting: No Rated control supply voltage AC 50 Hz: 220 V Rated control supply voltage AC 60 Hz: 220 V Voltage type (operating voltage): AC Degree of protection (IP): IP20 Type of electrical connection of main circuit: Screw connection Operating voltage AC 50 Hz: 440 V Operating voltage AC 60 Hz: 440 V Voltage type for actuating: AC Country of origin: France

HS Code

8536.49

• EAN 3389110094367
• SAP 1000012115
• Code 8111095
