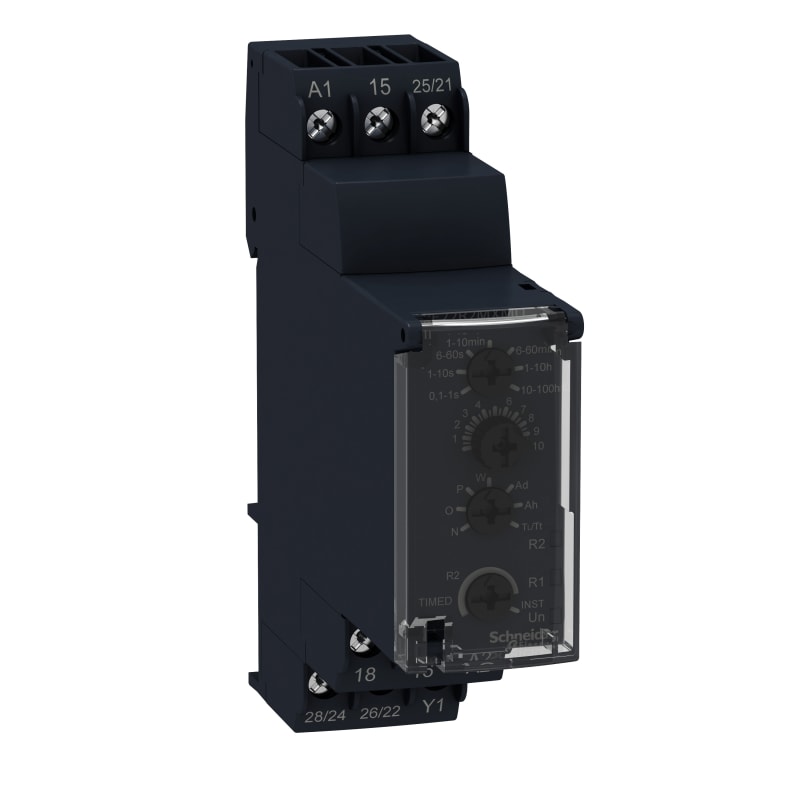

Schneider Electric Multifunction Timer Relay - 12..240 V AC/DC - 2 C/O RE22R2MMW

Schneider Electric RE22R2MMW Time relay 22,5mm multifunction 0,1s-100t 2 C/O 8A 12-240V AC/DC.

Manufacturer part number (MPN)

RE22R2MMW EAN / GTIN: 3606480676574 HS code: 8536.90 Sales unit: pcs Package quantity: 40 pcs Range of product: Harmony Timer Relays Discrete output type: Relay Product or component type: Modular timing relay Device short name: RE22 nominal output current: 8 A Contacts type and composition: 1 C/O timed contact; 1 C/O timed or instantaneous contact Time delay type: Power on-delay; On-delay and off-delay; Interval; Off-delay; Symmetrical flashing Time delay range: 0.1...1 s; 6...60 s; 1...10 h; 1...10 min; 1...10 s; 10...100 h; 6...60 min Control type: Rotary knob front panel [Us] rated supply voltage: 12...240 V AC/DC Voltage range: 0.85...1.1 Us Supply frequency: 50...60 Hz +/- 5 % Connections - terminals: Screw terminals, 2 x 1.5 mm² with cable end; Screw terminals, 2 x 2.5 mm² without cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Repeat accuracy: +/- 0.5 % conforming to IEC 61812-1 Temperature drift: +/- 0.05 %/°C Voltage drift: +/- 0.2 %/V Setting accuracy of time delay: +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 Control signal pulse width: 30 ms; 100 ms under load Insulation resistance: 100 MOhm at 500 V DC conforming to IEC 60664-1 Recovery time: 120 ms on de-energisation Immunity to microbreaks: 10 ms Power consumption in VA: 3 VA at 240 V AC Power consumption in W: 1.5 W at 240 V DC breaking capacity: 2000 VA minimum switching current: 10 mA at 5 V Maximum switching current: 8 A Maximum switching voltage: 250 V Electrical durability: 100000 cycles for resistive load, 8 A at 250 V, AC Mechanical durability: 10000000 cycles Rated impulse withstand voltage: 5 kV for 1.2…50 µs conforming to IEC 60664-1; 5 kV conforming to IEC 61812-1 Power on delay: 100 ms Safety reliability data: B10d = 230000; MTTFd = 251.1 years Mounting position: Any position in relation to normal vertical mounting plane Mounting support: 35 mm DIN rail conforming to IEC 60715 Status LED: LED green (flashing) for timing in progress; LED green (steady) for power ON; LED yellow for relay energised Function available: A- Power on-delay relay-2 C/O; Ac- On-delay and off-delay relay w/ control signal-2 C/O; At- Power on-delay relay w/ pause/summation (Y1)-2 C/O; B- Single interval relay w/ control signal-2 C/O; Bw- Double interval relay w/ control signal-2 C/O; C- Off-delay relay w/ control signal-2 C/O; D- Symmetrical flashing relay (starting pulse-off)-2 C/O; Di- Symmetrical flashing relay (starting pulse-on)-2 C/O; H- Interval relay-2 C/O; Ht- Interval relay w/ pause/summation (Y1)-2 C/O Width: 22.5 mm Product weight: 0.093 kg Number of functions: 10 Dielectric strength: 2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1 Standards: IEC 61812-1; IEC 61000-6-2; IEC 61000-6-1; IEC 61000-6-4; IEC 61000-6-3 Directives: 2004/108/EC - electromagnetic compatibility; 2006/95/EC - low voltage directive Product certifications: CSA; CE; cULus; GL; RCM; CCC; EAC Ambient air temperature for operation: -20…60 °C Ambient air temperature for storage: -30…60 °C IP degree of protection: IP40 housing: conforming to IEC 60529; IP20 terminal block: conforming to IEC 60529; IP40 front face: conforming to IEC 60529 Vibration resistance: 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Relative humidity: 93 %, without condensation conforming to IEC 60068-2-30 Electromagnetic compatibility: Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2; Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4; Fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4; Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5; Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5; Radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6; Electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3; Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11; Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11; Conducted and radiated emissions class B conforming to EN 55022 Number of Units in Package 1: 1 Number of Units in Package 2: 40 Country of origin: ID Warranty (in months): 18
