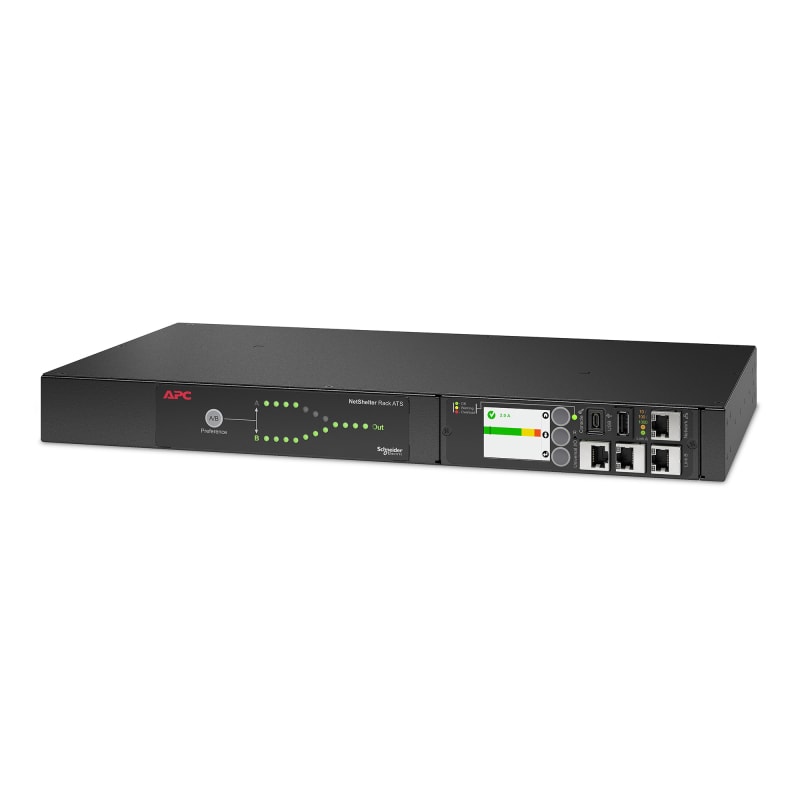

Schneider Electric APC Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, C14 IN, 12 C13 OUT, 50/60Hz AP4421A

Schneider Electric AP4421A APC Automatic Transfer Switch 1U, 10A, 230V, Rack, in: 1x C14, out: 12x C13, 50/60Hz.

Manufacturer part number (MPN)

AP4421A EAN / GTIN: 0731304432425 HS code: 8536.90 Sales unit: pcs minimum order quantity: 100 Voltage: 230 V Rated current: 10 A Main Input Voltage: 230 V AC 1 phase Product or component type: Automatic transfer switch Main Output Voltage: 230 V AC 1 phase Input Connection Type: IEC 60320 C14 10 A 2P + E Number of rack unit: 1U Provided equipment: Mounting hardware; Rack mounting brackets Colour: Black Height: 44 mm Width: 432 mm Depth: 236 mm Product weight: 3.93 kg Mounting location: Front Mounting preference: No preference mounting mode: Rack-mounted Mounting position: Horizontal Network frequency: 50/60 Hz [In] rated current: 10 A permissible voltage: 207…253 V Max line current: 10 A Load capacity: 2000 VA Number of power socket outlets: 12 IEC 60320 C13 10 A 2P + E Protection type: Without circuit breaker Product certifications: EN 55022 class A; FCC part 15 class A Standards: EN 55022 class A; FCC part 15 class A Ambient air temperature for operation: -5…45 °C Relative humidity: 5…95 % Operating altitude: 0...10000 ft Ambient air temperature for storage: -25…65 °C Storage Relative Humidity: 5…95 % Storage altitude: 0…15240 m Country of origin: PH Warranty (in months): 24

HS Code

8536.90

• EAN 0731304432425
• SAP 1200625166
• Code 83034952
