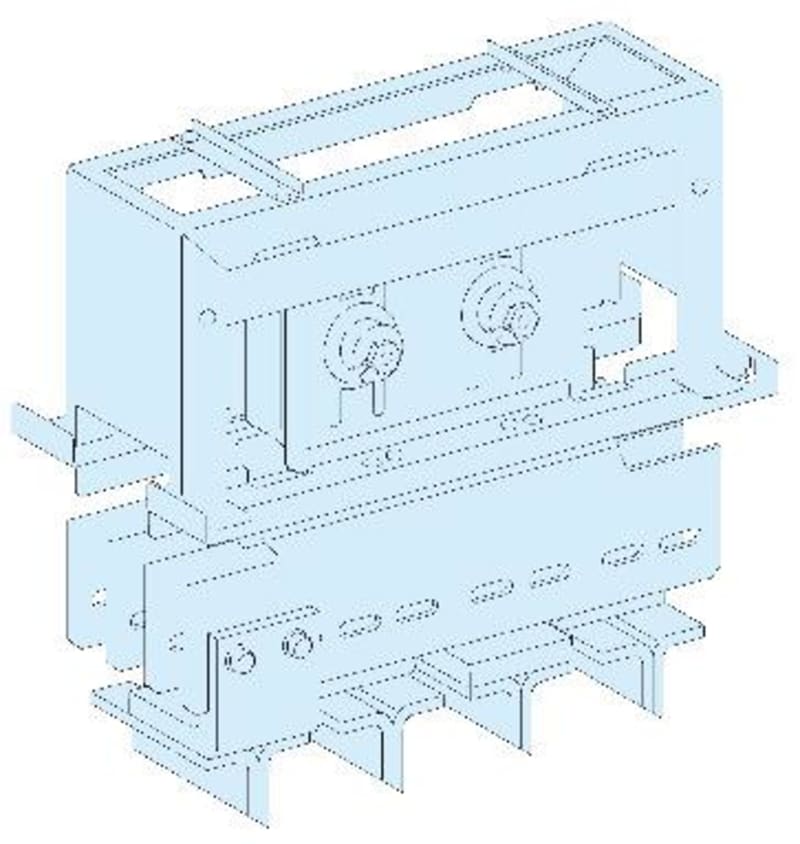

Canalis Connection 2500A MTZ2 4P Prisma
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04726 Canalis Connection 2500A MTZ2 4P for PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04726
- EAN / GTIN
- 3606481868206
- Sales unit
- pcs
- Rated current
- 2500 A
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Interface and connection Canalis
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Interface accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1
- Product certifications
- ASTA
- Cubicle-device connection
- KT with Canalis
- Poles description
- 4P
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 600 mm: front; 600 + 400 mm: rear
- Installed device
- Masterpact: drawout NW20...25 - control: toggle vertical installation; Masterpact: fixed NW20...25 - control: toggle vertical installation
- [Ie] rated operational current
- 2500 A
- Colour
- Natural
- Height
- 350 mm
- Width
- 575 mm
- Depth
- 450 mm
- Product weight
- 62.42 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 4P 1 front connection on Canalis 28; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 4P 1 rear connection on Canalis 17; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 4P 1 front connection on Canalis 28; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 4P 1 rear connection on Canalis 16
- Warranty (in months)
- 18
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481868206
- SAP 1200547039
- Code 82879240
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys GV3 - auxiliary contact block - 2 NO GVAED101
Schneider Electric

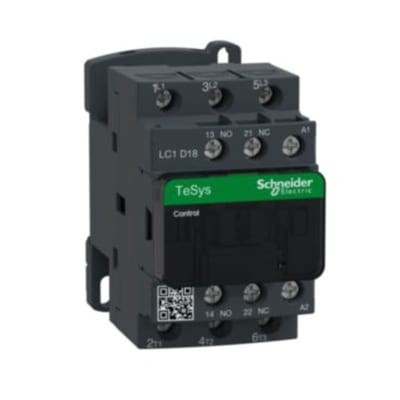

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 115V AC 50/60Hz coil, screw clamp terminals LC1D18FE7
Schneider Electric

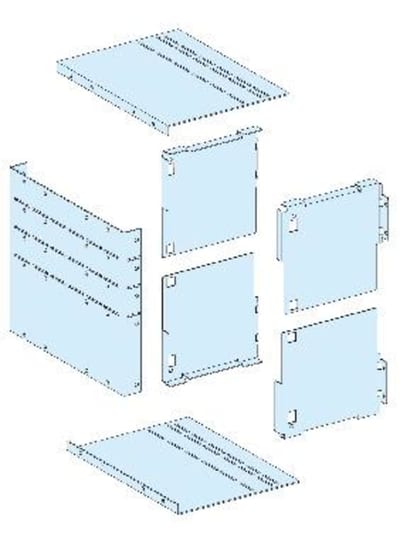

Schneider Electric PrismaSeT P Form 4b Connection Cover, 4-6 Modules
LVS04954
Schneider Electric

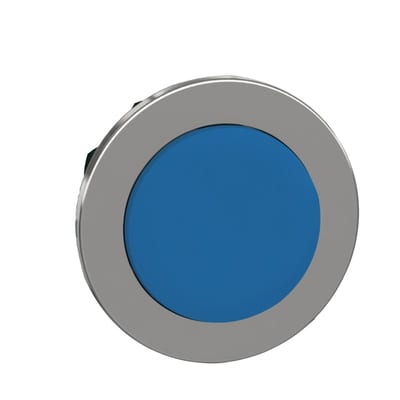

Push-button, flush, blue, raised (ZB4FH6)
Schneider Electric

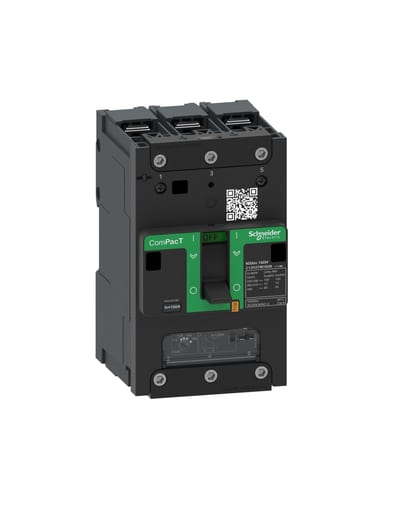

Schneider Electric Circuit breaker, ComPacT NSXm 63N, 50KA/415VAC, 3 poles, TMD trip unit 40A, lugs/busbars C11N3TM040B
Schneider Electric

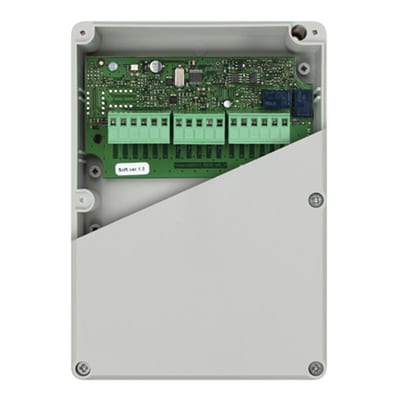

Esmi Impresia I/O Module with 2 Inputs and 2 Outputs
FFS06741007
Schneider Electric

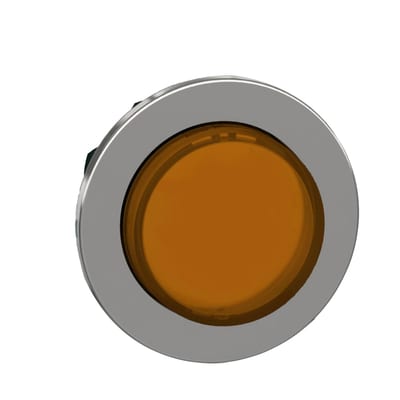

Push-button, flush, for LED, orange, raised
