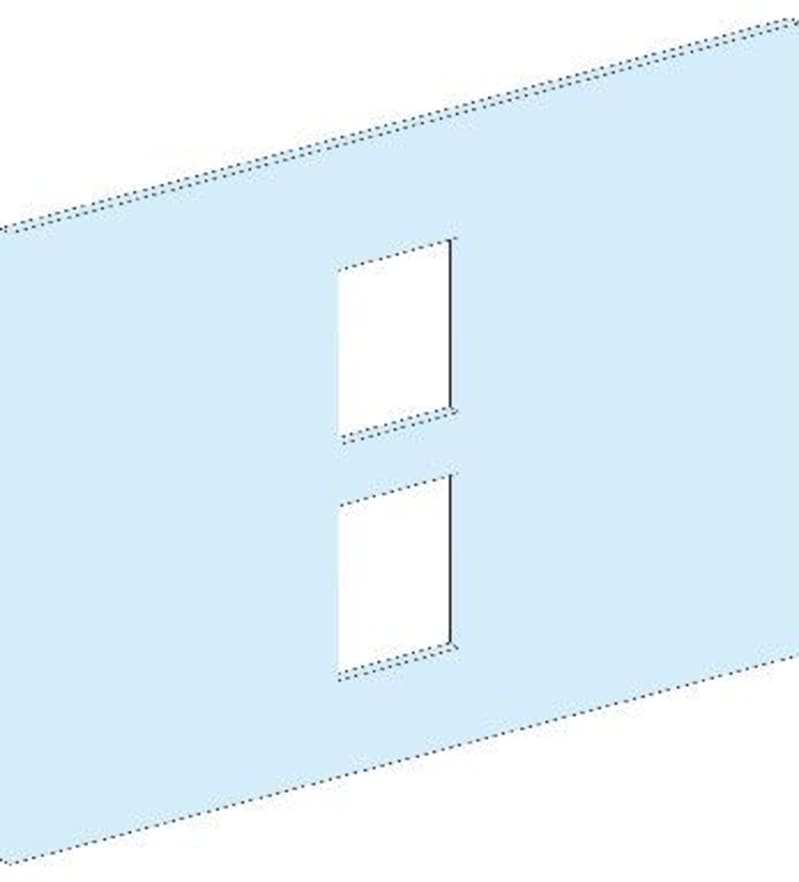

Front plate NSX250 Aut.Omk. PrismaSeT P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03616 Front plate NSX100-250 for AutomatiskOmkobler-horizontal mounting-PrismaSeT P-650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03616
- EAN / GTIN
- 3606481866073
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- Source changeover: fixed NSX100...250 source changeover - control: remote control - horizontal installation
- Poles description
- 2 x 3P: mounting plate support: NSX100...250 source changeover horizontal installation; 2 x 4P: mounting plate support: NSX100...250 source changeover horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 8
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 400 mm
- Product weight
- 1.56 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle source changeover NSX100...250 source changeover fixed remote control horizontal 3P 2 direct 8; 650 mm 400 mm PrismaSeT P cubicle source changeover NSX100...250 source changeover fixed remote control horizontal 4P 2 direct 8
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 8
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481866073
- SAP 1200546711
- Code 82880401
Product Documentation
