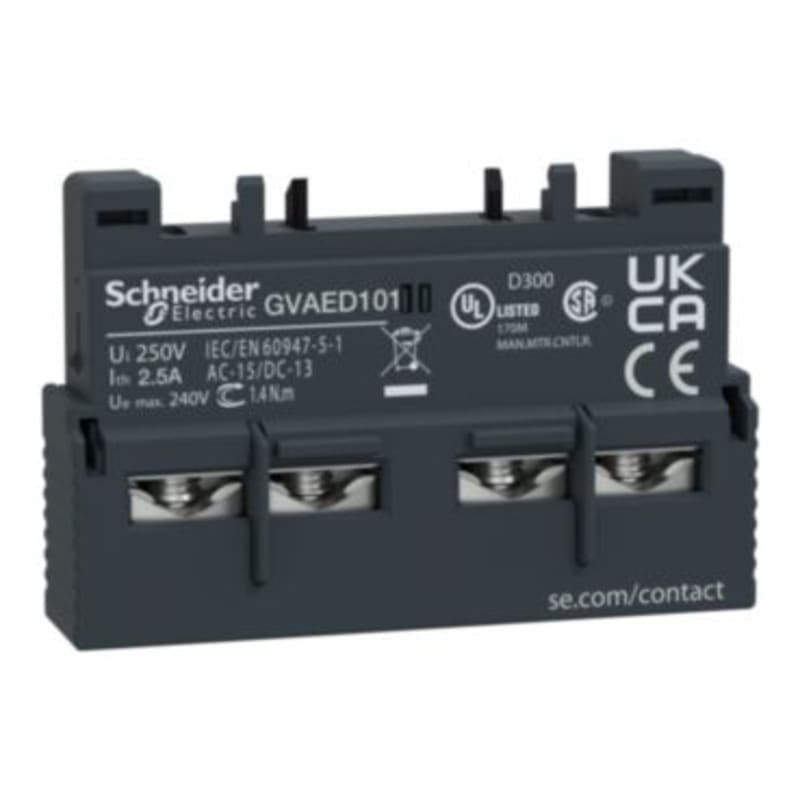

Schneider Electric TeSys GV3 - auxiliary contact block - 2 NO GVAED101
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric GVAED101 Frontmont.Br.FeilsignNO+NO.
Technical Specifications
- Manufacturer part number (MPN)
- GVAED101 EAN / GTIN: 3389119405478 Sales unit: pcs Package quantity: 10 pcs Range: TeSys; TeSys Deca Device short name: GVAED Product or component type: Auxiliary contact block Product compatibility: GV3P; GV3L Mounting location: Front side Auxiliary contacts operation: Fault signal 1 NO Pole contact composition: 2 NO Quantity per set: Set of 1 [Ui] rated insulation voltage: 600 V conforming to UL 508; 690 V conforming to IEC 60947-1; 600 V conforming to CSA C22.2 No 14 [Ue] rated operational voltage: 24...240 V AC; 24...60 V DC [Ith] conventional free air thermal current: 2.5 A Mechanical durability: 100000 cycles minimum switching current: 5 mA minimum switching voltage: 17 V Protection type: GB2CB... circuit breaker; GG fuse 10 A Rated operational power in VA: 300 VA at 48 V AC-15 - electrical durability: 100000 cycles; 400 VA at 690 V AC-15 - electrical durability: 100000 cycles; 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles; 500 VA at 500 V AC-15 - electrical durability: 100000 cycles; 650 VA at 440 V AC-15 - electrical durability: 100000 cycles; 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles; 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles Rated operational power in W: 120 W at 240 V DC-13 - electrical durability: 100000 cycles; 140 W at 110 V DC-13 - electrical durability: 100000 cycles; 140 W at 24 V DC-13 - electrical durability: 100000 cycles; 180 W at 60 V DC-13 - electrical durability: 100000 cycles; 240 W at 48 V DC-13 - electrical durability: 100000 cycles Tightening torque: 1.7 N.m screw clamp terminals Height: 11 mm Width: 45 mm Depth: 29 mm Product weight: 0.05 kg Colour: Dark grey Environmental characteristic: Normal environment Standards: EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ Product certifications: CB Scheme; CE; UKCA; CCC; cULus; EAC Number of Units in Package 1: 1 Number of Units in Package 2: 10 Number of Units in Package 3: 260 Country of origin: CZ Warranty (in months): 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389119405478
- SAP 1000028810
- Code 8257088
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 115V AC 50/60Hz coil, screw clamp terminals LC1D18FE7
Schneider Electric
Schneider Electric PrismaSeT P Form 4b Connection Cover, 4-6 Modules
LVS04954
Schneider Electric
Push-button, flush, blue, raised (ZB4FH6)
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63N, 50KA/415VAC, 3 poles, TMD trip unit 40A, lugs/busbars C11N3TM040B
Schneider Electric
Esmi Impresia I/O Module with 2 Inputs and 2 Outputs
FFS06741007
Schneider Electric
Push-button, flush, for LED, orange, raised
ZB4FH53
Schneider Electric
Front plate NSX250 Aut.Omk. PrismaSeT P
LVS03616
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100S AC/DC, 70KA/415VAC, 2 poles, TMD trip unit 30A C10S2TM030
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy GVAED101?
- GVAED101 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is GVAED101.
- What is the HS code for GVAED101?
- The customs tariff (HS) code for GVAED101 is 8538.90.
- Who manufactures GVAED101?
- GVAED101 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for GVAED101?
- Yes — the GVAED101 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for GVAED101?
- The minimum order quantity is 1.
- Is GVAED101 available?
- Yes — GVAED101 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
