Push-button, flush, blue, raised (ZB4FH6)

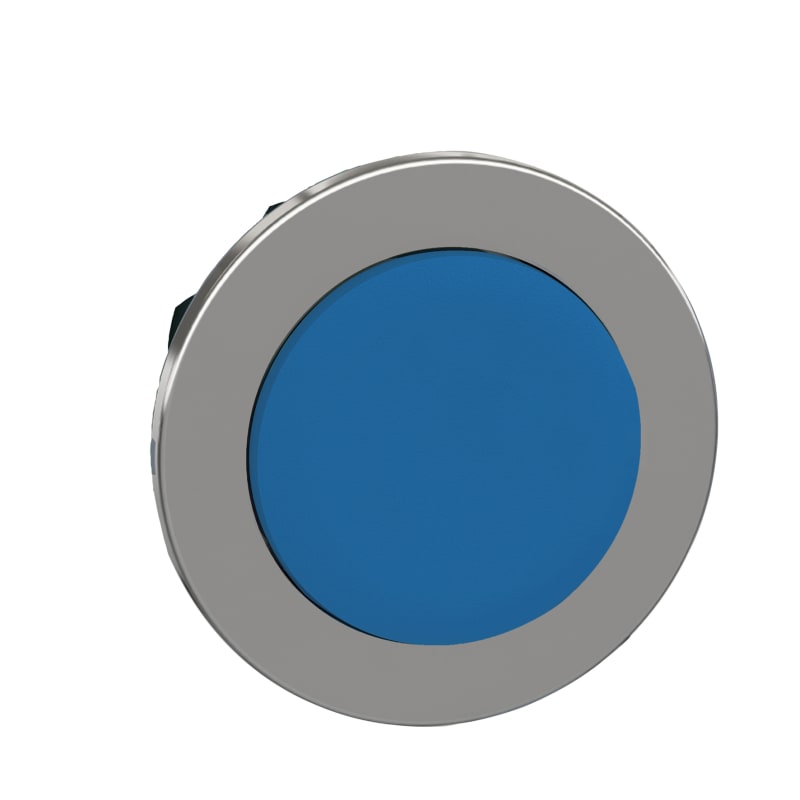

Schneider Electric ZB4FH6 Push-Button Head flush with pressure/pressure and raised push surface in blue colour.

Manufacturer part number (MPN)

ZB4FH6

EAN / GTIN

3606489581763

Sales unit

pcs

Range of product

Harmony XB4

Product or component type

Head for non-illuminated push-button

Device short name

ZB4F

Bezel material

Chromium plated metal

Mounting diameter

30.5 mm

Sale per indivisible quantity

1

Head type

Built-in-flush

Shape of signaling unit head

Round

Type of operator

push-push

Operator profile

Blue projecting, unmarked

Cap/operator or lens colour

Blue

CAD overall width

36.6 mm

CAD overall height

36.6 mm

CAD overall depth

33 mm

Mechanical durability

500000 cycles

Electrical composition code

C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; C9 for <3 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50E; Type 12 conforming to UL 50E; Type 4 conforming to UL 50E; Type 4X conforming to UL 50E

IK degree of protection

IK06 conforming to IEC 50102

Standards

CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; UL 508; IEC 60947-1; JIS C8201-5-1; CE; JIS C8201-1

Product certifications

UL listed; CSA; CCC; EAC

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.3 cm

Package 1 Width

5.2 cm

Package 1 Length

5.5 cm

Package 1 Weight

58.0 g

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50

• EAN 3606489581763
• SAP 1200241636
• Code 82222041
