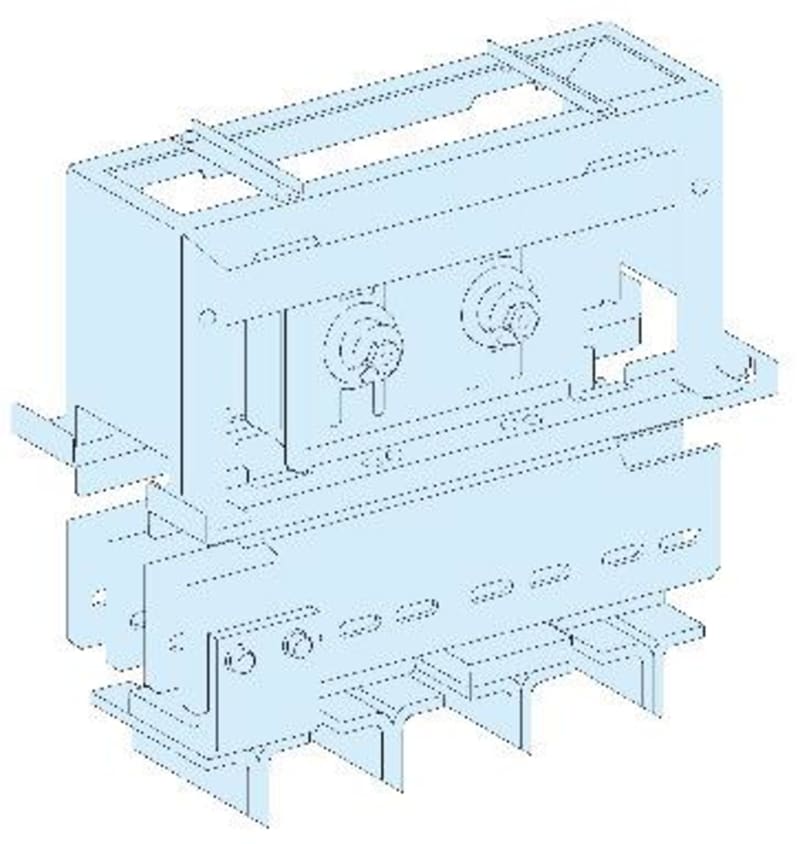

Canalis CONNECTION-1600A MTZ2 4P Prisma
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04716 Canalis connection-1600A MTZ2 4P for PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04716
- EAN / GTIN
- 3606481868183
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Interface and connection Canalis
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Interface accessory
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Cubicle-device connection
- KT with Canalis
- Poles description
- 4P
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 600 mm: front; 600 + 400 mm: rear
- Installed device
- Masterpact: drawout NW08...16 - control: toggle vertical installation; Masterpact: fixed NW08...16 - control: toggle vertical installation
- [Ie] rated operational current
- 1600 A
- Colour
- Natural
- Height
- 350 mm
- Width
- 575 mm
- Depth
- 420 mm
- Product weight
- 49.9 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 front connection on Canalis 27; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 rear connection on Canalis 17; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 front connection on Canalis 27; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 rear connection on Canalis 16
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481868183
- SAP 1200547037
- Code 82880225
Product Documentation
More from Schneider Electric
Schneider Electric

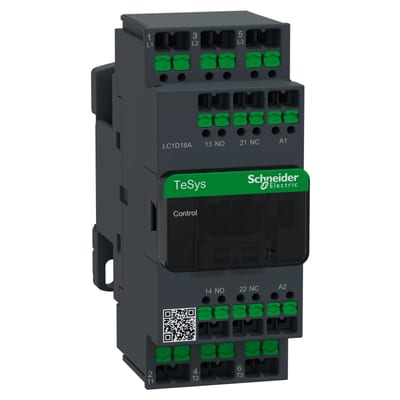

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 120V AC 50/60Hz coil, snap-in terminals LC1D18AG7
Schneider Electric

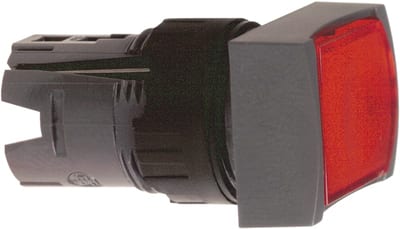

Schneider Electric ZB6DW4 Harmony XB6 Illuminated Push-Button Head, Rectangular Red
Schneider Electric

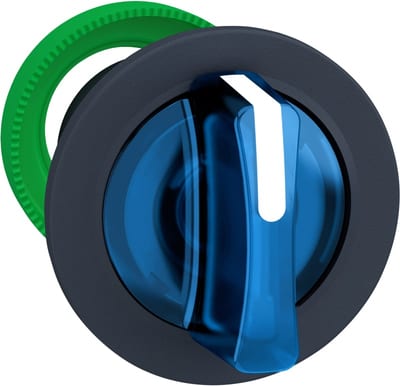

Selector switch flush for LED 3 pos blue (ZB5FK1563)
Schneider Electric
Schneider Electric standard motor mechanism module (MCH), drawout ComPact NS630B to NS1600, 100/130 VDC
33832
Schneider Electric

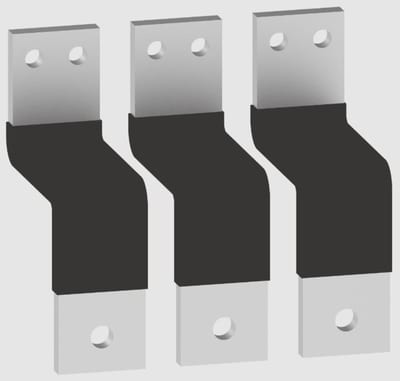

Cablemineforleng G630-800 MCCB
LA9G3113
Schneider Electric

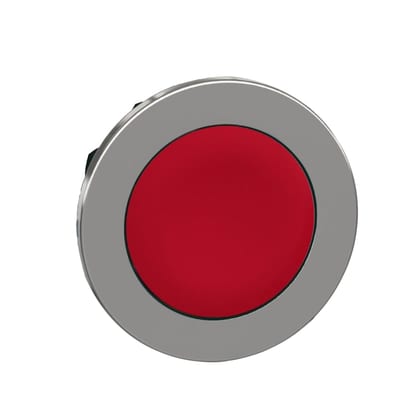

Schneider Electric Flush mounted push button head, Harmony XB4, metal, red, 30mm, spring return, unmarked ZB4FA4
Schneider Electric

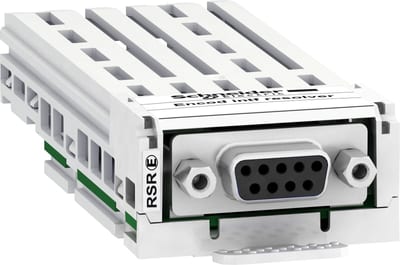

Schneider Electric resolver interface module VW3A3423
Schneider Electric

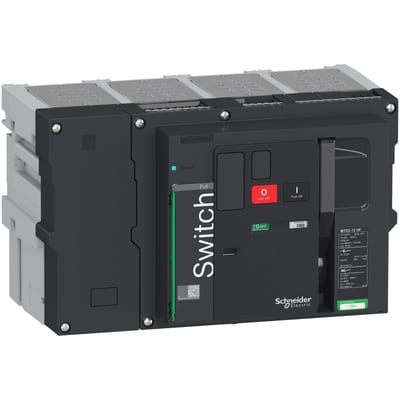

Schneider Electric switch disconnector Masterpact MTZ2 12 HF, 1250 A, 4 poles, drawout LV848271
