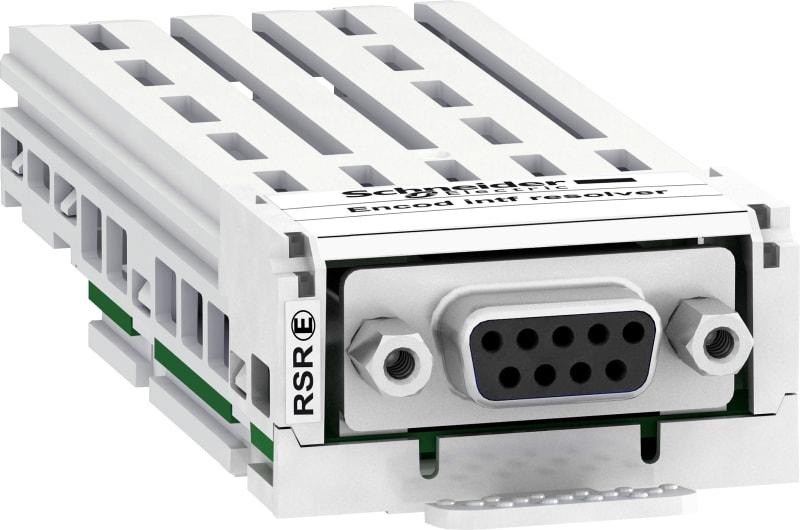

Schneider Electric resolver interface module VW3A3423
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A3423 Resolver encoder module.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A3423
- EAN / GTIN
- 3606485441276
- Sales unit
- pcs
- Range of product
- Altivar
- Product or component type
- Encoder interface module
- Range compatibility
- Altivar Process ATV900; Altivar Process Modular; Altivar Machine ATV340
- Encoder type
- Resolver
- Maximum supply current
- 0.05 A
- Protection type
- Overload protection; Short-circuit protection
- Maximum cable distance between devices
- 100 m
- Maximum operating frequency
- 12 kHz
- Input signal
- Its+, Its-, Cos+, Cos-, Temp+, Temp-
- Output signal
- Ref+, Ref-
- Ratio
- 3/10, 1/2, 3/4, 1
- Connector type
- 1 female SUB-D 9
- Product weight
- 0.15 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.0 cm
- Package 1 Width
- 13.0 cm
- Package 1 Length
- 19.0 cm
- Package 1 Weight
- 157.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 16
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 3.21 kg
- Country of origin
- ID
- Warranty (in months)
- 18
- Type of accessory/spare part
- Encoder input module
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3606485441276
- SAP 1200020026
- Code 81392200
