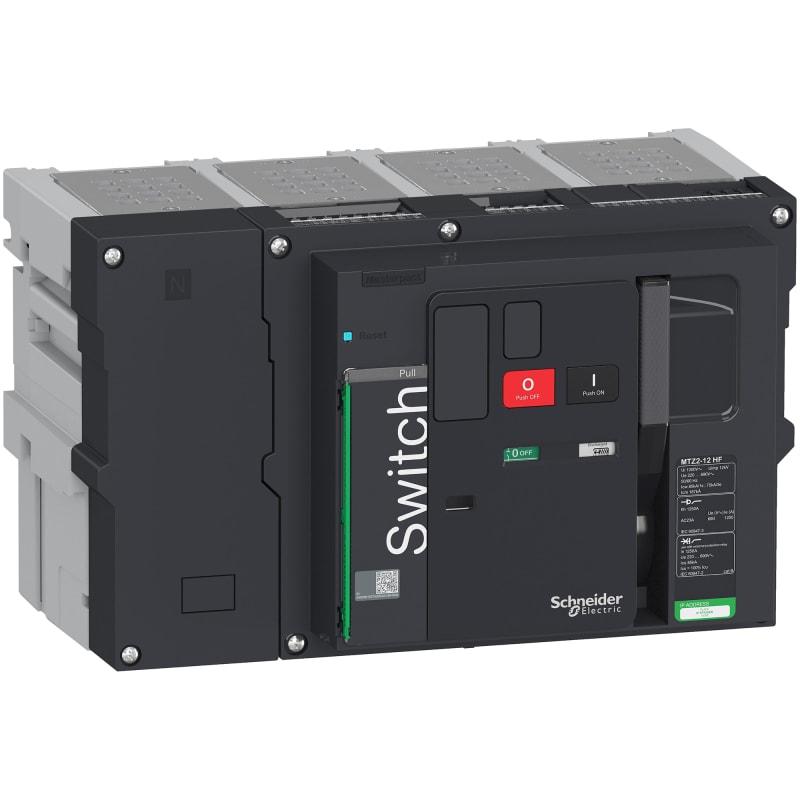

Schneider Electric switch disconnector Masterpact MTZ2 12 HF, 1250 A, 4 poles, drawout LV848271
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV848271 Load-break switch Masterpact MTZ2 12HF 1250A 4p withdrawable without pocket and connections.
Technical Specifications
- Manufacturer part number (MPN)
- LV848271
- EAN / GTIN
- 3606480819254
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- MasterPact
- Product or component type
- Switch disconnector
- Device application
- Distribution
- Switch-disconnector name
- MasterPact MTZ2 12 HF
- Poles description
- 4P
- Neutral position
- Left
- Network type
- AC
- Network frequency
- 50/60 Hz
- Control type
- Push-button
- mounting mode
- Drawout
- Mounting support
- Chassis
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Ie] rated operational current
- 1250 A AC 50/60 Hz 690 V
- [Ui] rated insulation voltage
- 1000 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Uimp] rated impulse withstand voltage
- 12 kV conforming to EN/IEC 60947-3
- [Icw] rated short-time withstand current
- 50 kA during 3 s conforming to EN/IEC 60947-3; 85 kA during 1 s conforming to EN/IEC 60947-3
- [Icm] rated short-circuit making capacity
- 187 kA peak 220...690 V AC at 50/60 Hz
- Utilisation category
- AC-23A; AC-3
- performance level
- HF
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Contact position indicator
- Yes
- Visible break
- No
- Mechanical durability
- 25000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
- Electrical durability
- AC-23A: 10000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-23A: 10000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- Connection pitch
- 115 mm
- Height
- 439 mm
- Width
- 556 mm
- Depth
- 403 mm
- Product weight
- 120 kg
- Standards
- EN/IEC 60947-3
- Product certifications
- IECEE CB Scheme
- IP degree of protection
- IP30
- Pollution degree
- 3 conforming to EN/IEC 60947-4-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480819254
- SAP 1200498211
- Code 82621611
Product Documentation
More from Schneider Electric
Schneider Electric

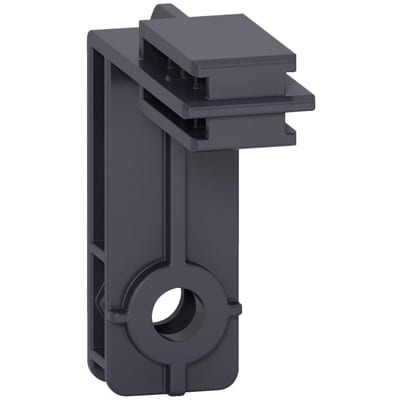

Smartlink Mounting Kit for Plate
A9XMBP02
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100R, 200KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 50A C10R4TM050
Schneider Electric
Schneider Electric AR106V Filter AR8472
Schneider Electric

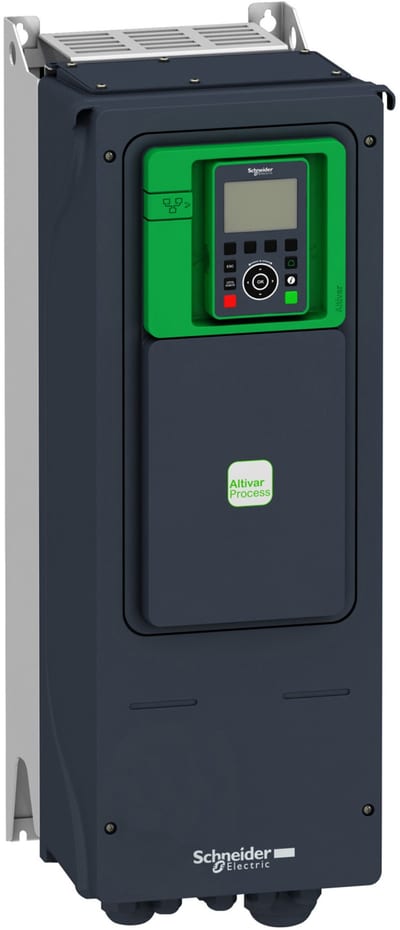

Schneider Electric variable speed drive, Altivar Process ATV900, ATV950, 1.5kW, 400 to 480V, with braking unit, IP55 ATV950U15N4
Schneider Electric

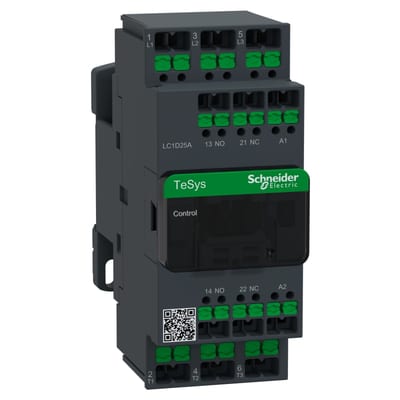

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 415V AC 50/60Hz coil, snap-in terminals LC1D25AN7
Schneider Electric

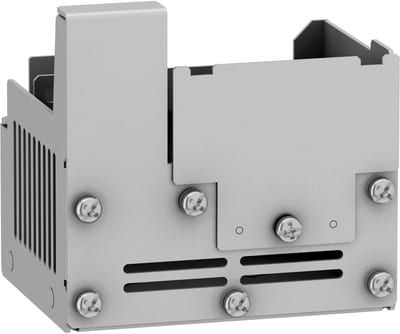

UL Type 1 kit for ATV320 C (VW3A95813)
Schneider Electric

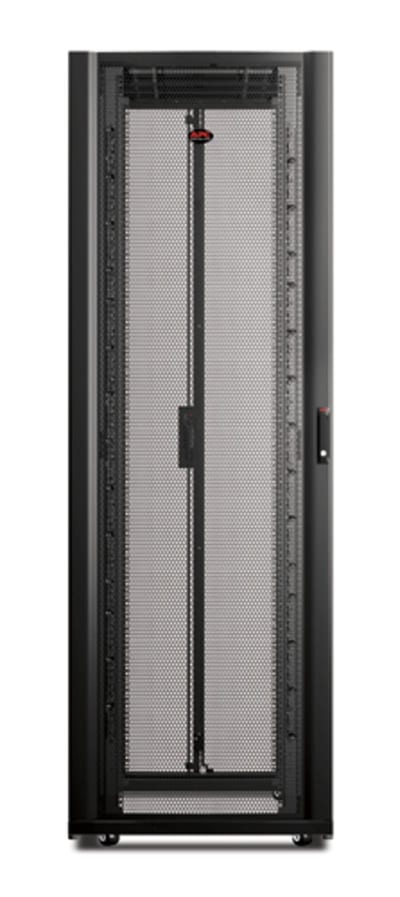

Schneider Electric APC NetShelter SX, Networking Rack Enclosure, 48U, Black, 2258H x 750W x 1200D mm AR3347
