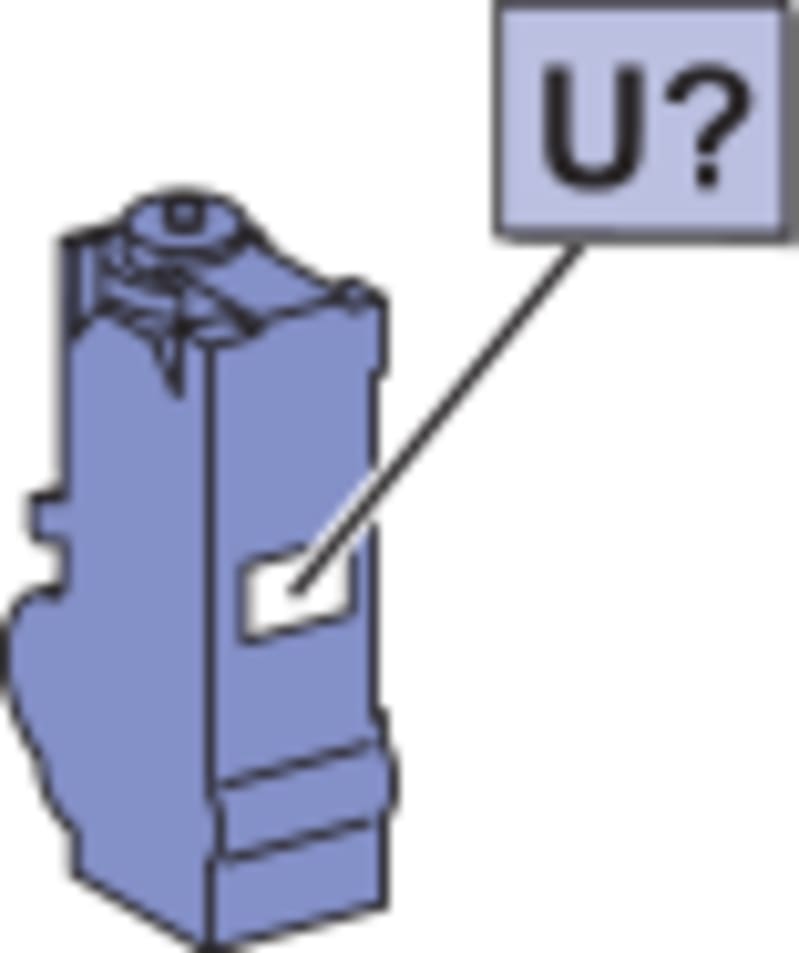

Schneider Electric standard motor mechanism module (MCH), drawout ComPact NS630B to NS1600, 100/130 VDC
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 33832 Motor operator 100/130V DC For.
Technical Specifications
- Manufacturer part number (MPN)
- 33832
- EAN / GTIN
- 3303430338321
- Sales unit
- pcs
- Device short name
- MCH
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NS630b...1600 circuit breaker
- Control type
- Standard
- [Uc] control circuit voltage
- 100...130 V DC
- circuit breaker mounting mode
- Drawout
- circuit breaker frame rated current
- 630 A; 1600 A; 1250 A; 1000 A; 800 A
- Control signal type
- Impulse; Maintained
- circuit breaker response time
- 60 ms +/- 10 ms open; 60 ms +/- 10 ms closed
- Maximum operating frequency
- <= 3 cycles per minute
- Maximum power consumption in VA
- 180 VA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.0 cm
- Package 1 Width
- 18.0 cm
- Package 1 Length
- 12.5 cm
- Package 1 Weight
- 1.228 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Rated control supply voltage DC
- 100–130 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3303430338321
- SAP 1200722434
- Code 83837260
Product Documentation
More from Schneider Electric
Schneider Electric
Cablemineforleng G630-800 MCCB
LA9G3113
Schneider Electric
Schneider Electric Flush mounted push button head, Harmony XB4, metal, red, 30mm, spring return, unmarked ZB4FA4
Schneider Electric
Schneider Electric resolver interface module VW3A3423
Schneider Electric
Schneider Electric switch disconnector Masterpact MTZ2 12 HF, 1250 A, 4 poles, drawout LV848271
Schneider Electric
Smartlink Mounting Kit for Plate
A9XMBP02
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100R, 200KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 50A C10R4TM050
Schneider Electric
Schneider Electric AR106V Filter AR8472
Schneider Electric
Schneider Electric variable speed drive, Altivar Process ATV900, ATV950, 1.5kW, 400 to 480V, with braking unit, IP55 ATV950U15N4
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 33832?
- 33832 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 33832.
- What is the HS code for 33832?
- The customs tariff (HS) code for 33832 is 8536.50.
- Who manufactures 33832?
- 33832 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 33832?
- Yes — the 33832 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 33832?
- The minimum order quantity is 1.
- Is 33832 available?
- Yes — 33832 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
