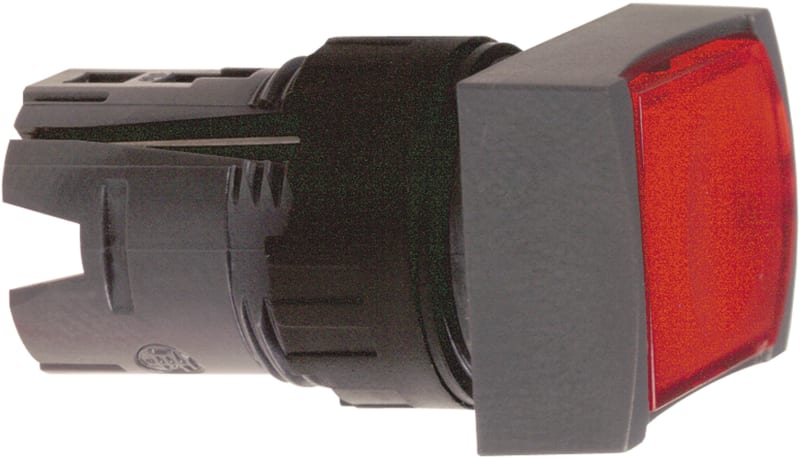

Schneider Electric ZB6DW4 Harmony XB6 Illuminated Push-Button Head, Rectangular Red

Schneider Electric ZB6DW4 is a Harmony XB6 head for illuminated push-buttons in a rectangular red operator, unmarked and spring-return, with a plastic bezel and 16 mm mounting diameter. It is designed for use with an integral LED, protected to IP65 and NEMA 4/4X/13 and rated for operation from -25 to 70 °C.

Manufacturer part number (MPN)

ZB6DW4

EAN / GTIN

3389110776034

Sales unit

pcs

Package quantity

80 pcs

Range of product

Harmony XB6

Product or component type

Head for illuminated push-button

Product compatibility

Integral LED

Device short name

ZB6

Bezel material

Plastic

Mounting diameter

16 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

Red flush, unmarked

CAD overall width

24 mm

CAD overall height

18 mm

CAD overall depth

33 mm

Product weight

0.016 kg

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

NEMA degree of protection

NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94; NEMA 13 conforming to CSA C22.2 No 94

Standards

EN/IEC 60947-5-5; JIS C8201-5-1; CSA C22.2 No 14; JIS C 852; UL 508; EN/IEC 60947-5-1; EN/IEC 60947-1; JIS C8201-1

Product certifications

CCC; GOST; CSA; UL

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

75

Warranty (in months)

18

Hole diameter

16.2 mm

Colour button

Red

Suitable for lighting

Yes

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Grey

Degree of protection (IP), front side

IP65

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Rectangular

Switching function latching

No

Country of origin

France

HS Code

8538.90
