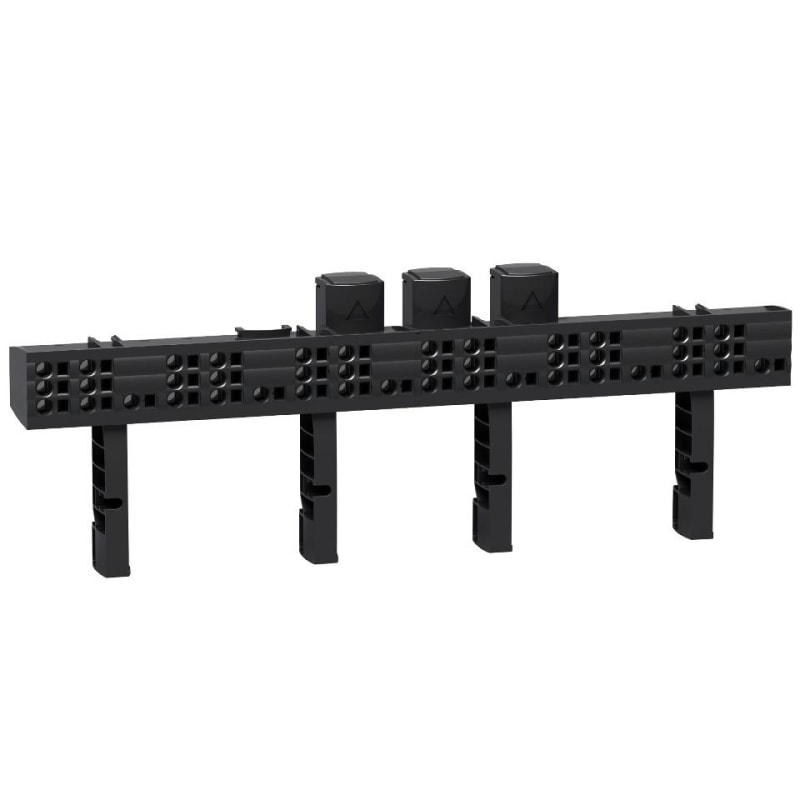

Schneider Electric Distribution blocks, Linergy FM, 200A 3P, 24M, 42HOLES LVS04013

Schneider Electric LVS04013 Fordelingsblokk-Linergy FM(Multiclip)-24 modules-3P-200A-42 hole-PrismaSeT G/P.

Manufacturer part number (MPN)

LVS04013

EAN / GTIN

3606481870827

Sales unit

pcs

Package quantity

5 pcs

Rated current

200 A

Number of poles

3P

Range

Linergy

Range of product

Linergy

Product or component type

Device feeder

Product name

Linergy FM

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma POLAR WHITE enclosure

Product compatibility

Spacial enclosures

IP degree of protection

IPxx B

Mounting support

Plain backplate; DIN rail; Slotted backplate

Installed device

modular device

Poles description

3P

[Ue] rated operational voltage

690 V AC

[Ui] rated insulation voltage

750 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

200 A

[In] rated current

200 A at 40 °C

[Ipk] rated peak withstand current

20 kA

Connections - terminals

Supply: crimped lug70 mm²; Supply: flexible bars, 20 x 3 mm; Distribution: quick-connect terminal strips (phase) , 12 x 4…10 mm² (flexible) ; Distribution: quick-connect terminal strips (phase) , 12 x 4…10 mm² (rigid) ; Distribution: quick-connect terminal strips (neutral) , 18 x 4…10 mm² (flexible) ; Distribution: quick-connect terminal strips (neutral) , 18 x 4…10 mm² (rigid)

9 mm pitches

48

Total number of 18 mm modules

24

Product weight

1.32 kg

Colour

Anthracite grey (RAL 7016)

Standards

IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure; IEC 60947-7-1

Product certifications

ASTA

Warranty (in months)

18

Core cross section

10 mm²

With seal head

No

Country of origin

Poland

HS Code

8536.90

• EAN 3606481870827
• SAP 1200546782
• Code 82880442
